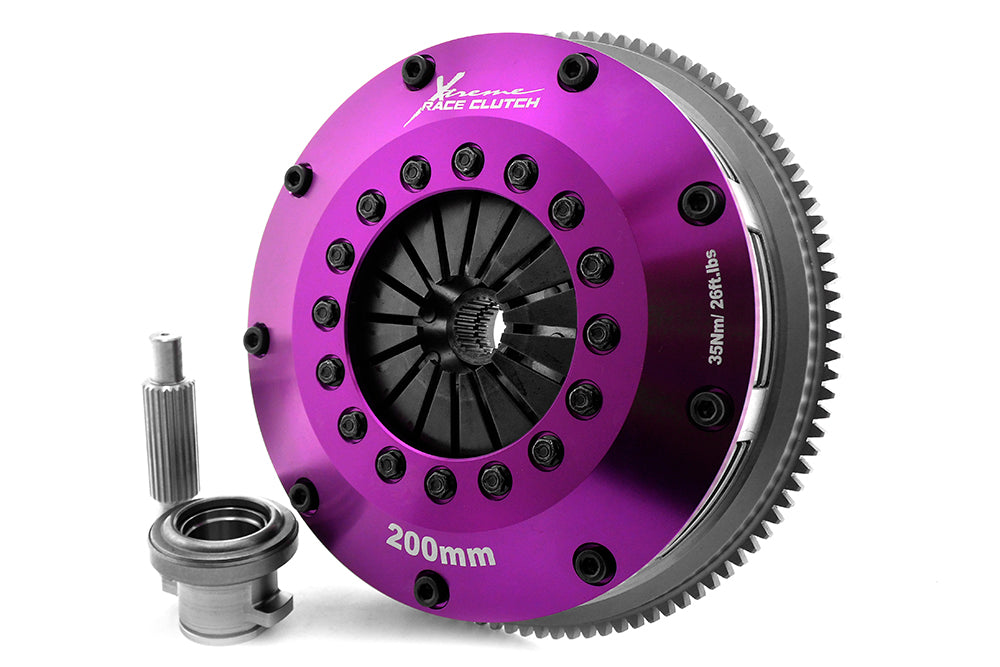

Xtreme Performance SR20DET 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm KNI20521-2E
Xtreme Motorsport 200mm twin plate
*PLEASE NOTE: THIS CLUTCH IS A SPECIAL ORDER ITEM. LEAD TIMES ARE USUALLY ONE WEEK, BUT PLEASE CONTACT US FOR CONFIRMATION*
Rebuild kits are available.
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.
The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
-
Clutch Disc Diameter (mm)200
-
Clutch Disc Spline Count24
-
Clutch Disc Spline Diameter (mm)25.5
-
Torque (Nm)1200
-
Flywheel Step+2.2mm
-
DesignTwin Plate
-
StageMultiplate - track use only
-
Tech Bulletins
-
Clamp Load1100Kg
-
Recommended forMotorsport
-
Ring Gear Tooth count
-
Additional infotmation
-
Weight [KG]:12.8
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
|
Make
|
Model
|
Year
|
Variant
|
Engine
|
Note
|
Details
|
|---|---|---|---|---|---|---|
| NISSAN | 180SX coupe (S13) | 1991.04-1994.03 | 2.0 Turbo | SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03) | ||
| NISSAN | 180SX coupe (S13) | 1992.01-1997.01 | 2.0 | SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01) | ||
| NISSAN | 200SX coupe (S14) | 1993.10-1999.12 | 2.0 i 16V Turbo | SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12) | ||
| NISSAN | 200SX coupe (S14) | 1994.04-1999.09 | 2.0 Turbo | SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09) | ||
| NISSAN | SILVIA coupe (S13) | 1991.01-1993.09 | 2.0 | SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09) | ||
| NISSAN | SILVIA coupe (S13) | 1991.01-1993.09 | 2.0 | SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09) |
