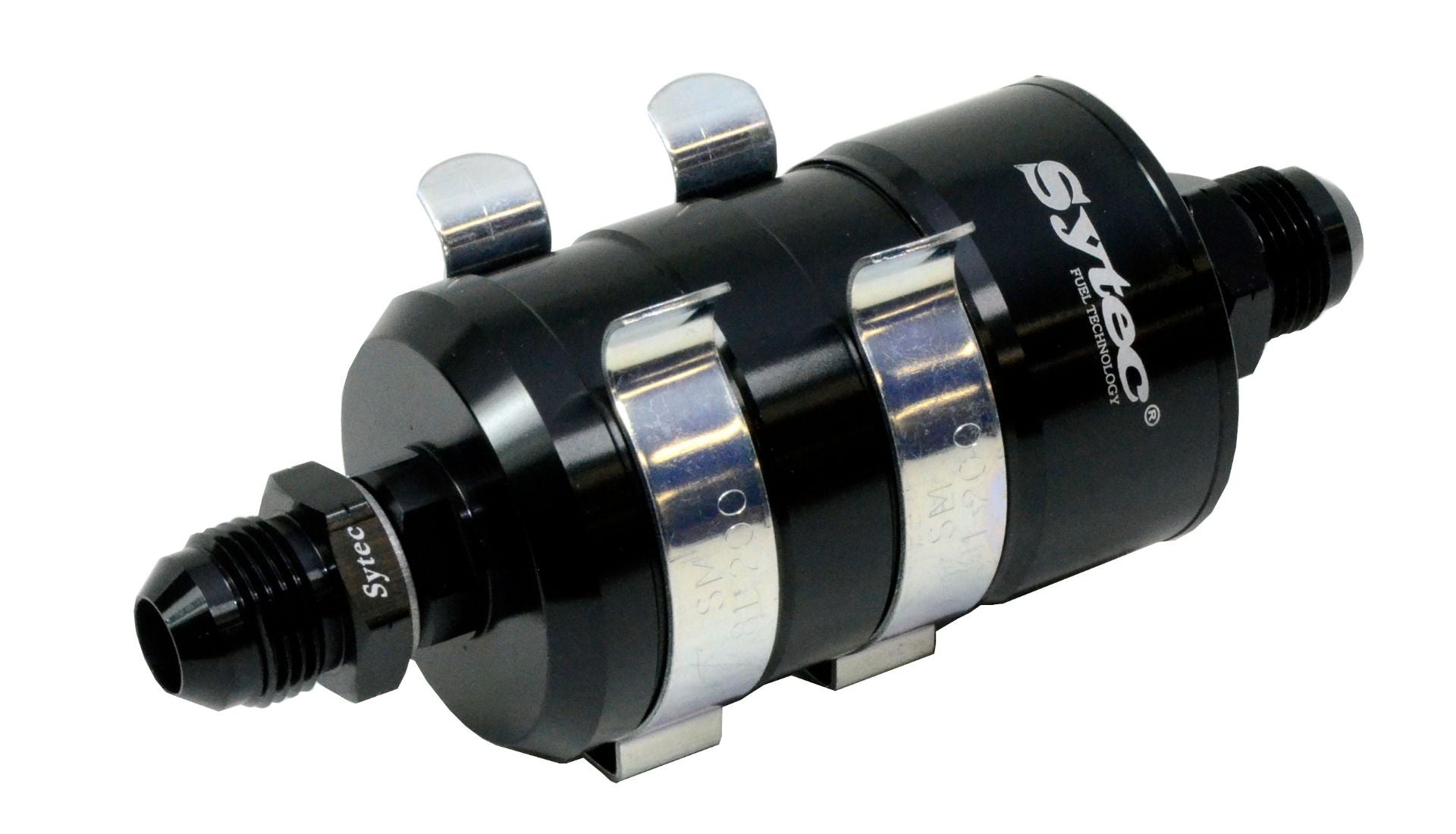

SYTEC Bullet fuel Filter AN8 - AN8 (Black) with mounting clips. 10 Micron Paper Element

SYTEC Bullet Fuel Filter Jic8 - Jic8 (Black)

This kit comes with one filter element fitted.

We carry the replaceable filter for this in stock: Sytec Bullet Filter Paper Element (10 Micron) – Group-D

Sytec High Flow Fuel Filters are designed for in line application. These filters have a flow capacity of 500 Ltr/Hr and are capable of handling up to 10 Bar pressure. These filters are designed for use in either a Pre or Post fuel pump format and in both carburettor (Low Pressure) or fuel injection (High Pressure) fuel systems.

Colours    Black
Body Material:-    Aluminium (Anodised)
Seal Material:-    Viton
Inlet Union Size:-    Jic8
Outlet Union Size:-    Jic8
Main Body Internal Thread:-    14x1.5mm
Filter Material:-    Paper  (10 Micron)
Mounting Clips:-    Yes x 2
Fuel type:-    Petrol E5, E10, Diesel
Flow (Max):-    500 Ltr/hr
Pressure (Max):-    10 Bar
Main Body Dimensions:-    110x50mm
Main Body Weight :-    150 gms
