Twin Bosch 044 Fuel Pump Billet Aluminium Assembly OUTLET Manifold
Please note we now stock these in black or silver, please leave a note when ordering which colour you would prefer.
Twin Bosch 044 Fuel Pump Billet Aluminium Assembly Outlet Manifold In Blue

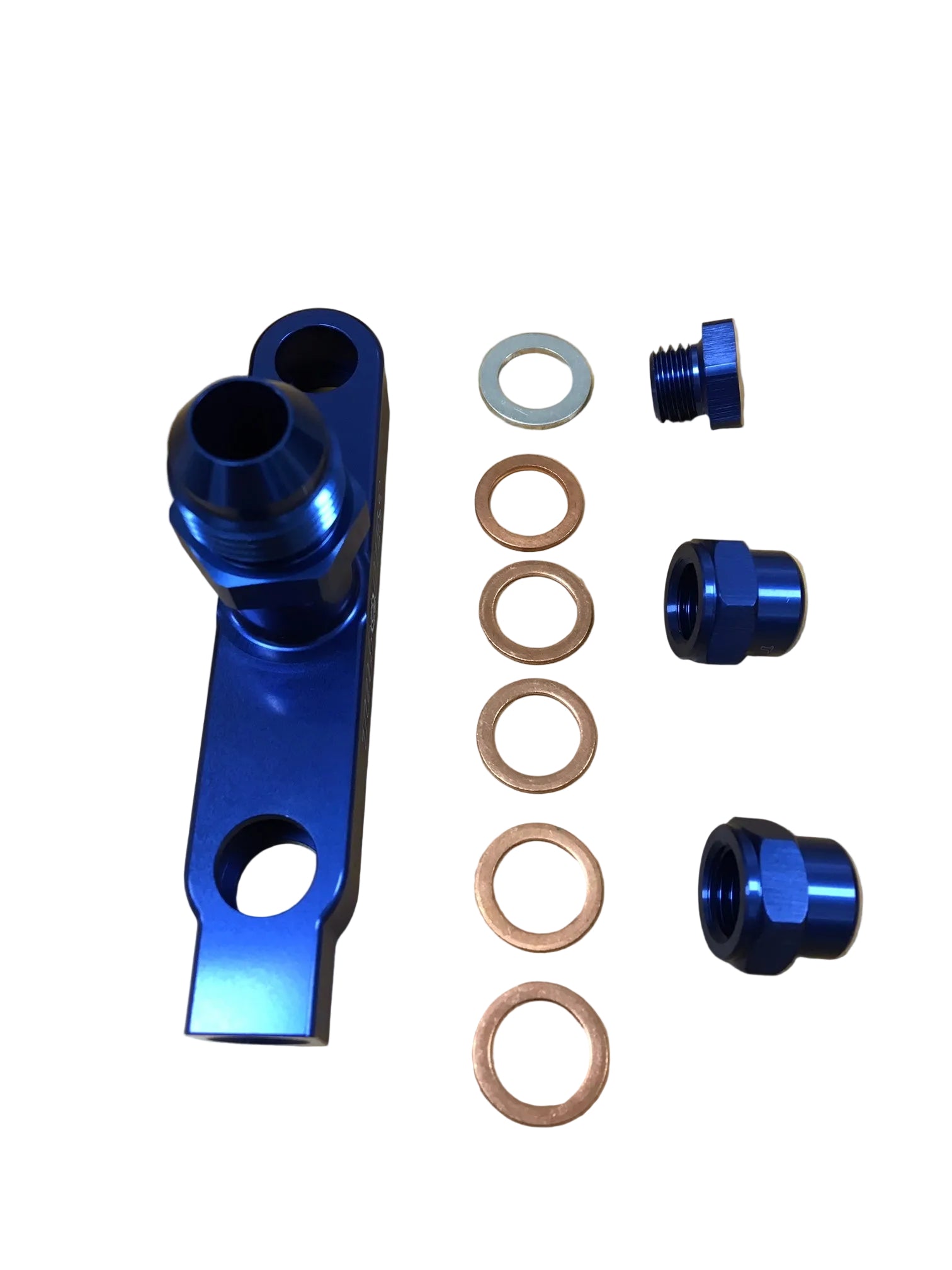

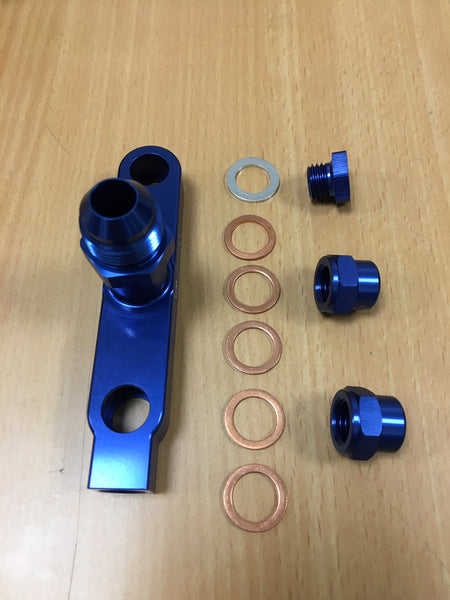

Comes with all the parts shown in the 2nd photo. Outlet manifold, caps and compression washers.
The first photo shows the kit when fitted to 2 x Bosch 044 fuel pumps using a twin cradle (these are not included)
This clever assembly enables two 0580 254 044 pumps to connect together for 1 outlet.
The outputs of which are linked so that they utilise the Bosch check valves. This prevents back flow which damages the pumps and significantly reduces there lifespan.
The manifold outlet can be supplied in AN-6 or AN-8 (other sizes available, please mail us at firstname.lastname@example.org)
The direction of the manifold can be rotated so that it is facing inline, parallel or at 90 degrees to the pumps
For the ideal centre spacing of the pumps one of our twin fuel pump cradles must be used
Manufactured from aluminium 6061-T6 and each component is precision-machined to exact tolerances for trouble-free performance.
AN-12, AN-10, AN-8 or AN-6 Fittings available, AN-10 and AN-12 are special order and may incur a delivery charge.
