Toyota Land Cruiser 100 / Land Cruiser 70 1H-Z Xtreme Outback Heavy Duty Cushioned Ceramic Clutch Kit 700Nm 900Kg (40% inc.)
- Regular price
- €781.32
- Sale price
- €781.32
- Regular price
-
About the Product
Ships from our supplier's EU warehouse – typical delivery about 1 week.
Part number: KTY28013-1C
- Clutch Disc Diameter (mm): 275
- Clutch Disc Spline Count: 21
- Clutch Disc Spline Diameter (mm): 29,8
- Flywheel Step (mm): +0.5
- Torque (Nm): 660
- Clamp Load: 900Kg
- Clamp Load Increase: 40%
- Stage: Stage 2
- Recommended for: Low Speed Trial - Stage 2
- Tech Bulletins: TSB-FW02
- Design: Single Plate Cushioned Ceramic Disc – combines extreme thermal durability with a cushioned segment design for improved driveability and smoother clutch take-off.

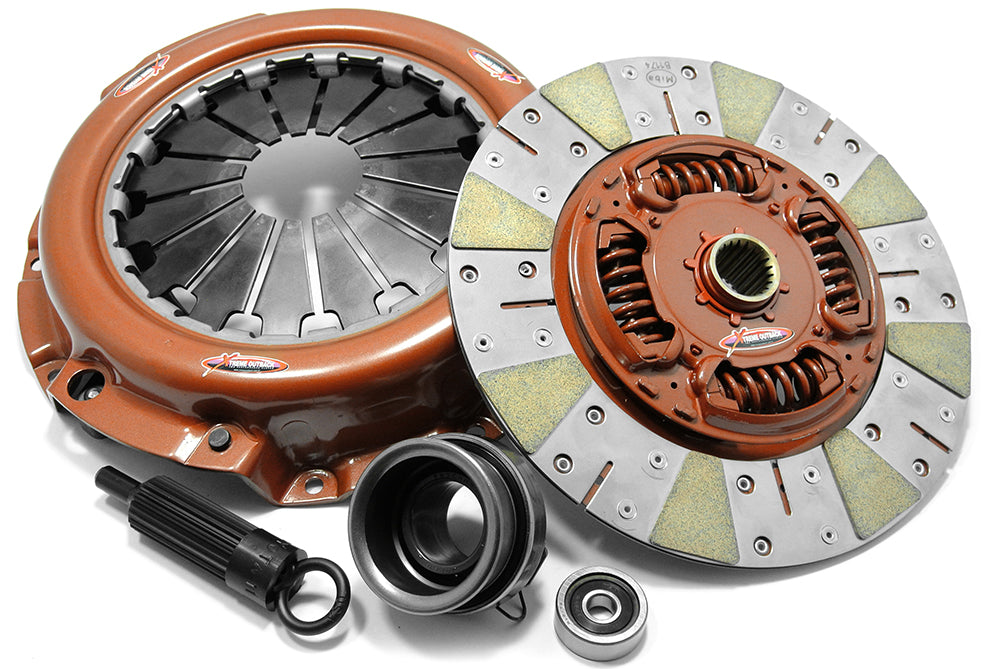

- Kit includes: Pressure plate, Clutch disc, Release bearing, Alignment tool, Spigot bearing
- Flywheel: Not included
Xtreme Outback - Heavy Duty Cushioned Ceramic Kit /-1C
Recommended for: motorsport applications, including long-distance rallies, time trials and low-speed trials conditions, where improved pedal feel and high thermal capacity are both important.
The Xtreme Outback Heavy Duty Clutch Kit (Cushioned Ceramic) has been designed for drivers who need the thermal capacity and durability of a ceramic clutch, while benefiting from improved engagement and better progressiveness. This kit has been specifically developed for demanding motorsport and off-road use, and delivers high torque capacity and consistent performance in high-temperature conditions.
Xtreme Outback ceramic upgrades are designed to offer the ultimate heat resistance for single-plate clutch upgrades, and are ideal for motorsport applications such as long-distance rallies and time trials. The cushioned ceramic design uses a sprung hub (torsional damper) to absorb shock, along with a cushioned disc construction to provide more progressive engagement compared to conventional ceramic options. This makes them particularly well suited to applications where control and pedal feel are as important as thermal performance.
Features:
- 700Nm torque capacity
- Heavy duty pressure plate with 40% increased clamp force (900Kg) for improved holding capacity
- Cushioned ceramic clutch disc for high heat resistance and improved progressiveness
- Sprung hub (torsional damper) to absorb shock
- Designed for motorsport, low-speed trials use and demanding high-temperature applications
- Complete kit including everything you need for a successful installation, including selected accessories
Xtreme Outback
Xtreme Outback clutch kits have been designed and manufactured to withstand some of the harshest conditions in the world, and are the ultimate Heavy Duty 4x4 upgrade for road, off-road and performance applications.
Every Xtreme Outback clutch kit is engineered to deliver the right balance of performance, durability and drivability. Trusted by motorsport teams and armoured vehicle manufacturers around the world, Xtreme Outback clutch kits are built to get you there - and bring you back safely.
What's in the box?
Xtreme Outback upgrade kits are supplied with the essential components required for installation, along with selected accessories that are often recommended for replacement or upgrade while the gearbox is removed from the vehicle.
Vehicle fitment
| Make | Model | Variant | Years | Engine |
|---|---|---|---|---|
| Toyota | Land Cruiser 100 | 4.2 D (HZJ105) | 1998.03-2007.08 | 1H-Z 4164 Diesel 96 kW 131 BHP (1998.03 - 2007.08) |
| Toyota | Land Cruiser 70 | 4.2 D (HZJ70. HZJ73. HZJ75. HZJ77) | 1990.01- | 1H-Z 4164 Diesel 96 kW 131 BHP (1990.01 - ) |
| Toyota | Land Cruiser 70 | 4.2 D 4x4 (HZJ7__V. HZJ75RP. HZJ79R) | 1990.01-2007.02 | 1H-Z 4164 Diesel 96 kW 131 BHP (1990.01 - 2007.02) |
From 09/1999
