T3 to Garrett V Band stainless steel manifold turbocharger flange adapter

€ 115.00 EUR

Manifold flange adapter T3 to Garrett V-Band turbo.

Note: the GT28/GTX28 v band housing is a smaller v band and is not compatible with this flange.

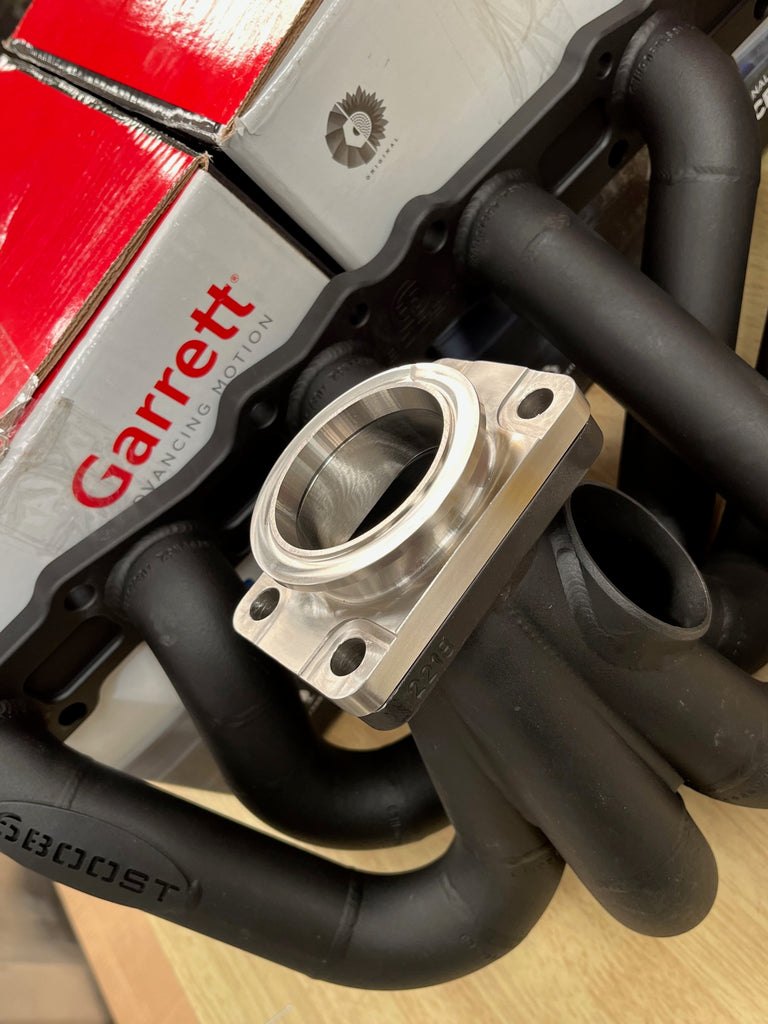

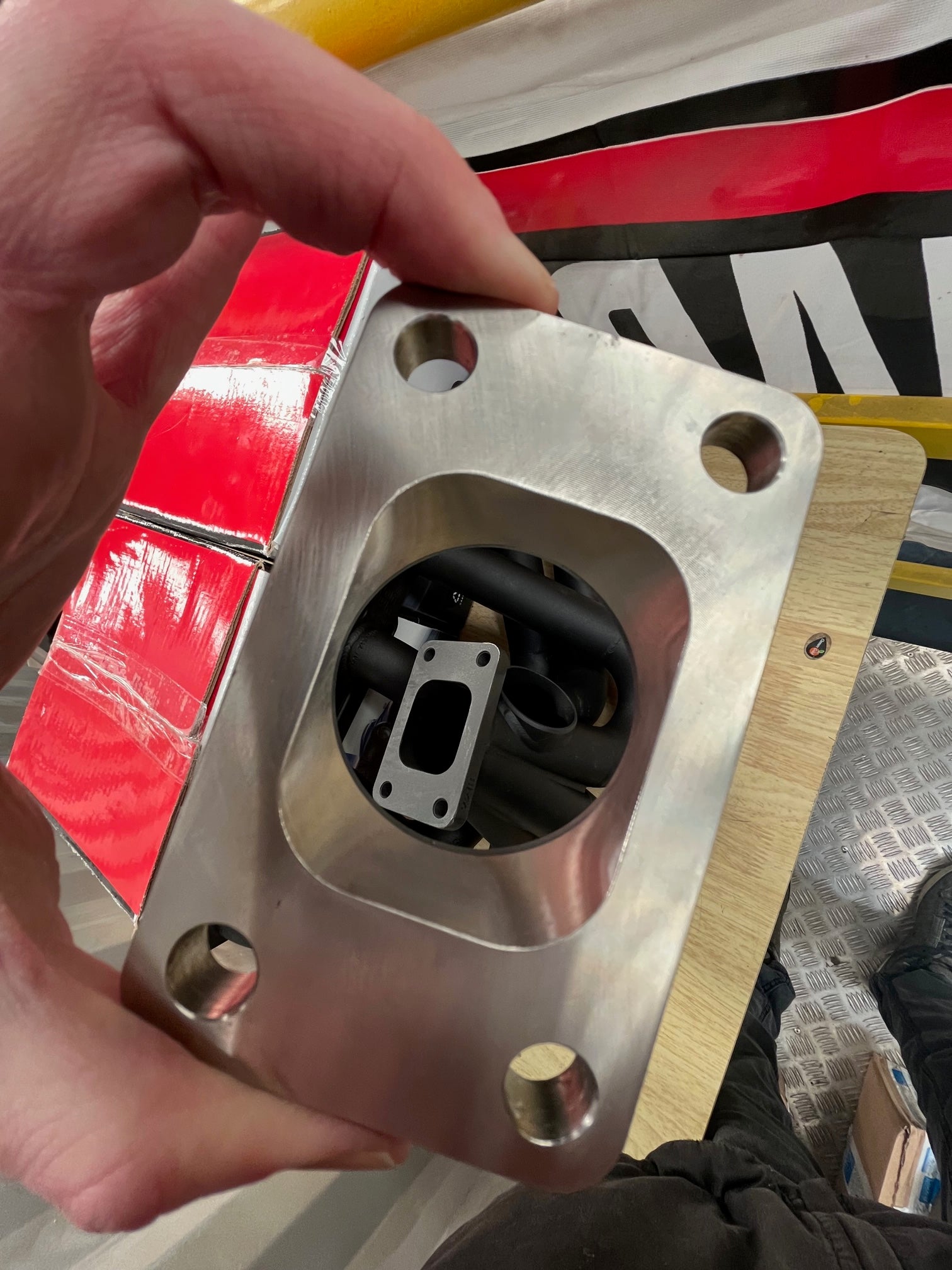

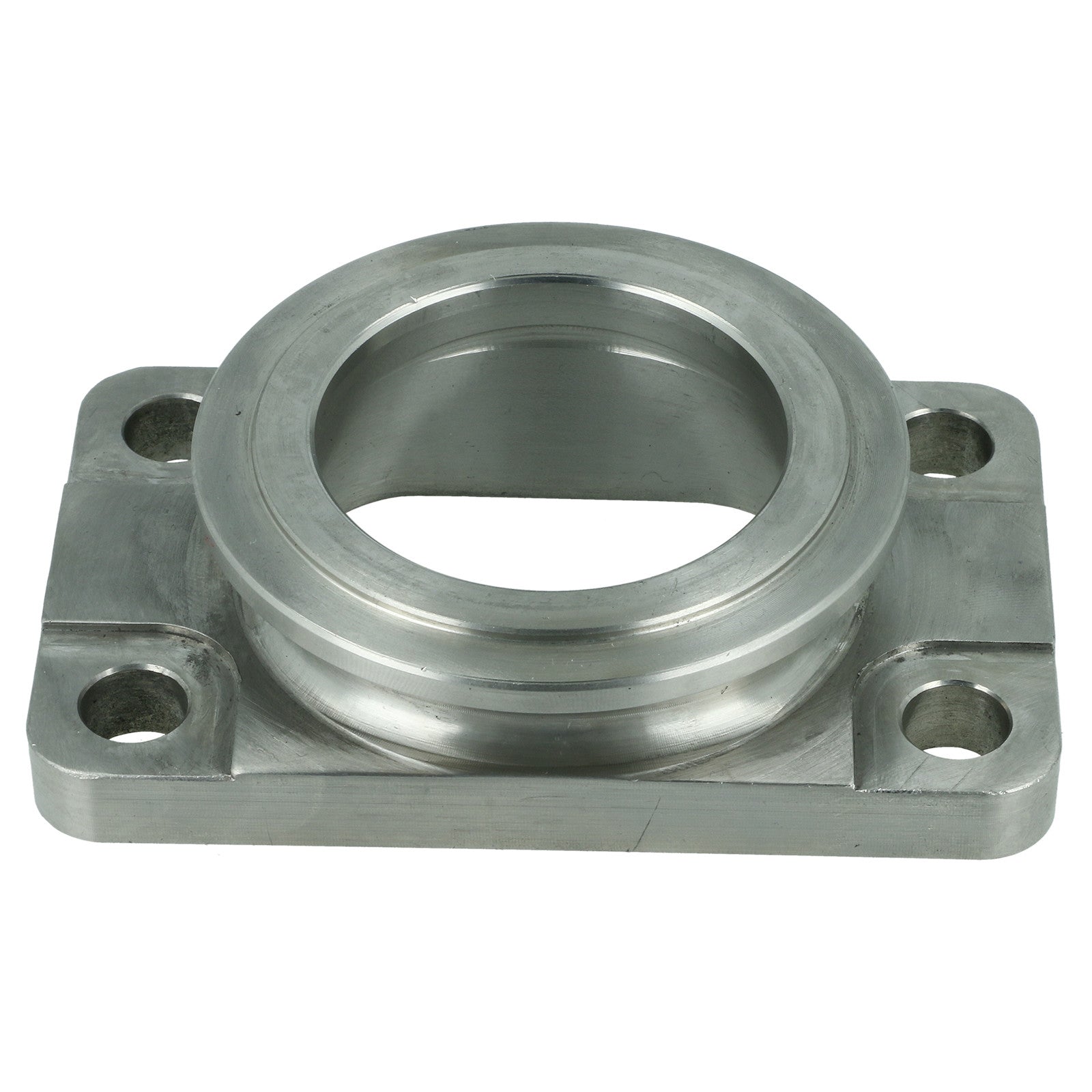

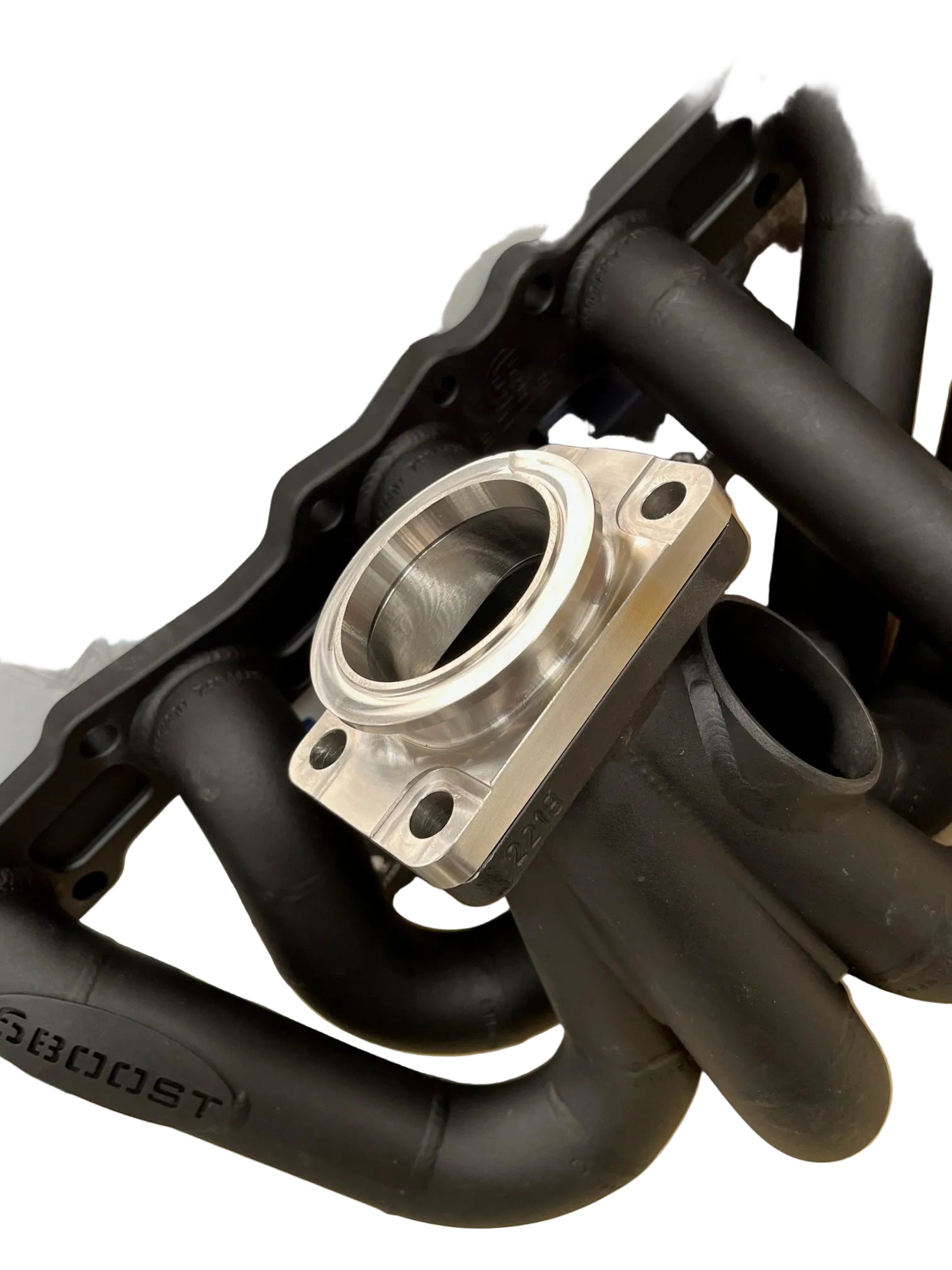

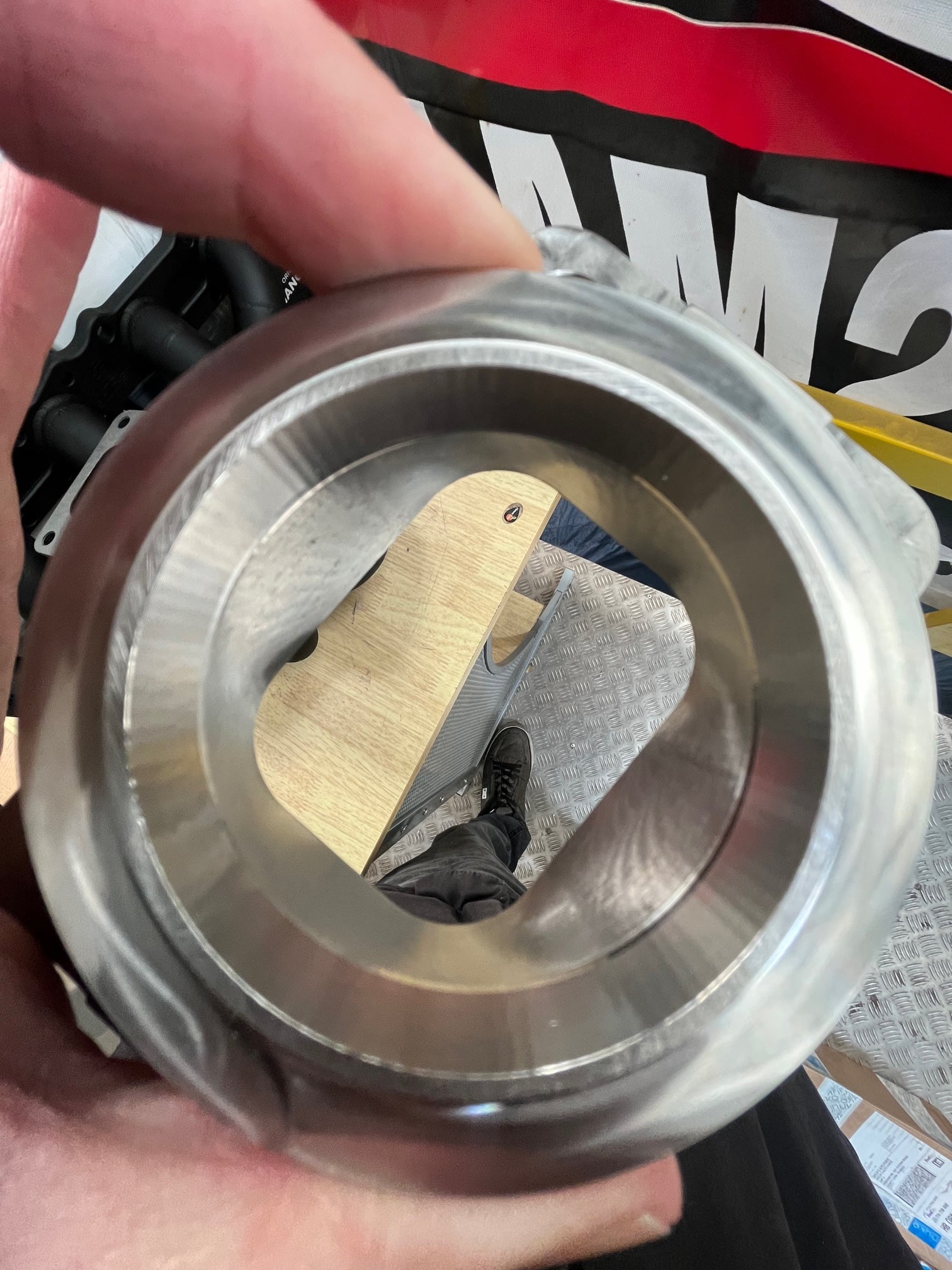

Stainless steel adapter flange for V Band exhaust housing to T3 manifold
High-quality stainless steel turbo flange adapter V-Band turbocharger to T3 manifold
You have a new exhaust housing/turbocharger with V-Band inlet but a turbo manifold with T3 flange? Then here is the solution.

This is a high quality stainless steel adapter flange from T3 manifold flange to V-Band exhaust housing (inlet). The adapter is CNC machined of high premium stainless steel and is therefore extremely heat resistant (1200°C) and thanks to the CNC process very flow-favorable.

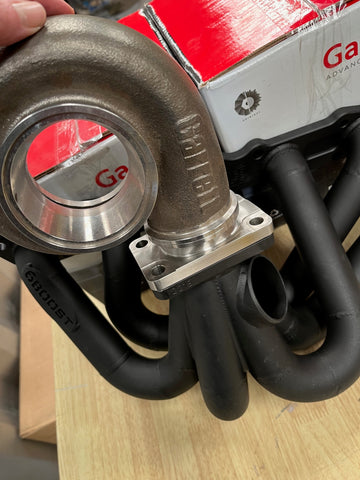

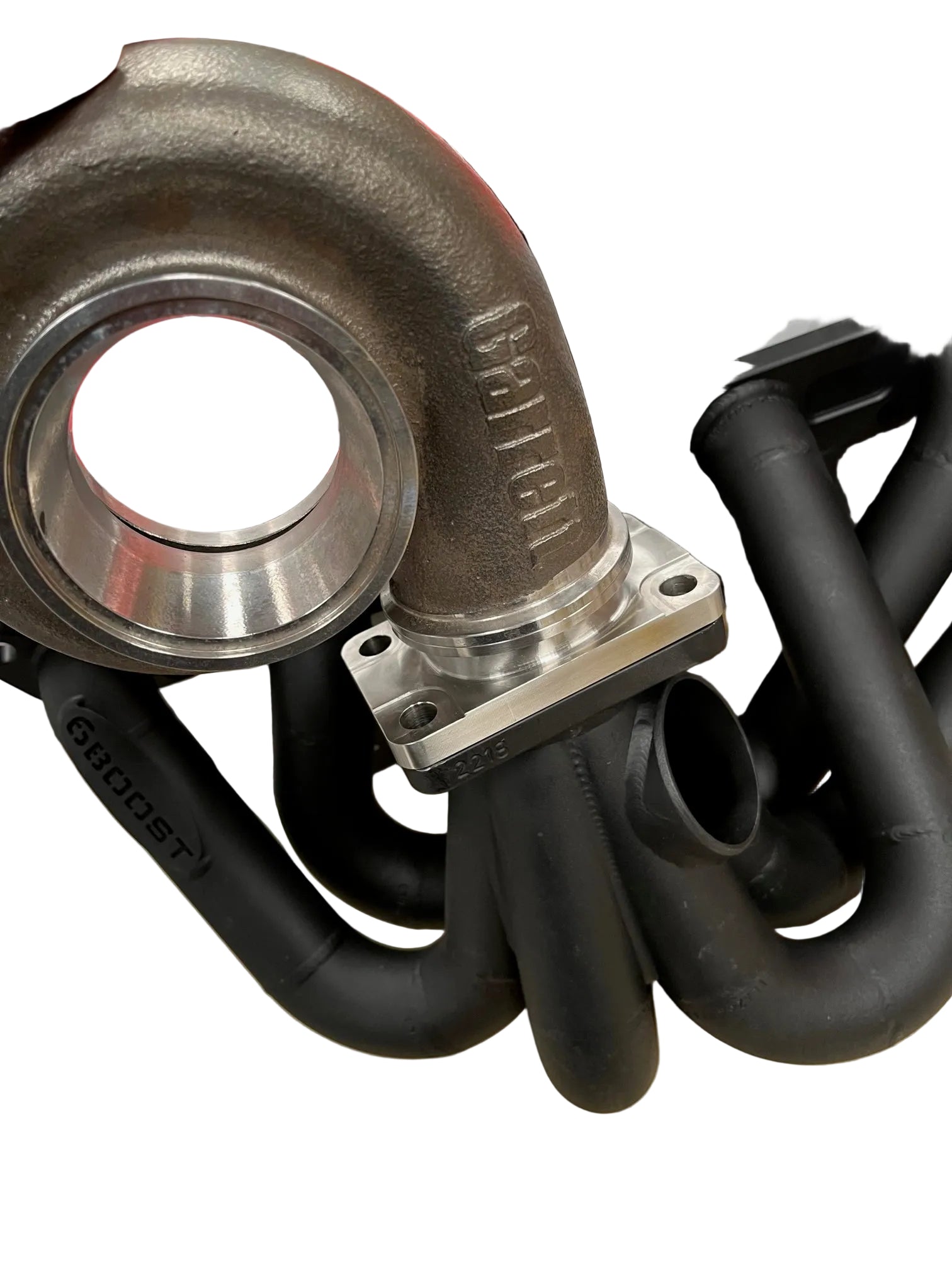

The flange is used to mount a turbocharger with V-band inlet flange on the exhaust housing on a turbo manifold with T3 flange. This makes it very popular with all Garrett GTX29-35 / G25-550 / G25-660 / G30-660 / G30-770 / G30-90 / G25-900 / G35-1050 V-Band exhaust housings.

Material: 1.4841 stainless steel fine casting
Height: 28mm
Flange on turbocharger: V-Band
Flange on turbo manifold: T3

For / Fits:
All turbo manifolds with T3 flange

And all turbochargers exhaust housings with V-band inlet flange on exhaust housing, for example:
Garrett GTX29
Garrett GTX30
Garrett GTX35

Garrett G25-550
Garrett G25-660
Garrett G30-660
Garrett G30-770
Garrett G30-900
Garrett G35-900
Garrett G35-1050
