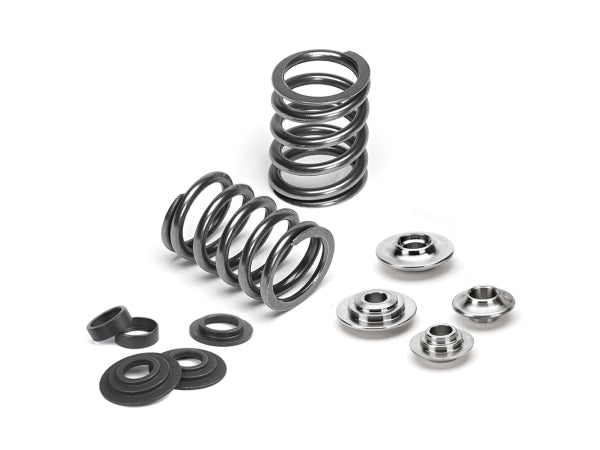

Supertech Valve Spring Kit VW/Audi 1.8L 20v
Delivery may vary depending on European stock levels
If in stock at Group-D delivery will be immediate
Delivery from the European Warehouse will take an extra few days
Product specifications
| Attribute | Value |
|---|---|
| Additional Info | Valve Spring Kit |
| Coil Bind | 19.50 mm |
| GTIN | 01037721241670 |
| Image Info | These images are representative |
| Inside Diameter Inner | 15.50 mm |
| Inside Diameter Outer | 21.90 mm |
| Kit Spring | SPR-A2095 ; SPR-H1002D-AU |
| Kit Spring Qty | 20 |
| Max Lift | 13.70 mm |
| Open Pressure | 200 @11 |
| Outside Diameter Inner | 20.50 mm |
| Outside Diameter Outer | 29.10 mm |
| Package Height | 64,00 mm |
| Package Length | 243,00 mm |
| Package Weight | 962.00 g |
| Package Width | 165,00 mm |
| Retainer | RET-AUVIT2 ; RET-AUVE/T1 |
| Retainer Qty | 20 |
| Seat Locator | SEAT-H1000 |
| Seat Locator Qty | 8 |
| Seat Pressure | 80 @ 33.2 |
| Spring Rate | 10.0 |
Compatible models
| Make | Model | Begin year | End year |
|---|---|---|---|
| Volkswagen/Audi | 1.8L 20v T | 1950 | 9999 |
