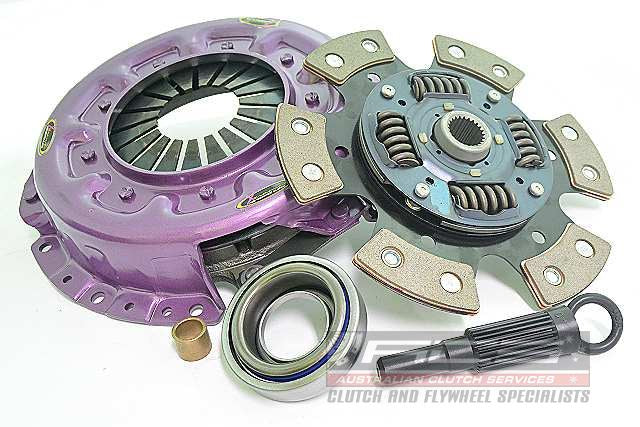

RB20/25DET Clutch Kit - Xtreme Performance Heavy Duty Sprung Ceramic 570Nm 850kg (25% inc.) KNI24001-1B

€ 380.00 EUR

Xtreme Performance - sprung ceramic kit /-1B

Recommended for: Motorsport Applications



These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.



Specifications:
  • Torque capacity 570Nm
  • Clamp load 850kg 25% Increased over standard
  • Sprung Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories



The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.





Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.





What's in the Box?



Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

  • Torque (Nm)
    570
  • Clamp Load
    800Kg (35% inc.)
  • Flywheel Step
    0
  • Clutch Disc Diameter (mm)
    240
  • Clutch Disc Spline Count
    24
  • Clutch Disc Spline Diameter (mm)
    25,5
  • Recommended for
    Track - Stage 2
  • Design
    Single Plate
  • Stage
    Stage 2
  • Weight [KG]:
    9.43
NISSAN 180 SX 2.0 119KW (1991-1994)
NISSAN 180 SX 2.0 Turbo 147KW (1991-1994)
NISSAN 200 SX 2.0 i 16V Turbo 147KW (1994-1996)
NISSAN 200 SX 2.0 Turbo 162KW (1994-1999)
