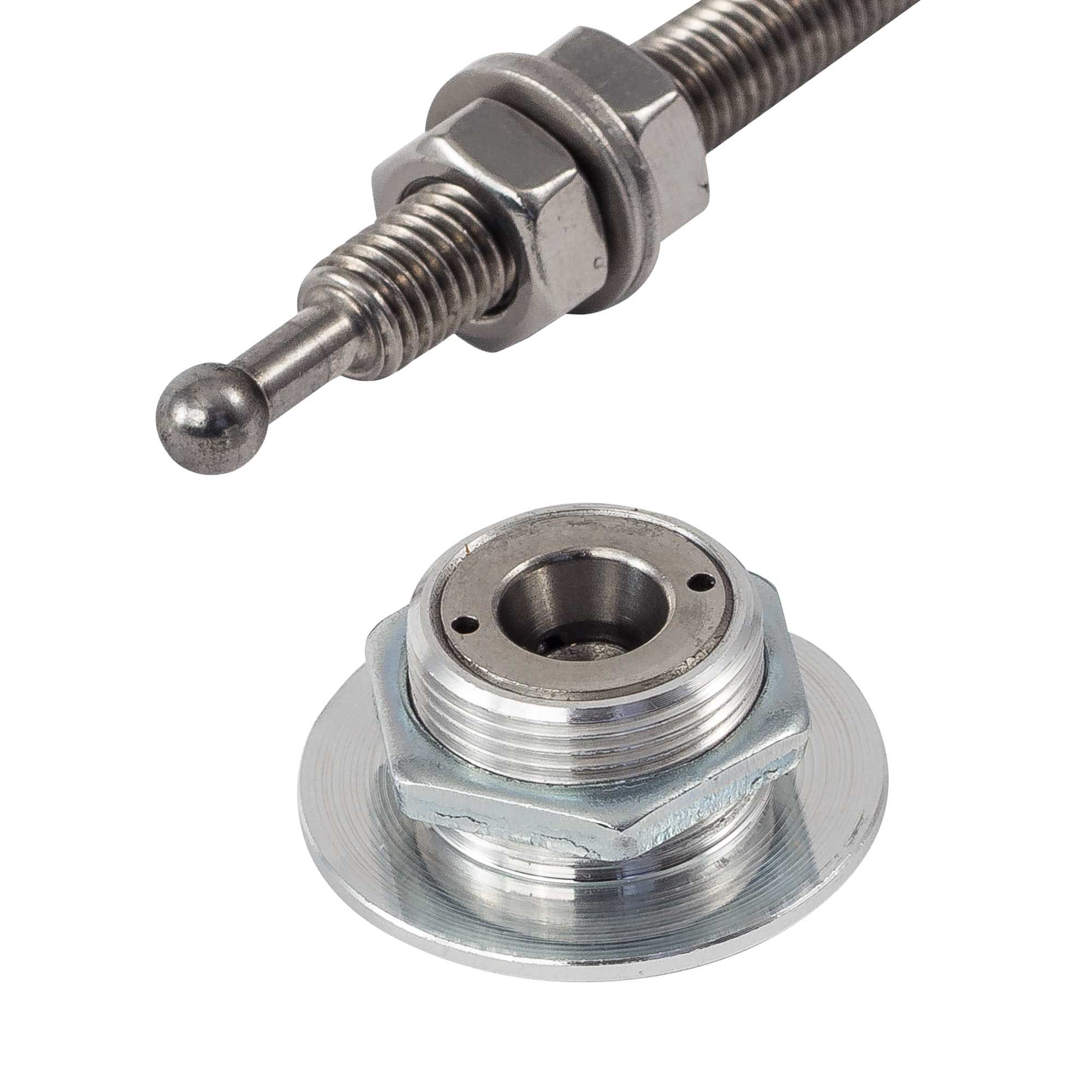

These revolutionary new fasteners from Pitking Products provide a neat and quick release alternative to traditional bonnet pins or panel fasteners. They are a 2 piece design comprising of a pin and latch. The two parts snap together securely on a ball and socket fitting. To release, simply press the button in the latch. This ball and socket fitting provide high levels of misalignment and 360 degree rotation making them ideal for awkward panel shapes. The latch also incorporates a spring loaded 'damper' to allow for some deflection on rigid panels.
The quick release clip can be fitted on panels up to a maximum thickness of 8mm and the threaded pin had a length of 105mm for a wide range of mounting options.
The threaded pin is manufactured from stainless steel and the quick release latch is anodised aluminium for a long lasting corrosion free finish.
The quick release fasteners are ideal for -

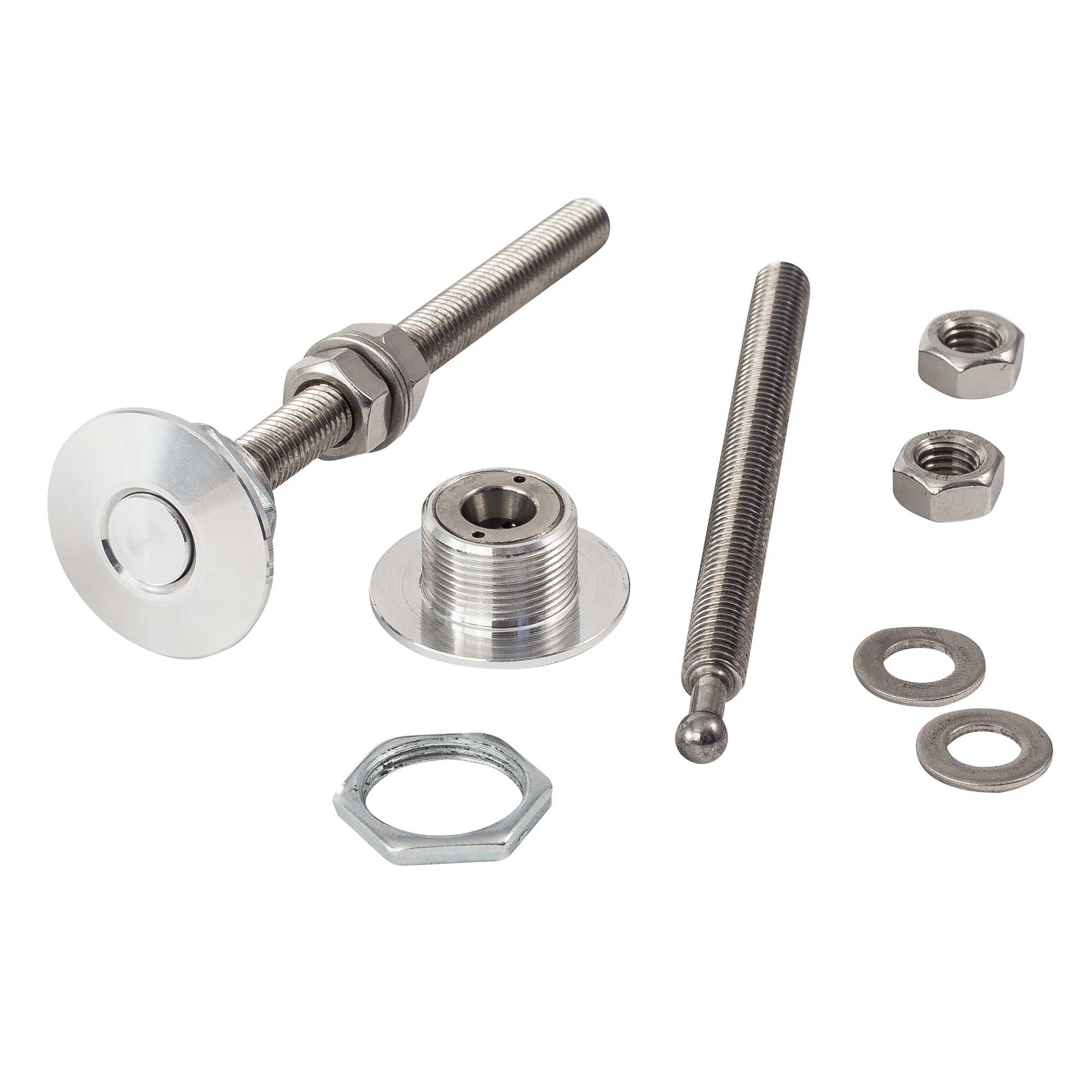

Sold individually the fastener comprises of -

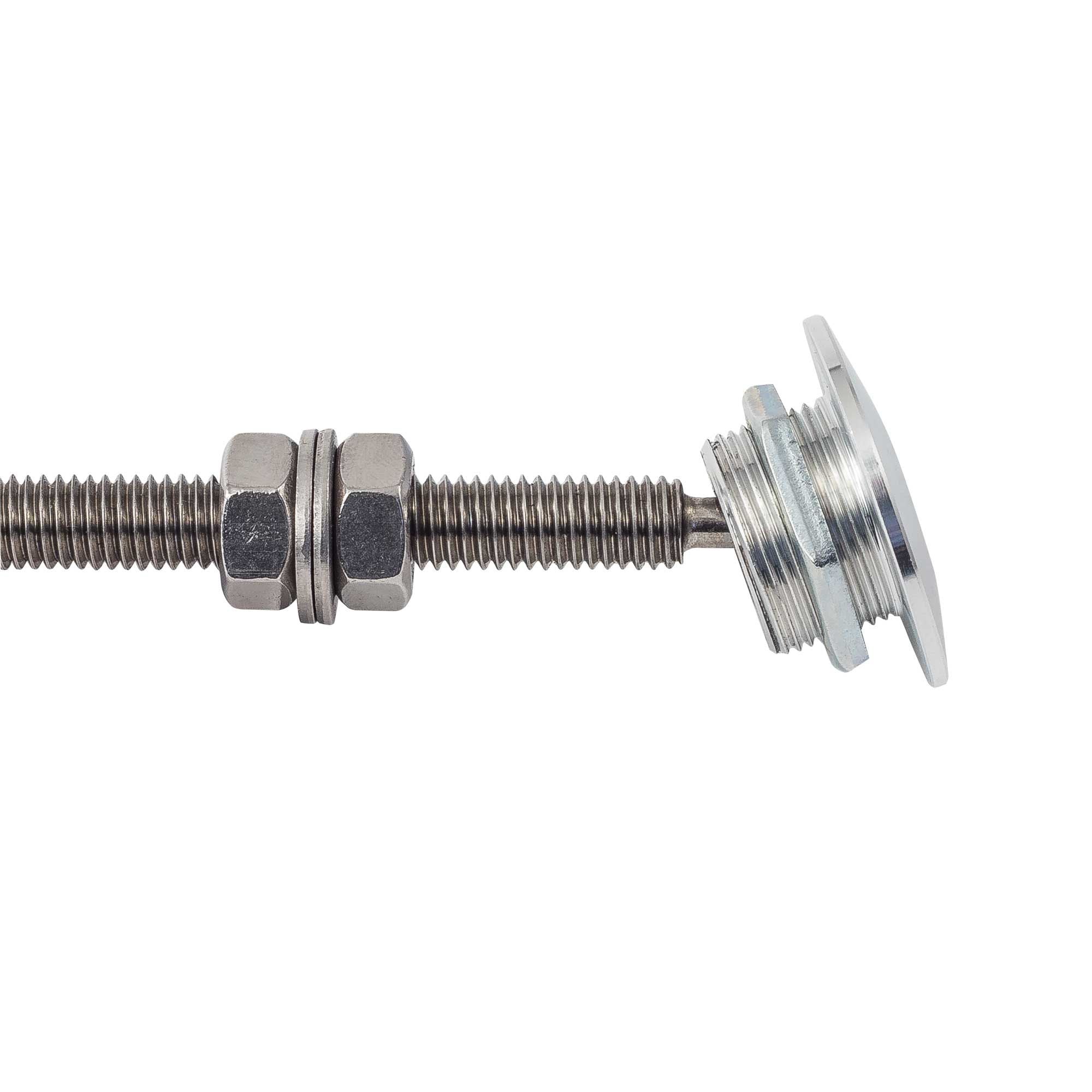

1 M8 x 105mm pin
1 32mm OD Alloy quick release latch
1 Alloy latch locknut
2 M8 locknuts
2 8mm washers
