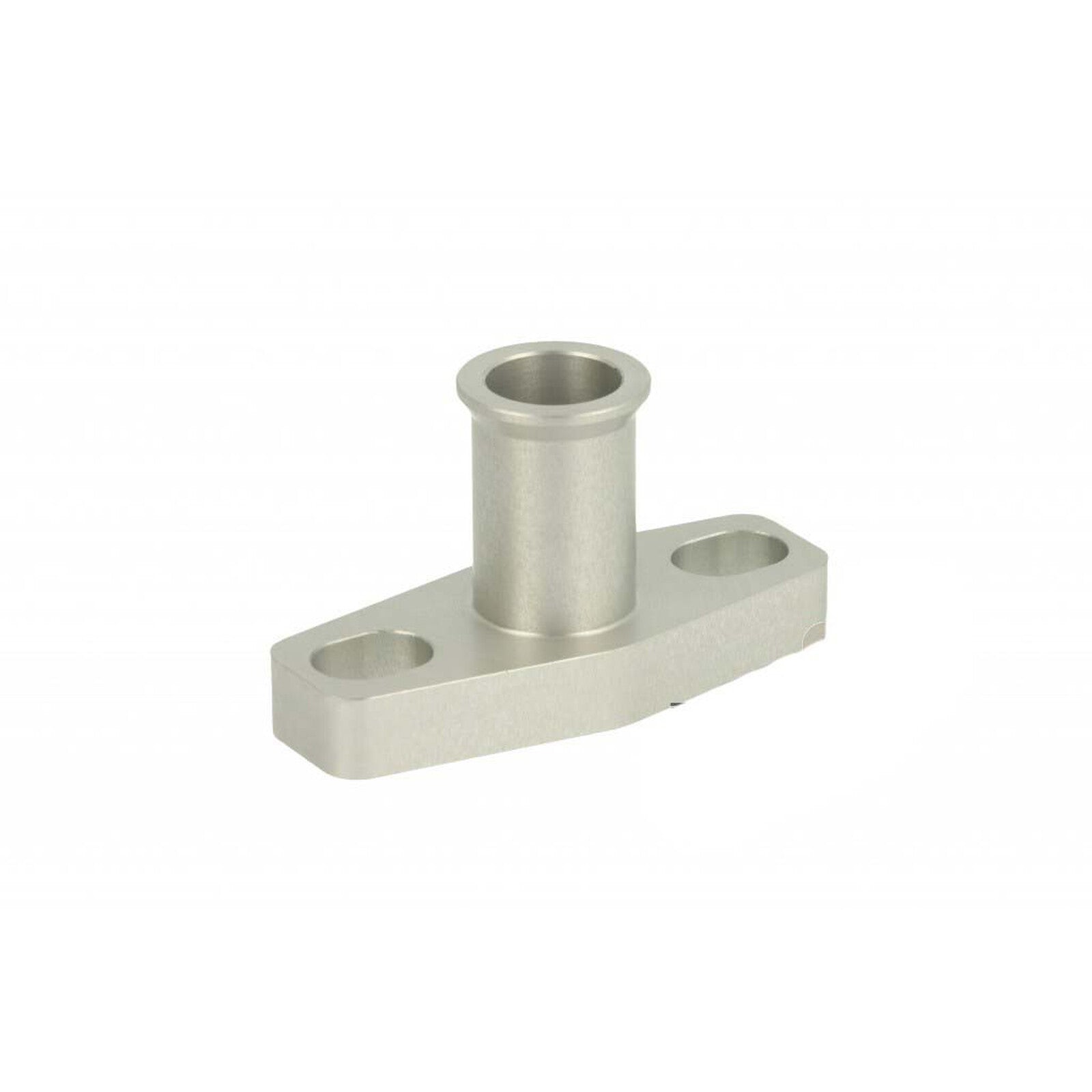

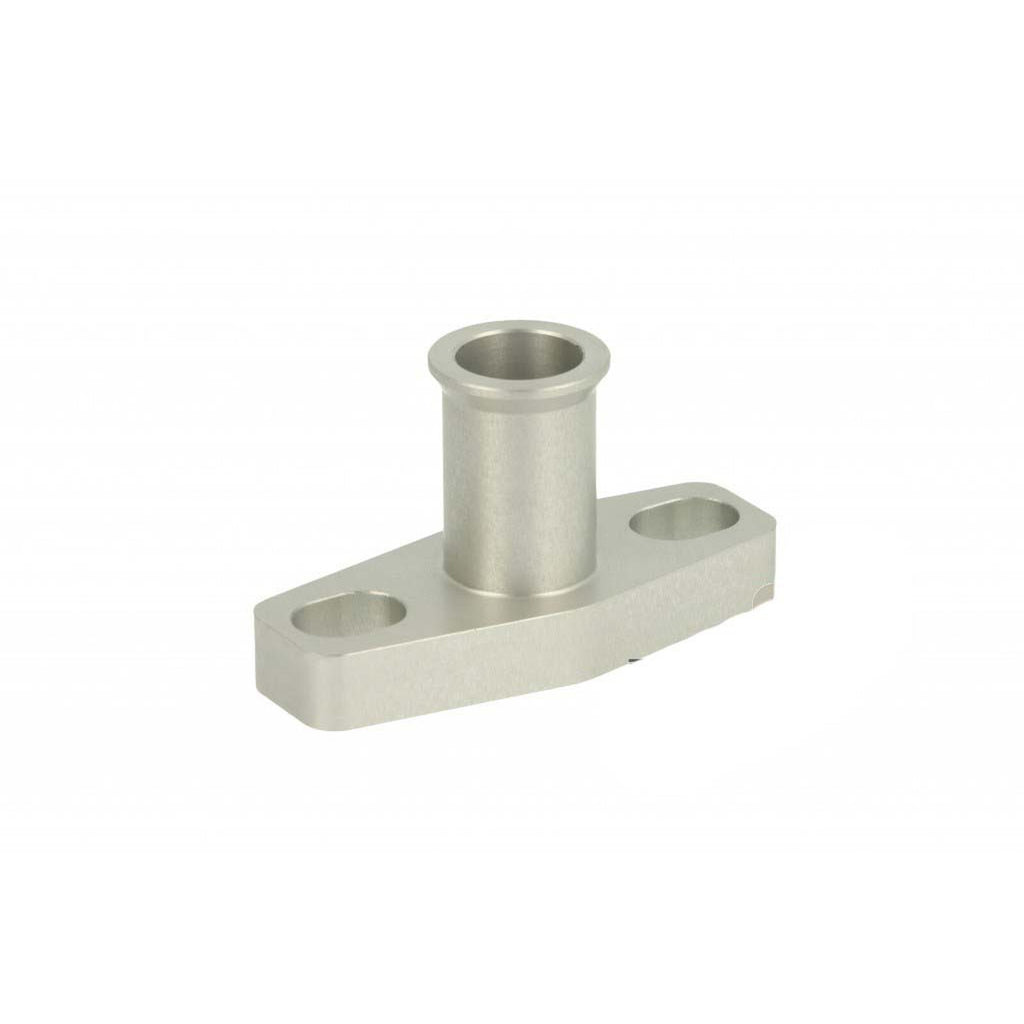

Oil return adapter GT-R / GTX / G-Serie / BorgWarner EFR - short pipe
Oil return adapter GT-R / GTX / G-Serie / BorgWarner EFR
Return flange with short pipe
High quality CNC milled Aluminium Flange for hose connection
This Aluminium oil return flange for Garrett EFR / Garrett GTX / G-series / GT-R / Precision and Turbonetics (ball bearing) Turbocharger is CNC milled and a perfect fit. The long Bores give a certain flexibility for other Turbochargers with similar Flange. The Return bores profile is made in the right size to allow the flow back of the oil.
Material: Aluminium CNC milled
Nozzles: 16mm Outer diameter, 18mm Beading
Overall Size: 57mm x 25mm
Bore Distance: 38-45mm (Long bores, measured: minimal to maximal middle of bore)
Bore Diameter: 9mm
Fits with:
ball bearing Turbocharger
journal bearing Turbochargers 10th and 20th Series
Garrett T12
Garrett T15
Garrett T2, T20
Garrett T25
Garrett GT2554R (471171-5003)
GT2854R (471171-5009)
GT2859R (780371-5001 / 707160-5009)
GT2860R (707160-5007 / 707160-5005 / 739548-5009)
GT2860RS (739548-5001 / 739548-5005)
GT2871R (743347-5001 / 743347-5002 / 743347-5003 / 743347-5004 / 472560-5015 / 771847-5001 / 780371-5002 / 707160-5010)
GT2876R (705330-5001 / 705330-5002)
GTX2860R (816364-1)
GTX2863R (816365-1)
GTX2867R (816366-1)
GT3071R-WG
GT3071R (CHRA 700177-5023)
GT3076R-WG
GT3076R-C10
GT3076R (700382-5012)
GTX3067R (824727-0001)
GTX3071R (803712-1)
GTX3076R (803713-1)
GT3582R (714568-5001 / 714568-5002 / 714568-5003 / 714568-5007 / 714568-5008 / 714568-5009 / 714568-5010 / 714568-5011 / 714568-5012)
GTX3576R (803714-1)
GTX3582R (803715-1)
Note:
For the Supply Line please choose minimum a Dash 4 Line. The oil Return Line needs to be minimum Dash 10 / minimum inner diameter 16mm!
