Nissan Patrol Y61 Xtreme Outback Extra Heavy Duty Cushioned Ceramic Clutch Kit 750Nm 1250Kg (40% inc.)
- Regular price
- €670.94
- Sale price
- €670.94
- Regular price
-
About the Product
Ships from our supplier's EU warehouse – typical delivery about 1 week.
Part number: KNI24008-1CX
- Clutch Disc Diameter (mm): 240
- Clutch Disc Spline Count: 24
- Clutch Disc Spline Diameter (mm): 25,4
- Flywheel Step (mm): Flat
- Torque (Nm): 750
- Clamp Load: 1250Kg
- Clamp Load Increase: 40%
- Stage: Stage 2X
- Recommended for: Low Speed Trial - Stage 2
- Tech Bulletins: TSB-165
- Design: Single Plate Cushioned Ceramic Disc – combines extreme thermal durability with a cushioned segment design for improved driveability and smoother clutch take-off.

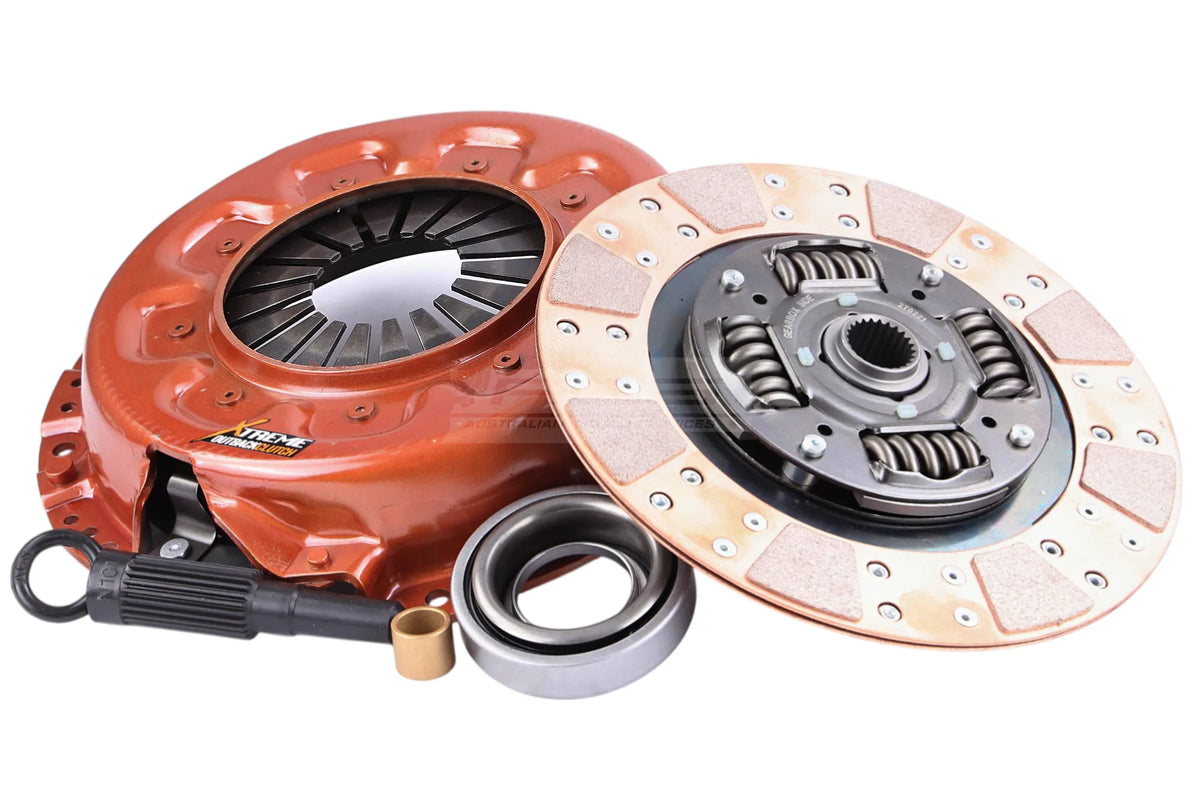

- Kit includes: Pressure plate, Clutch disc, Release bearing, Alignment tool, Spigot bush
- Flywheel: Not included
Xtreme Outback - Extra Heavy Duty Cushioned Ceramic Kit /-1CX
Recommended for: motorsport applications, heavily modified vehicles, demanding off-road use, long-distance rallies, time trials and low-speed trials conditions, where improved pedal feel and maximum holding capacity are both important.
The Xtreme Outback Extra Heavy Duty Clutch Kit (Cushioned Ceramic) has been designed for drivers who need the thermal capacity and durability of a ceramic clutch, combined with better progressiveness and higher holding capacity for more demanding applications. This kit has been developed for high-stress motorsport and off-road use, and delivers consistent clutch performance in extreme temperature and load conditions.
Compared to the /-1C version, the /-1CX uses a stronger pressure plate to deliver increased clamp force and improved torque capacity. The cushioned ceramic design uses a sprung hub (torsional damper) to absorb shock, along with a cushioned disc construction to allow more progressive engagement. This makes it an excellent choice where control, pedal feel and high thermal capacity are essential.
Why choose the /-1CX over the /-1C?
Choose the /-1CX kit if the vehicle is more heavily modified, used in tougher motorsport or off-road conditions, or subjected to higher torque and heat loads. Compared to the /-1C version, the /-1CX offers a stronger pressure plate and increased clamp force for improved torque capacity, better resistance to clutch slip and greater reliability under heavy use, while retaining the improved pedal feel of a cushioned ceramic disc.
Features:
- 750Nm torque capacity
- Extra Heavy Duty pressure plate with 40% increased clamp force (1250Kg) for superior holding capacity
- Cushioned ceramic clutch disc for high heat resistance and improved progressiveness
- Sprung hub (torsional damper) to absorb shock
- Designed for motorsport, heavily modified vehicles, low-speed trials use and demanding high-temperature applications
- A step up from the /-1C for higher loads and more intensive use
- Complete kit including everything you need for a successful installation, including selected accessories
Xtreme Outback
Xtreme Outback clutch kits have been designed and manufactured to withstand some of the harshest conditions in the world, and are the ultimate Heavy Duty 4x4 upgrade for road, off-road and performance applications.
Every Xtreme Outback clutch kit is engineered to deliver the right balance of performance, durability and drivability. Trusted by motorsport teams and armoured vehicle manufacturers around the world, Xtreme Outback clutch kits are built to get you there - and bring you back safely.
What's in the box?
Xtreme Outback upgrade kits are supplied with the essential components required for installation, along with selected accessories that are often recommended for replacement or upgrade while the gearbox is removed from the vehicle.
Vehicle fitment
| Make | Model | Variant | Years | Engine |
|---|---|---|---|---|
| Nissan | Patrol | Y61 | 2.8 TDiC | 1997.10-2000.02 | RD28Ti 2826 Diesel 96 kW 131 BHP (1997.10 - 2000.02) |
Suitable to dual mass flywheel
