NEXUS R5 + Universal Wire-in Harness Kit LENGTH: 5m (16')
- Regular price
- €3,980.00
- Sale price
- €3,980.00
- Regular price
-
Expect prompt delivery and easy tracking
Tracking Number sent via E-mail
Dispatch 1-3 days for item in stock
Special order or items out of stock delivery may vary
About the Product
Suits: Racing application where advanced race features, data logging and power management control is required.

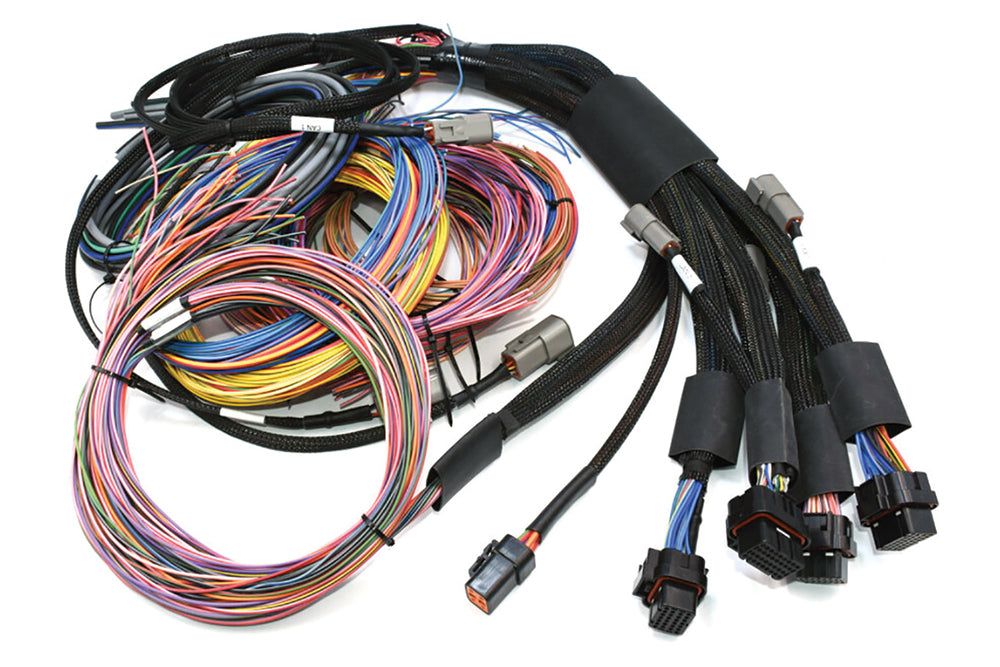

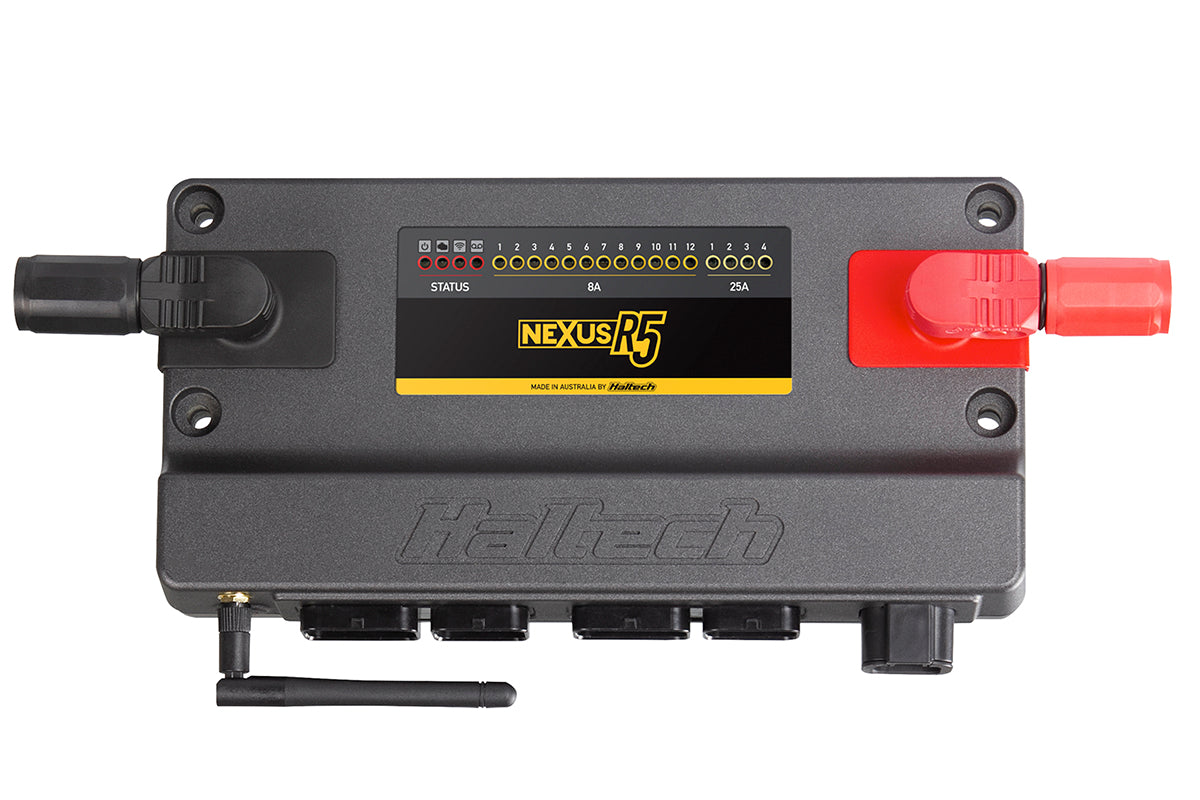

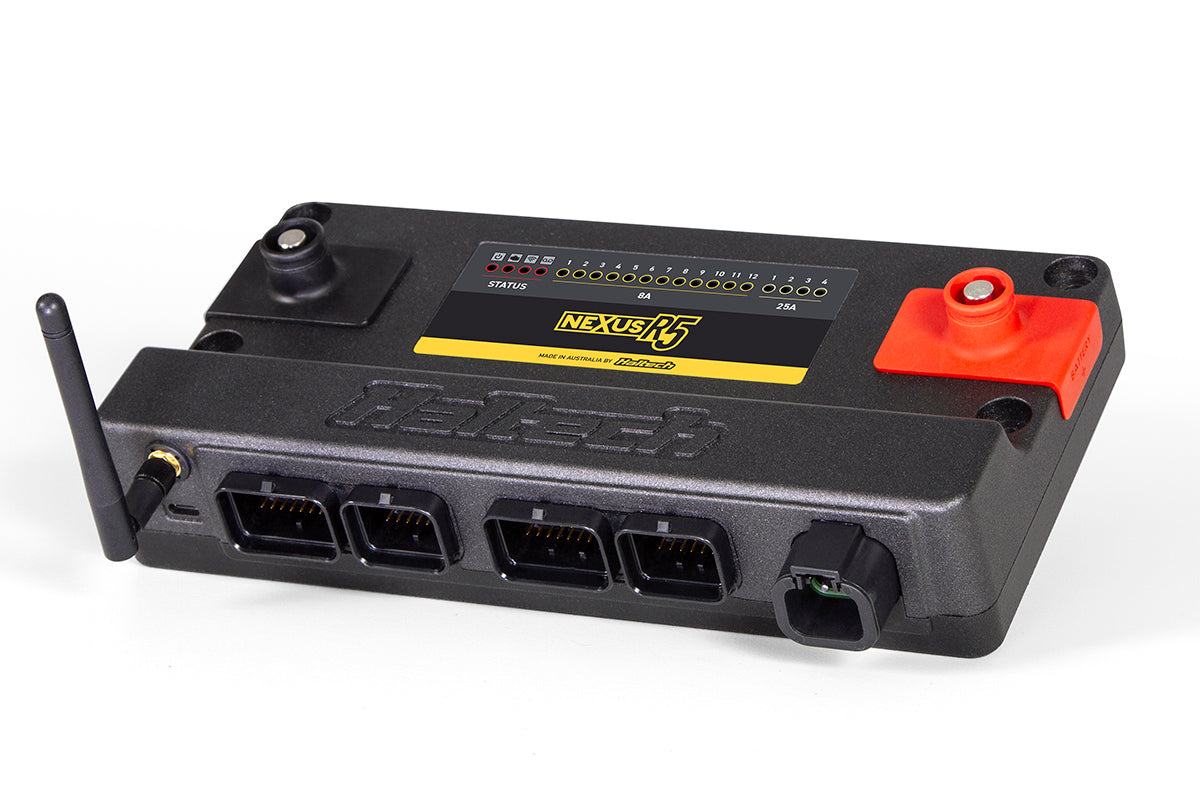

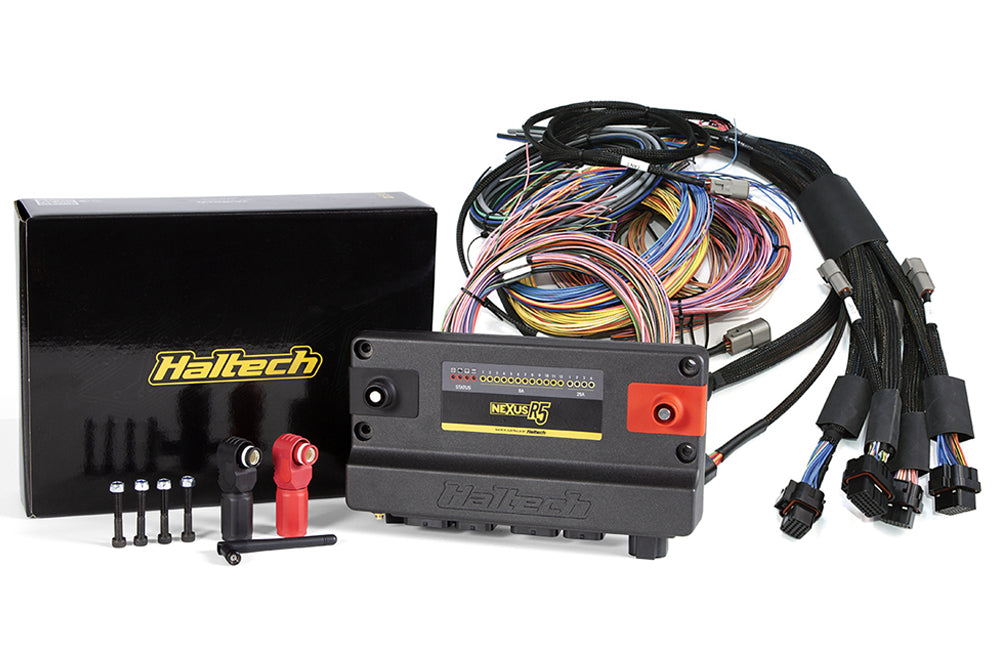

Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4. NEXUS R5 universal engine wiring harness 5M /16' with fire wall grommet 2.5in (63.5mm).
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
- 18 x peak/hold injector drivers (can be used as low side drive outputs)
- 12 x low current ignition outputs (can be used as low side drive outputs)
- 8 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 2 x onboard wideband controllers, supporting NTK and LSU4.9
- 3 x CAN ports with switchable termination
- Colour coded and labelled wires that match the detailed wiring diagram for a confusion free construction process.
- The wiring diagram is accompanied by the full VCU manual and Software located on the USB key provided with the VCU, or downloadable from the Haltech Website.
- Controlled via NSP (Nexus Software Programmer)
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management
- On-board Wi-Fi
- Ford AODE/4R70W
- GM 4L60E
- GM 4L80E
- Toyota A340E
- Lenco
- Liberty
- 8 x Primary injectors (EV6)
- Breakout plug for 8 x Secondary injectors
- 2 x outputs available for Tertiary injection
- Universal breakout for accelerator pedal wiring
- Single / Dual boost solenoid control
- Dual wideband sensor control (R5 onboard wideband controller)
- Flex fuel sensor connection
- Direct fuel pump control (using 25A-HCO)
- Direct thermofan control (using 25A-HCO)
- In cabin breakout connector for spare inputs and outputs
- Engine bay breakout connector for spare inputs and outputs (eg transmission control)
- Breakout connector for PDM outputs (eg Headlights, indicators, wipers, etc)
- Haltech CAN Bus support (DTM-4)
