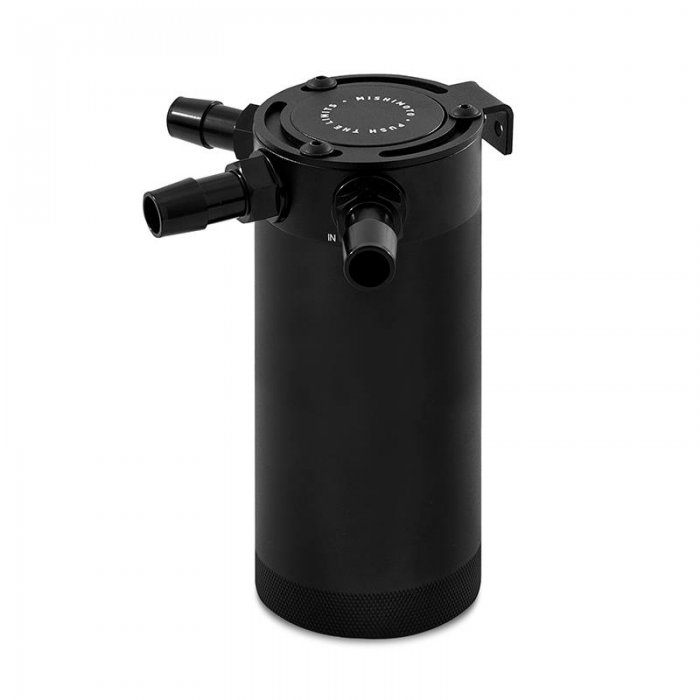

MISHIMOTO XL COMPACT BAFFLED OIL CATCH CAN, 3-PORT
- Regular price
- €161.00
- Sale price
- €161.00
- Regular price
-
Expect prompt delivery and easy tracking
Tracking Number sent via E-mail
Dispatch 1-3 days for item in stock
Special order or items out of stock delivery may vary
About the Product
- Separates oil particles from PCV/CCV air using 50-micron bronze filter
- Defends intercooler, intake system, and essential components from oil blow-by
- Patent pending billet 6061 aluminium can sealed with Viton™ O-Rings
- Includes 3 CNC-machined aluminium 1/2" barbed hose fittings
- Universal mounting bracket for customized installation
- 220ml internal capacity for improved servicing intervals

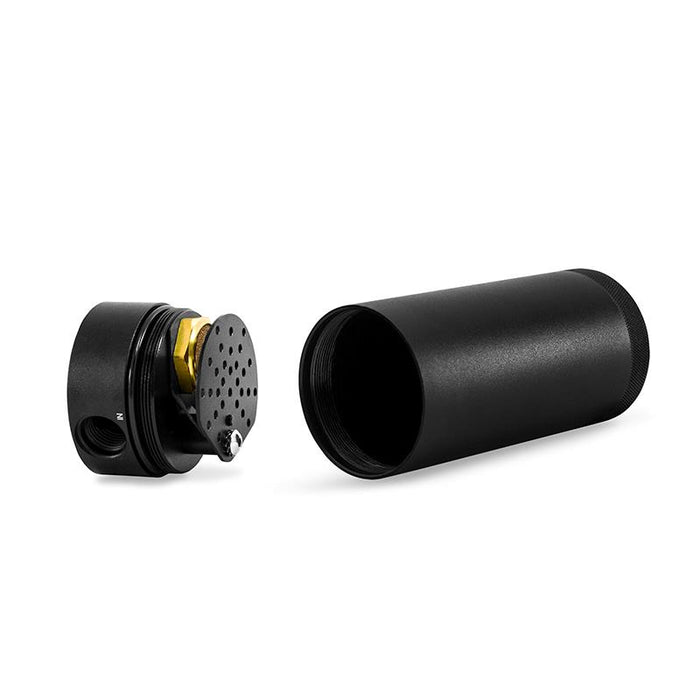

- Filter and can are both fully serviceable
- Safe for pressurized applications
- Internal air diverter increases air turbulence to improve oil separation
- Helps maintain proper octane levels to reduce potential detonation
- Click Here to find out which Universal Catch Can is best for you
- Mishimoto Lifetime Warranty
Product Description
The Mishimoto XL Baffled Oil Catch Can features a 220ml capacity for heavy blow-by collection or extending the servicing interval on any vehicle. The 100% billet, 6061 aluminium can features M16 x 1.5 threads at the inlet, outlet, and drain area and includes three black anodized, CNC-machined aluminium fittings to make installation effortless. Our catch can is also sealed with Viton™ O-Rings to ensure all captured blow-by stays inside of the can. For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. The can is also 100% washable, unlike many other cans that require you to replace your filtration system.
Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what we've seen in the bottom of our catch cans, you won't want that draining back into your oil either.
TECH SPECS
| Height (in) | 6.25 |
|---|---|
| Catch Can Diameter (in) | 2.5 |
| Inlet | M16x1.5 |
| Outlet | M16x1.5 |
| Drain Plug Thread Size | 3/8 NPT |
| Installation Notes |
22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM).
|
| Note |
After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
|
