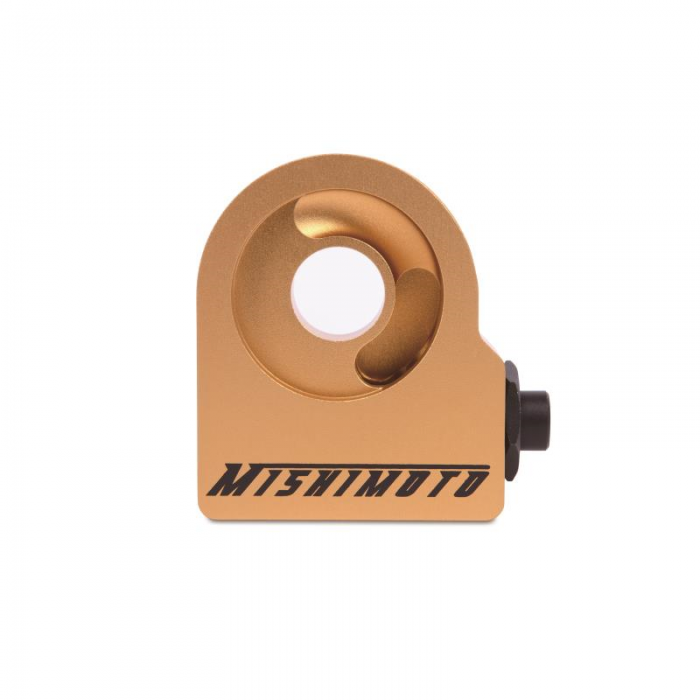

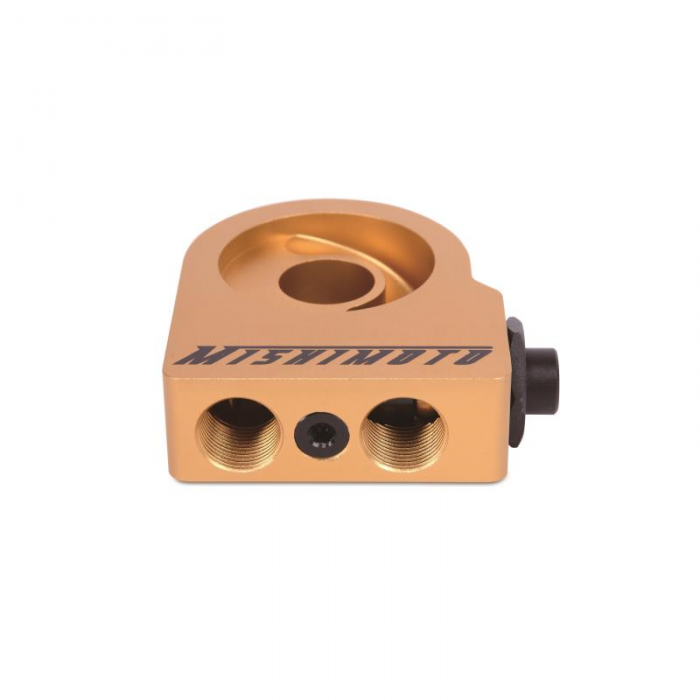

MISHIMOTO THERMOSTATIC OIL SANDWICH PLATE

$117.00

*NEEDS M20 x -10AN FITTINGS*

PRODUCT FEATURES

  • 6061 aluminium, CNC-machined
  • 1/8" NPT port (with plug) for sensors/oil feed/etc.
  • Built-in thermostat (185°F / 85°C)
  • Square O-ring design
  • Mishimoto Lifetime Warranty

DESCRIPTION

The Mishimoto Thermostatic Oil Sandwich Plate is a lightweight, high-flow sandwich plate built from 6061 aluminium. The built-in thermostat prevents oil flow to the cooler until the engine oil reaches activating temperature, allowing for both a faster warmup at startup and extra oil system protection in cold climates. The included 185°F (85°C) thermostat can be changed with a 160°F (71°C) or 200°F (93°C) unit, adding unparalleled control over your desired engine oil operating temperature. Also includes a 1/8" NPT threaded hole on the side for oil sensors.

PURCHASE INCLUDES

Purchase Includes
(1) – Thermostatic Oil Sandwich Plate
(1) – Rubber O-ring
(1) – Built-in Thermostat (185°F / 85°C)
(1) – Black 1/8" NPT Plug
Mishimoto Lifetime Warranty

PRODUCT SPECS

MATERIAL 6061 Aluminum
CAUTION It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.
OVERALL HEIGHT 4.02
OVERALL LENGTH 3.11
OVERALL WIDTH 1.18 (2) - M20 x 1.5 Ports
PORT SIZES (2) M20 x 1.5 Ports
