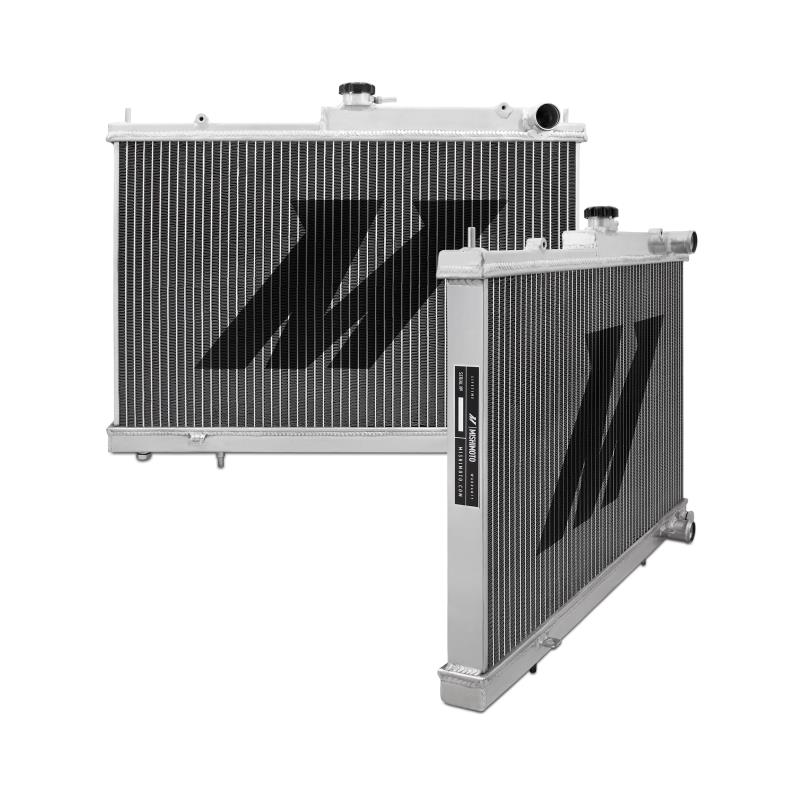

Direct fit for the 1993–1998 Nissan Skyline R33
Full aluminium construction including durable, TIG-welded end tanks
Features a three-row, 1.57" thick, efficient brazed aluminium core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for both street and track use
Efficient temperature regulation for both stock and modified vehicles

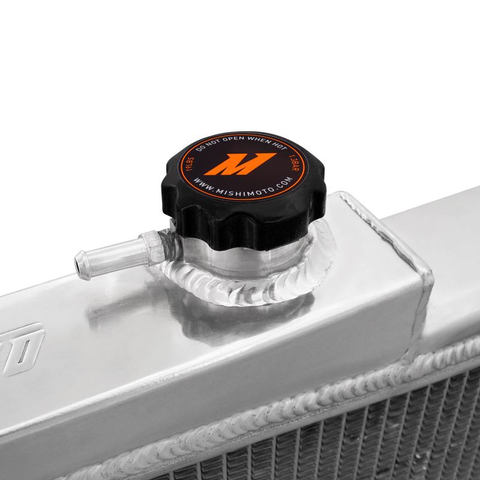

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine
coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic
Mishimoto Lifetime Warranty
TECH SPECS
Material: Aluminum
Note Will Fit Turbo Applications Only
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
Chassis Codes R33/R34
Engine Codes RB25DET RB26DETT
Overall Height 26.4
Drain Plug Length 0.047
Drain Plug Thread Size (M16) .06
Overall Length 21.8 Tank Wall Thickness 0.08
Outlet 1.4 Rows 3 Inlet 1.4 Coolant Capacity 2.69
Dual Pass: No
Purchase Includes: Mishimoto Radiator, Mishimoto Radiator Cap, Magnetic Drain Plug, Mishimoto Lifetime Warranty
Overall Width 2.07 Core Length 15.75
Core Height 25.51
Core Size 15.75 x 25.51
Core Thickness 1.57
Fill Neck 1.25
