MISHIMOTO AE86 TOYOTA COROLLA PERFORMANCE ALUMINIUM RADIATOR

*Back in stock mid July 2025*

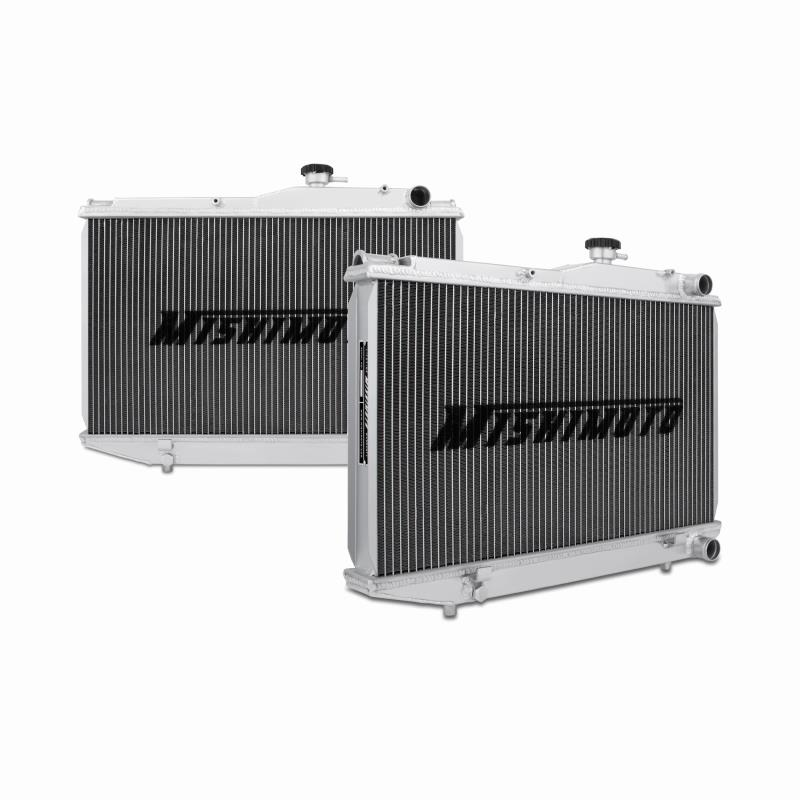

Mishimoto performance aluminium radiator for the 1983–1987 Toyota Corolla AE86 1.6L

*Please note: In order to have this radiator fit snugly against the top panel, we have found it necessary to slightly modify the bottom radiator mounts in order to let the bottom of the radiator sit a little bit back from the chassis. This is very easily done by any competent fabricator*

Full aluminium construction featuring high-quality, durable TIG-welding
Two-row, 2.05" thick brazed aluminium core for optimal heat transfer
Effectively regulates fluid temperatures, ideal for use during aggressive driving such as drifting, autocross, rallycross, track days, etc.
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain
Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty

Specs:

Material: Aluminum
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.

Chassis Codes AE86
Engine Codes 4A-GEC4A-GEU4A-C4A-U
Overall Height 23.15
Drain Plug Length 0.047
Drain Plug Thread Size (M16) .06
Overall Length 18.3

Tank Wall Thickness 0.08
Outlet 1.25

Rows 2

Inlet 1.25

Coolant Capacity 1.67
Dual Pass False

Purchase Includes:

Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug

Core Length 22.16
Core Height 12.79
Core Size 22.16 x 12.79 x 2.04
