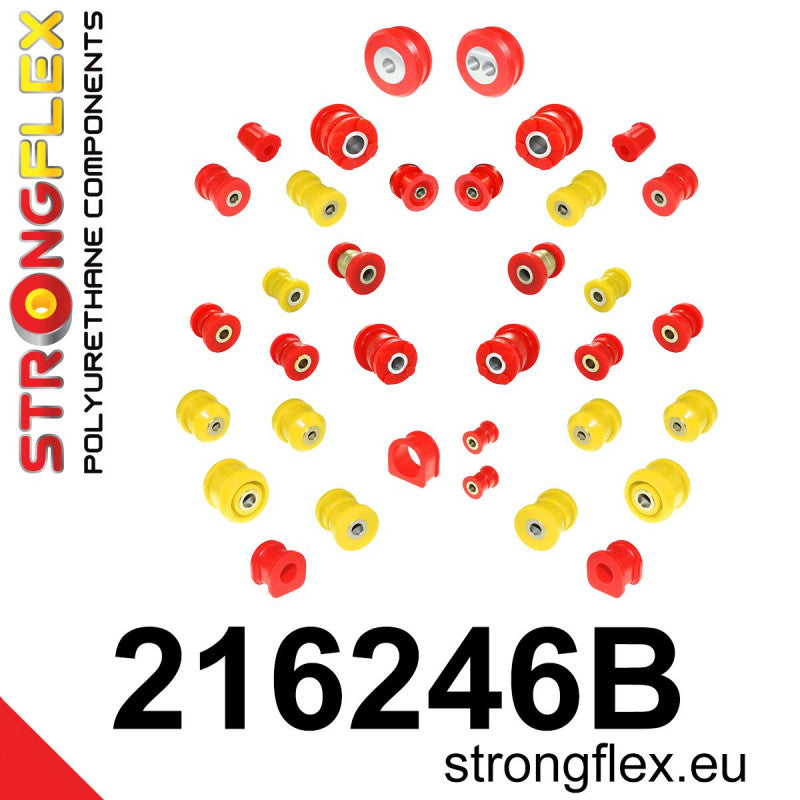

GS300/Aristo S160 / Soarer Z40 full suspension bush kit ROAD 216246B

*Please specify front and rear anti roll bar bush diameters in the notes section with your order. If no diameter is specified we will order these in the smallest diameter and they can be drilled out to size by the customer*

Reference: 216246B

Product name: Full suspension bush kit

Fits to:

• Lexus GS II (97-05) S160
• Lexus SC II (01-10) Z40

• Toyota Aristo II (97-05) S160
• Toyota Soarer IV (01-05) Z40

Include:

• 2x 211911B: Front anti roll bar bush
• 4x 211912A: Front upper arm bush SPORT
• 2x 211913A: Front lower arm bush SPORT

• 2x 211914A: Front lower radius arm to chassis bush 65mm SPORT
  or
• 2x 211921A: Front lower radius arm to chassis bush 60mm SPORT


• 2x 211834A: Rear toe adjuster inner bush SPORT
• 2x 211835B: Rear trailing arm front bush
• 2x 211836B: Rear trailing arm rear bush
• 2x 211837B: Rear track control arm Inner bush
• 2x 211915A: Rear upper arm - front bush SPORT

• 2x 211916A: Rear upper arm – rear bush 35mm SPORT
  or
• 2x 212059A: Rear upper arm – rear bush 30mm SPORT


• 2x 211838B: Rear anti roll bar bush
• 2x 211839B: Rear beam - front bush
• 2x 211840B: Rear beam - rear bush
• 2x 211794B: Rear diff mount - front bush
• 1x 211917B: Rear differential – rear bush
• 1x 211918B: Rear differential – rear bush
• 1x 211919B: Steering clamp bush
• 2x 211920B: Steering rack mount bush

Diagrams:

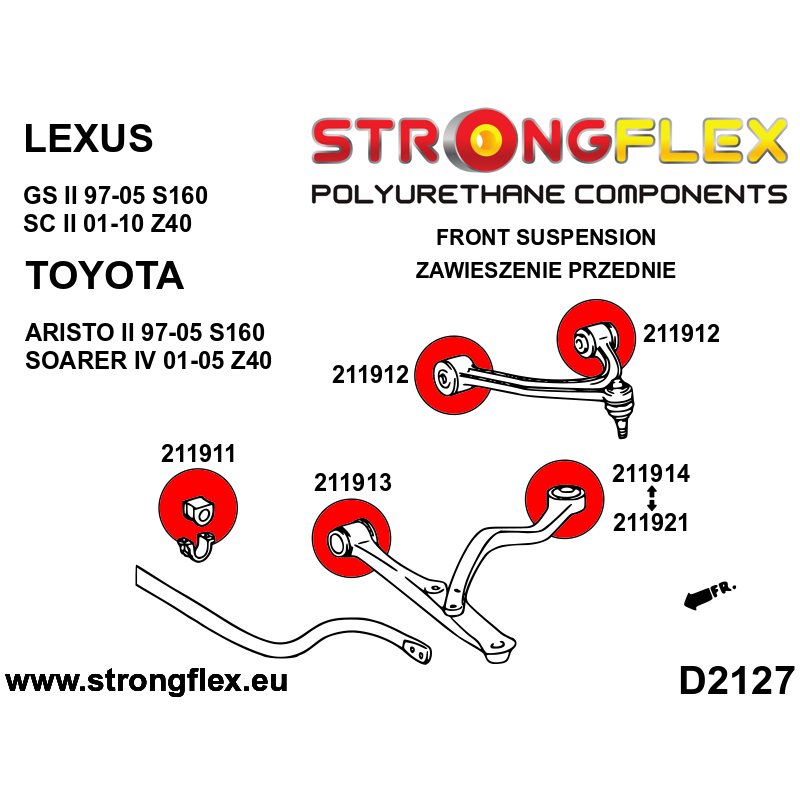

• D2127

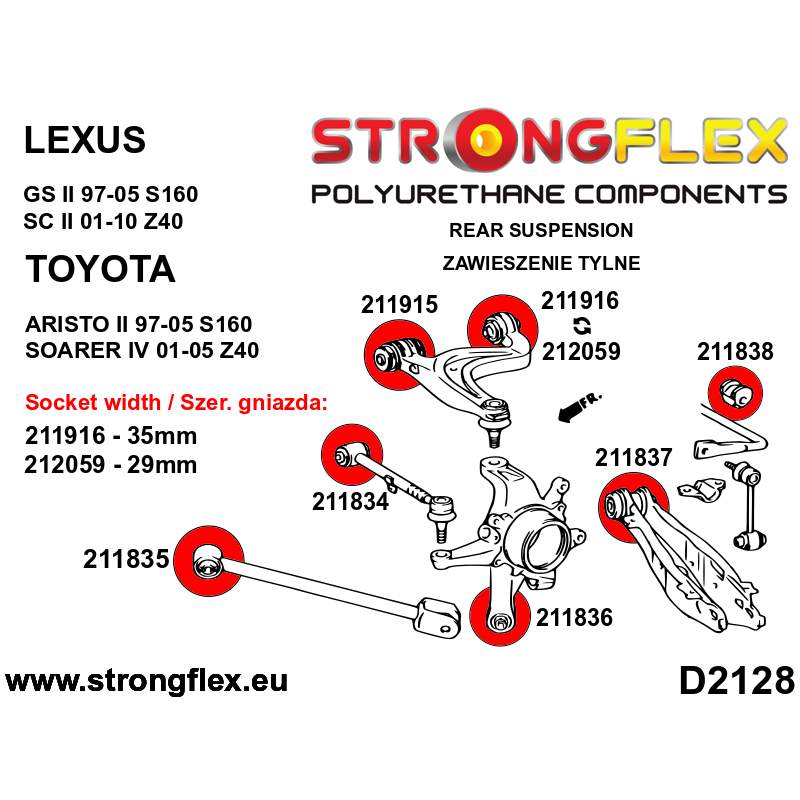

• D2128

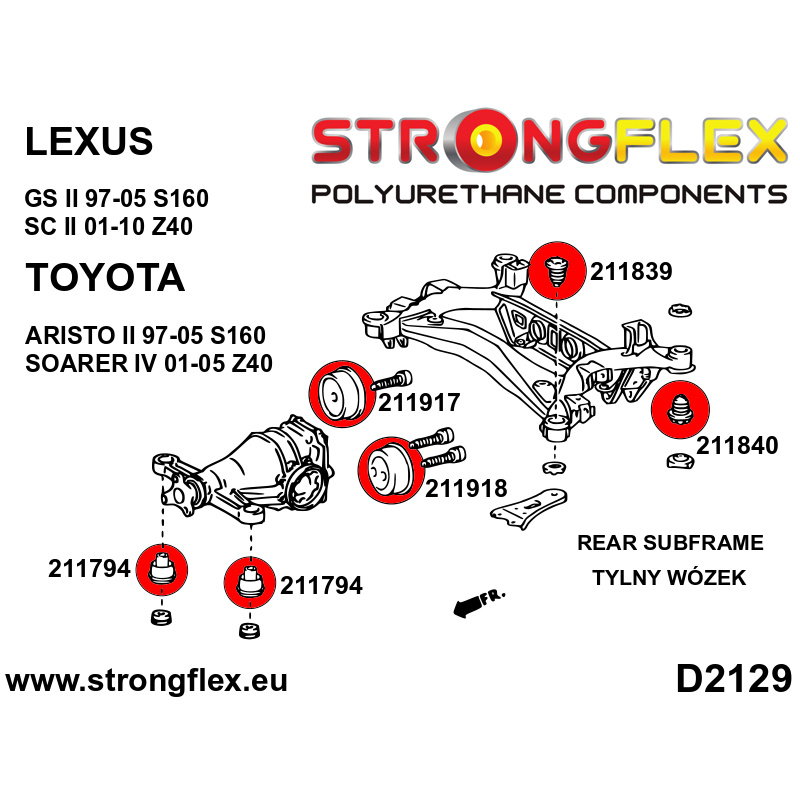

• D2129
• D2130

Notes

• Front wishbone bush - rear:

  211914 - outer diameter bush 65mm
  211921 - outer diameter bush 60mm


• Rear wishbone bushing type:

  211916 - width of the wishbone socket 35mm
  212059 - width of the wishbone socket 29mm

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 35

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
