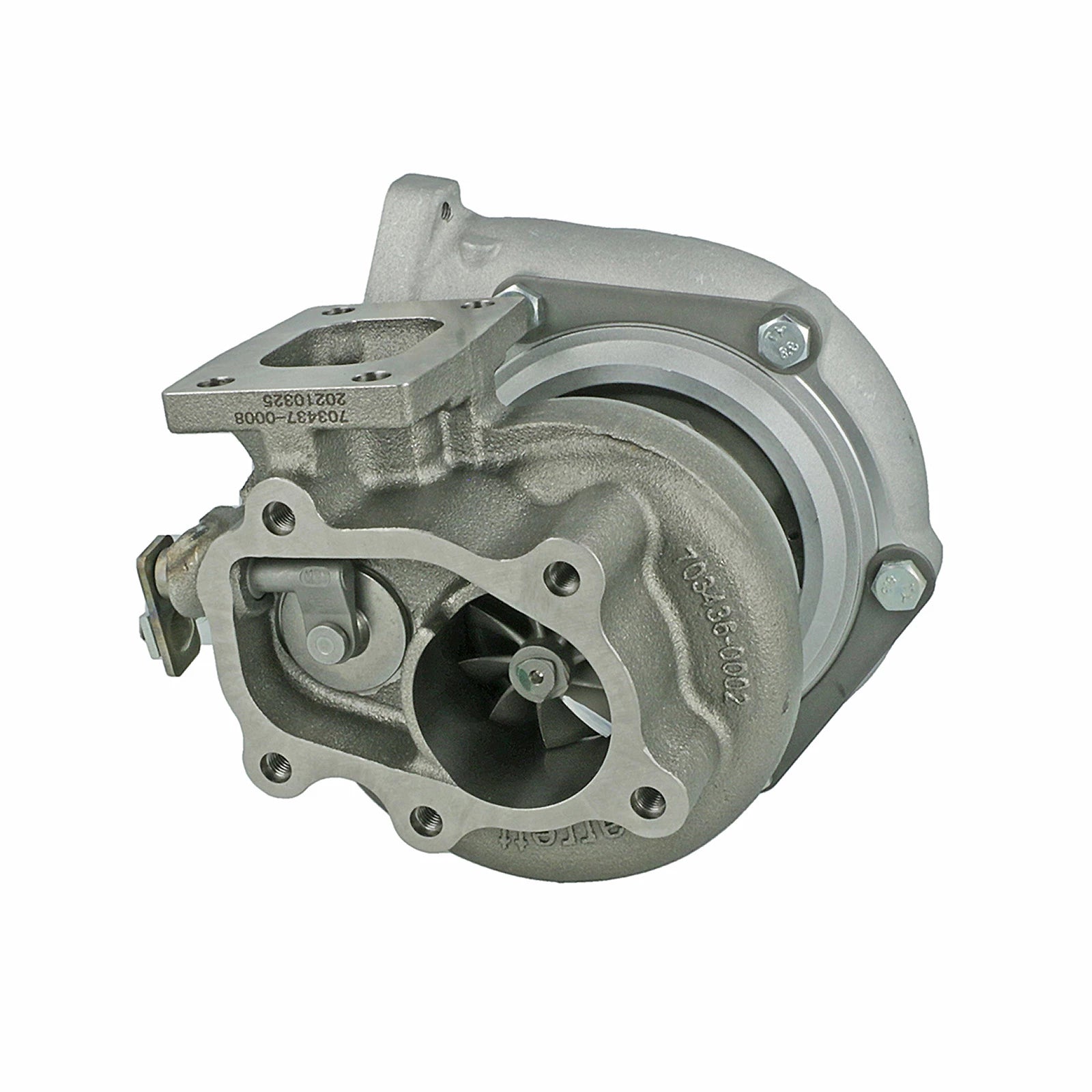

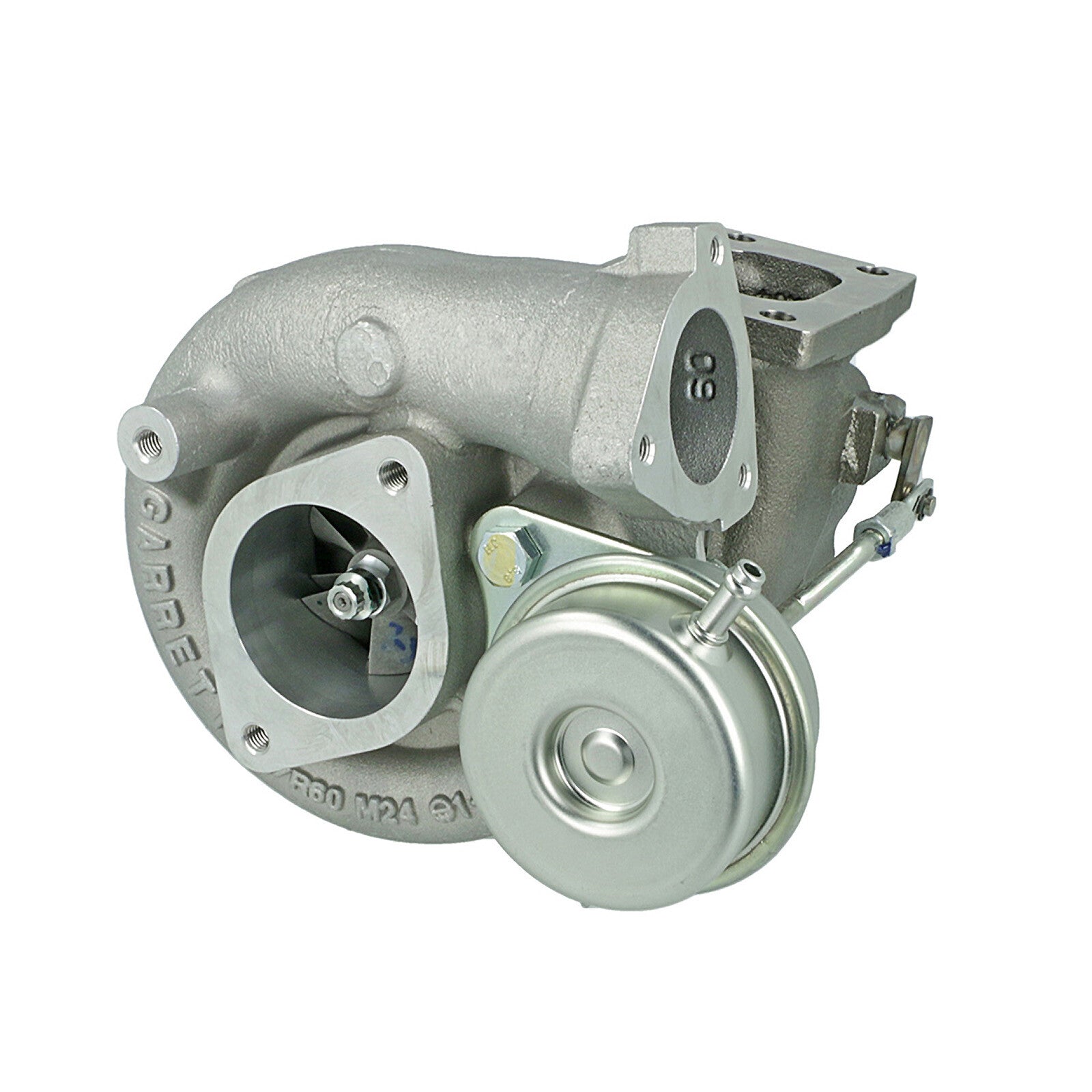

Genuine Garrett upgrade turbocharger for Nissan SR20DET engines
Please note: This is the direct bolt-on version for the SR20DET and CA18DET with 2 bolt compressor inlet, 3 bolt compressor outlet, T25 turbine inlet, and 5 bolt turbine outlet.
This turbo comes with T25, 5 bolt outlet, and oil drain gaskets. Please contact us for any fuelling/management upgrades which you may need.
For a universal fitment turbo, please contact us and we can advise on a more modern GTX Gen 2 or G25 option.
performance rating: 280 - 460 HP
recommended displacement: 1,8 - 3,0L
compressor: inlet 51,2mm / outlet 71,0mm / trim 52 / 0,60ar
turbine: diameter 53,9mm / trim 76 / 0,64ar / internal wastegate
- dual ball bearing
- oil and water cooled bearing system
- internal wastegate with actuator
- Inconel-turbine wheel & "Ni-Resist" turbine housing
- upgrade turbocharger for GT2560R (466541-1 & 4)
FEATURES:
- New 8mm Ceramic Ball Bearing cartridge
- Compressor side: TRIM 52 A/R 0.60
- Turbine side: TRIM 78 A/R 0.64 - T25 / 5-bolts - Wastegated
- Bearing housing: Oil & water cooled system
- Turbine housings options
