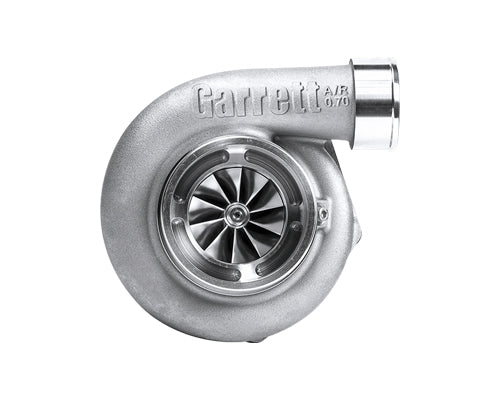

Garrett Gen 2 GTX3582R
PRODUCT DESCRIPTION:
Garrett GEN2 GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!
The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.
PRODUCT FEATURES:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 66mm
Compressor Wheel Exducer: 82mm
Compressor Wheel Trim: 64
Compressor Housing A/R: 0.70
Turbine Wheel Inducer: 68mm
Turbine Wheel Exducer: 62mm
Turbine Wheel Trim: 84
TURBINE HOUSING OPTIONS:
Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R
