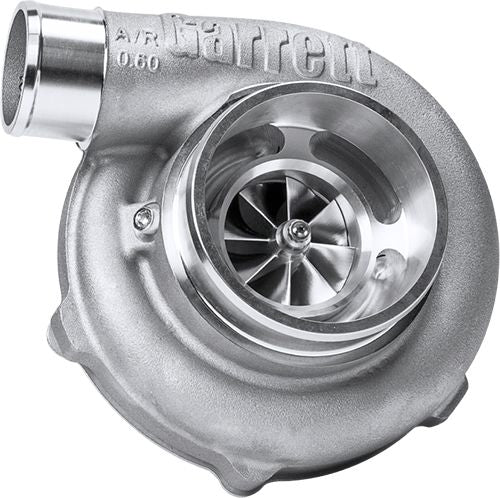

Garrett Gen 2 GTX3576R Reverse Rotation
GTX3576R Gen2 Reverse
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Horsepower: 400 - 750HP
Displacement: 2.0 - 4.5L
- Gen2 Aerodynamics feature increased horsepower range.
- Improved ported shroud design for surge resistance.
- New compressor housing aesthetics.
- Integrated speed sensor port.
- Reverse rotation.
- Actuator and turbine housing not include.
- Compressor side: TRIM 58 A/R 0.60 - Reverse
- Compressor Air Inlet: Hose 4.00" (101.60mm)
- Compressor Air Outlet: Hose 2.00" (50.80mm)
- Turbine side: TRIM 84 - Reverse
- Bearing housing: Water and Oil cooled system.
