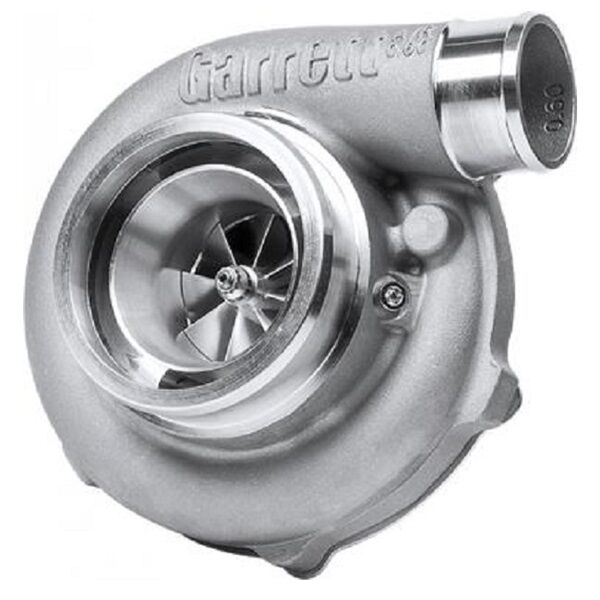

Garrett Gen 2 GTX3076R

€ 1,427.00 EUR


GTX3076R Gen2

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Technical Features:

Horsepower: 400 - 750HP
Displacement: 1.8 - 3.0L
  • Gen2 Aerodynamics feature increased horsepower range.
  • Improved ported shroud design for surge resistance.
  • New compressor housing aesthetics.
  • Integrated speed sensor port.
  • Standar rotation.
  • Actuator and turbine housing not include.
  • Compressor side: TRIM 58 A/R 0.60
  • Compressor Air Inlet: Hose 4,00" (101.60mm)
  • Compressor Air Outlet: Hose 2.00" (50.80mm)
  • Turbine side: TRIM 84
  • Bearing housing: Water and Oil cooled system.
