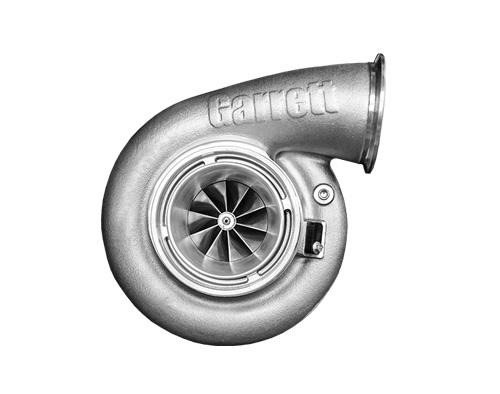

Garrett G42-1450
The new G42 Series line of turbochargers features the latest Garrett Motion technology. This 100% clean sheet product has many advanced features. New Compressor aerodynamics deliver up to 1450 horsepower. High flowing Inconel turbine wheel handles up to 950 degrees. New 8mm ball bearing cartridge is compact in size allowing us to produce a narrower center housing.
Technical Features:
Horsepower: 525 - 1450HP
Displacement: 2.0 - 8.0L
- Garrett® G Series Compressor Aerodynamics (10 blades) for maximum HP.
- Fully machined Speed Sensor and pressure ports.
- Turbine Wheel Aero constructed of Inconel super alloy rated 950ºC
- Stainless Steel non wastegated turbine housing option capable of 950°C.
- Oil restrictor and water fittings included.
- Standar rotation.
- Compressor side: TRIM 65 A/R 0.85
- Compressor Air Inlet: Hose 5.00" (127.00mm)
- Compressor Air Outlet: V-Band 4.20" (107.00mm)
- Turbine side: TRIM 84
- Bearing housing: Water and Oil cooled system.
