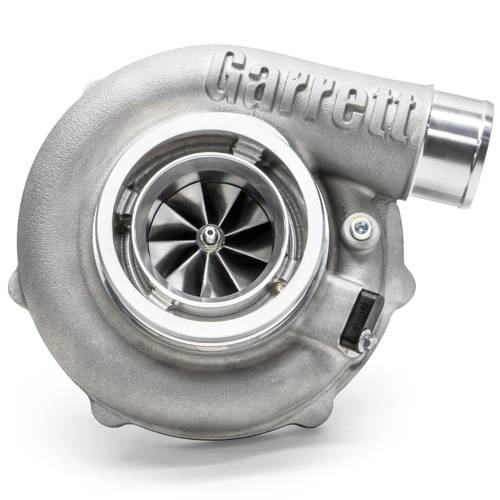

The new G-Series line of turbochargers features the latest Garrett Motion technology. This 100% clean sheet product has many advanced features. New Compressor aerodynamics deliver up to 900 horsepower. High flowing Mar-M turbine wheel handles up to 1050 degrees C temperatures. New 8mm ball bearing cartridge is compact in size allowing us to produce a narrower center housing.
Horsepower: 700 - 1050HP
Displacement: 2.5 - 5.5L
- Garrett® G Series Compressor Aerodynamics for maximum HP.
- Fully machined Speed Sensor and pressure ports.
- New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
- Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
- Oil restrictor and water fittings included.
- Standar rotation.
- Compressor side: TRIM 65 A/R 0.75
- Compressor Air Inlet: Hose 4.00" (101.60mm)
- Compressor Air Outlet: Hose 2.00" (51.15mm)
- Bearing housing: Water and Oil cooled system.
