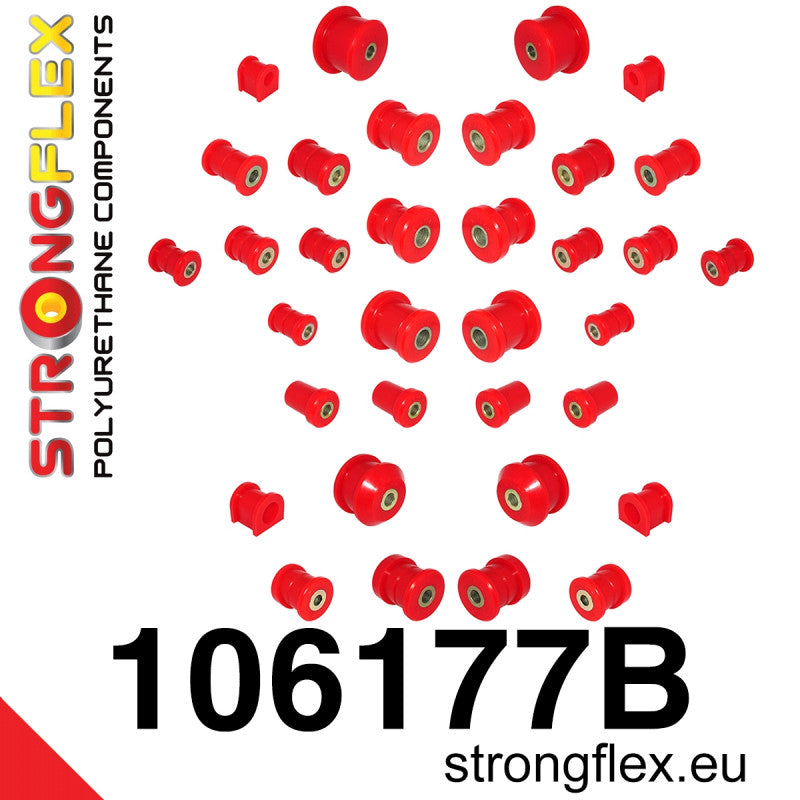

FULL SUSPENSION BUSH KIT ROAD RX8

KIT ID: 106177B

Name: Full suspension bush kit

Fit:

Mazda RX-8

Include:

2 x 101670B Front anti roll bar bush

Diameters:

21mm

22mm

26,5mm

2 x 101671B Front lower arm front bush

2 x 101672B Front lower arm rear bush

2 x 101673B Front shock mount bush

4 x 101674B Front upper arm bush

2 x 101675B Rear trailing arm front bush

2 x 101676B Rear trailing arm rear bush

2 x 101677B Rear upper - front arm bush

2 x 101678B Rear lower - front arm bush

2 x 101679B Rear upper - rear arm bush

2 x 101680B Rear lower - rear arm bush

2 x 101681B Rear anti roll bar bush

Diameters:

12mm

14mm

16mm

17mm

18mm

2 x 101682B Rear beam - front bush

2 x 101683B Rear beam - central bush

2 x 101684B Rear beam - rear bush

2 x 101687B Rear diff mount bush

Pcs/prod: 34

Required/car: 1

Diagrams:

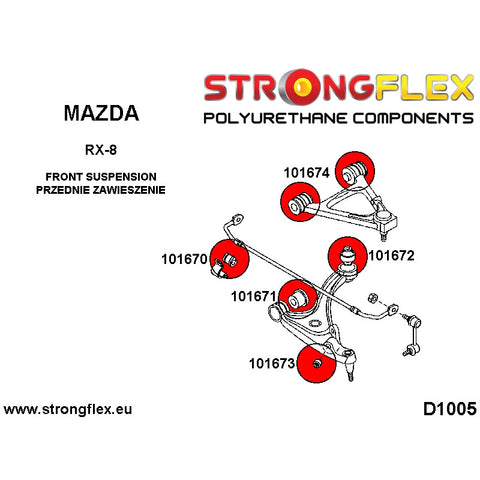

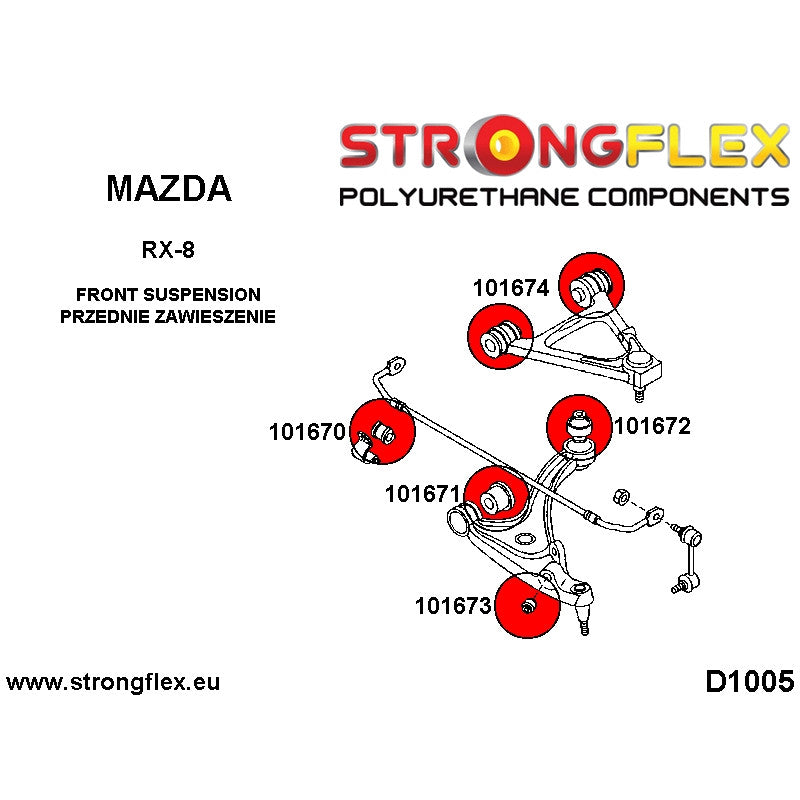

D1005

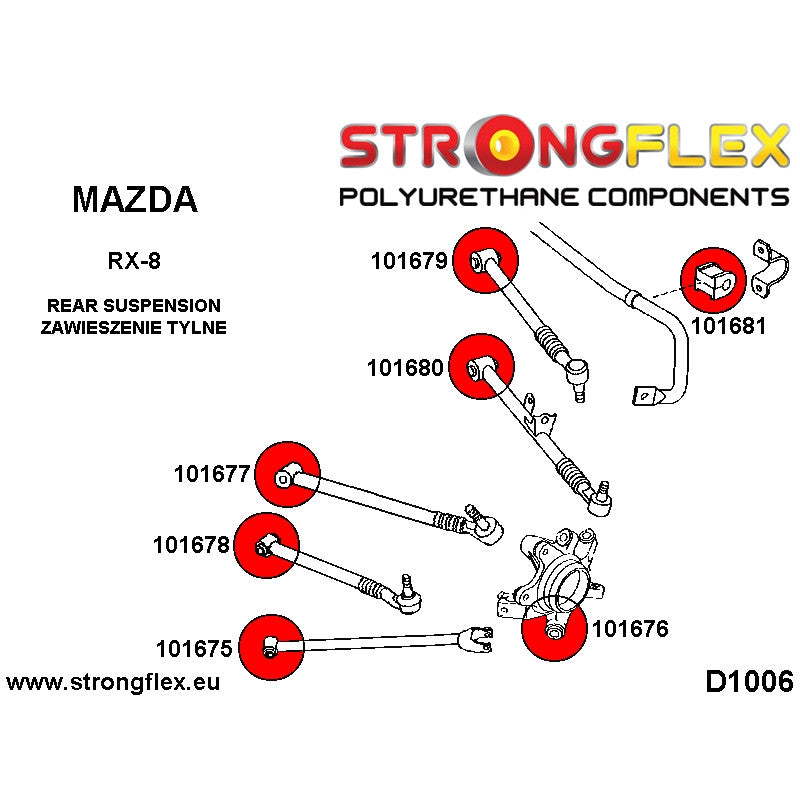

D1006

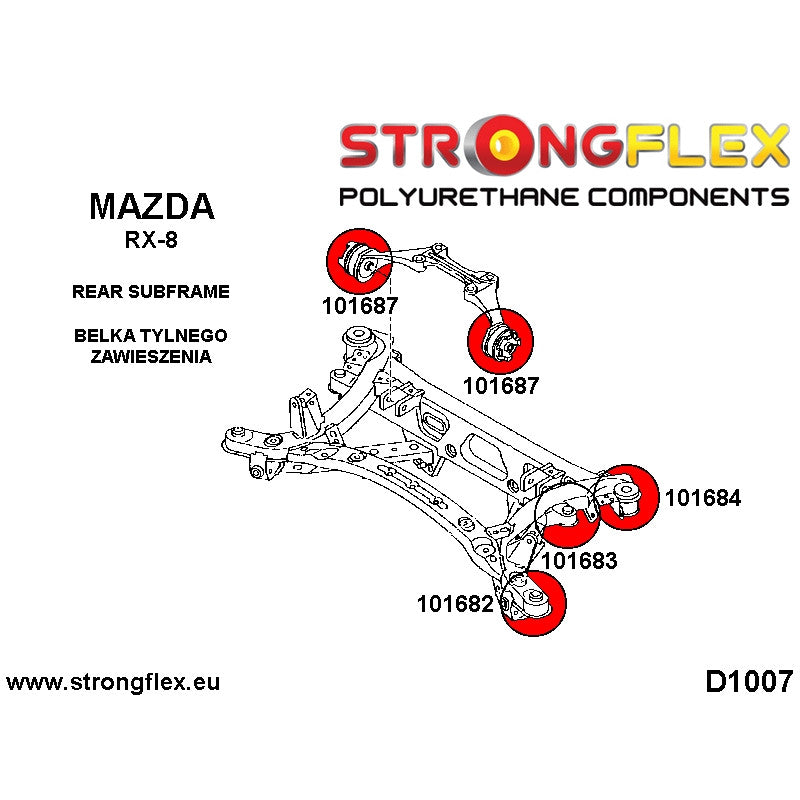

D1007

NOTE!

Measure Anti Roll Bar diameter before placing order.

There are two heights of the rear anti roll bar bushing, 101681 35mm and 101706 27mm.
Please check the height of the bushing before placing order.

Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
