IT ID: 036105A

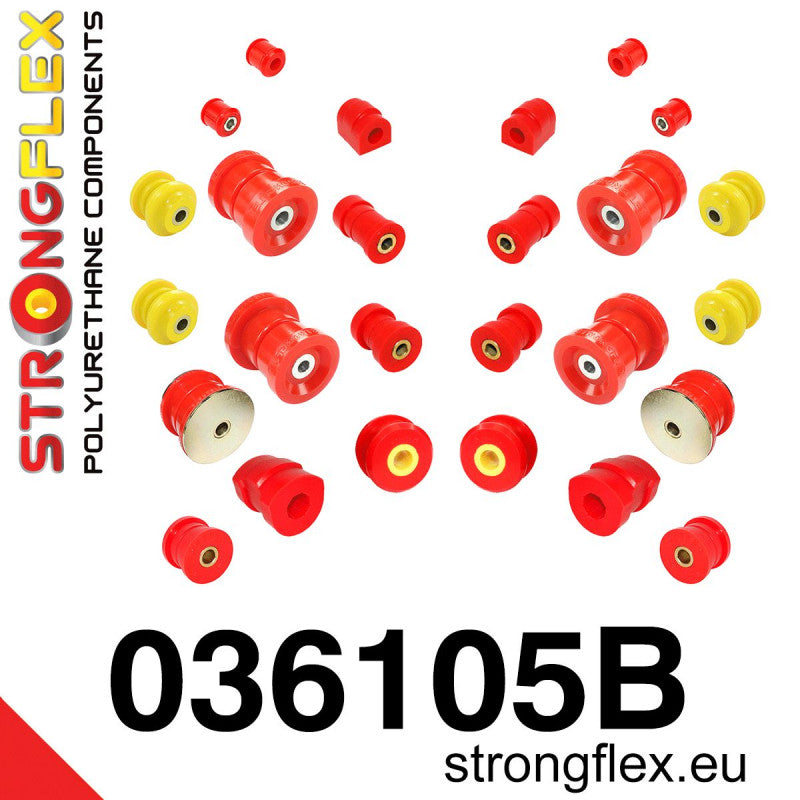

Name: Full suspension bush kit SPORT
- Fit:
- BMW E36 90-99
- BMW E36 90-99 M3
- Include:
-
2 x 031195A Front wishbone bush SPORT
or -
2 x 031369A Front lower arm bushes M3 eccentric SPORT*
- 2 x 031183A Front anti roll bar bush SPORT
-
2 x 031525A Front anti roll bar link bush SPORT*
- 2 x 031173A Rear trailing arm front bush SPORT
- 2 x 031174A Rear control arm upper inner bush SPORT
- 4 x 031175A Rear arm - outer bush SPORT
- 2 x 031176A Rear control arm lower inner bush SPORT
-
2 x 031167A Rear anti roll bar bush SPORT
- 2 x 031789A Rear anti roll bar link to anti roll bar bush SPORT
-
2 x 031790A Rear anti roll bar link to arm bush SPORT
- 2 x 031350A Rear beam - front mounting bush SPORT
-
2 x 031351A Rear beam - rear mounting bush SPORT
- 1 x 031750A Rear differential - front mount bush E36 SPORT*
- or
- 1 x 031736A Rear differential - front mount bush E36 M3 EVO SPORT*
- 2 x 031587A Rear differential - rear mount bush E36 SPORT
Pcs/prod: 27/29
Required/car: 1
- Diagrams:
- D0301

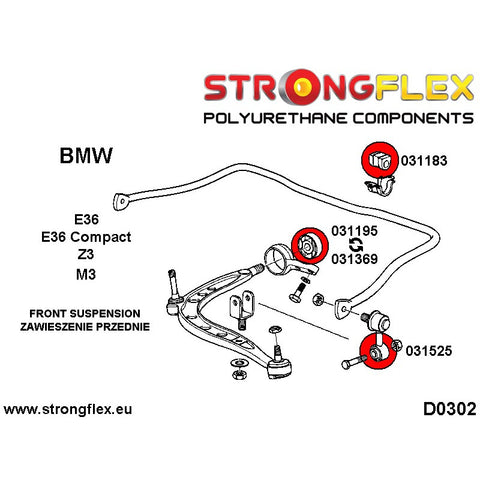

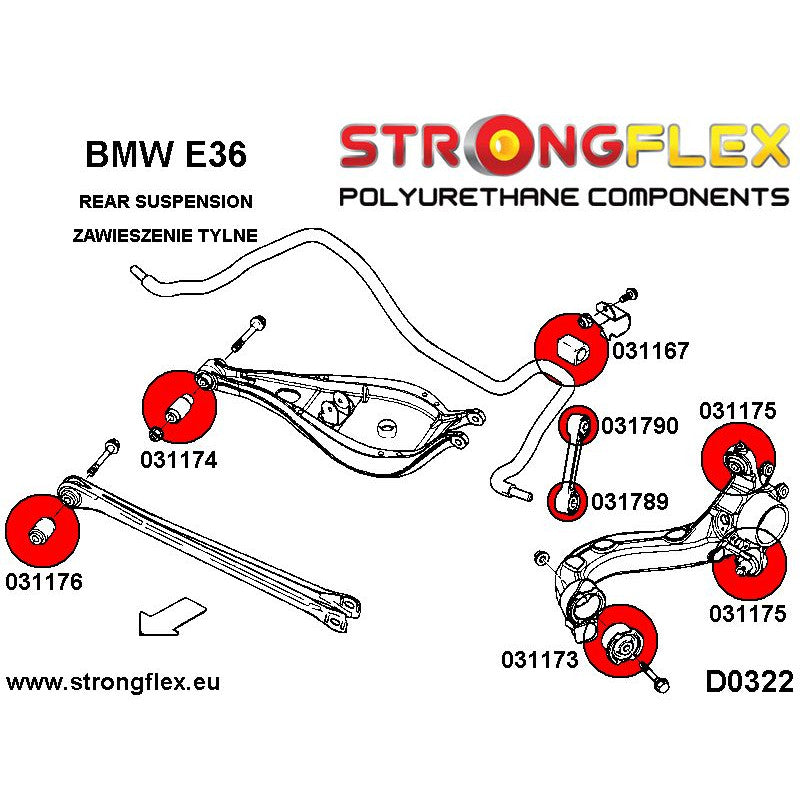

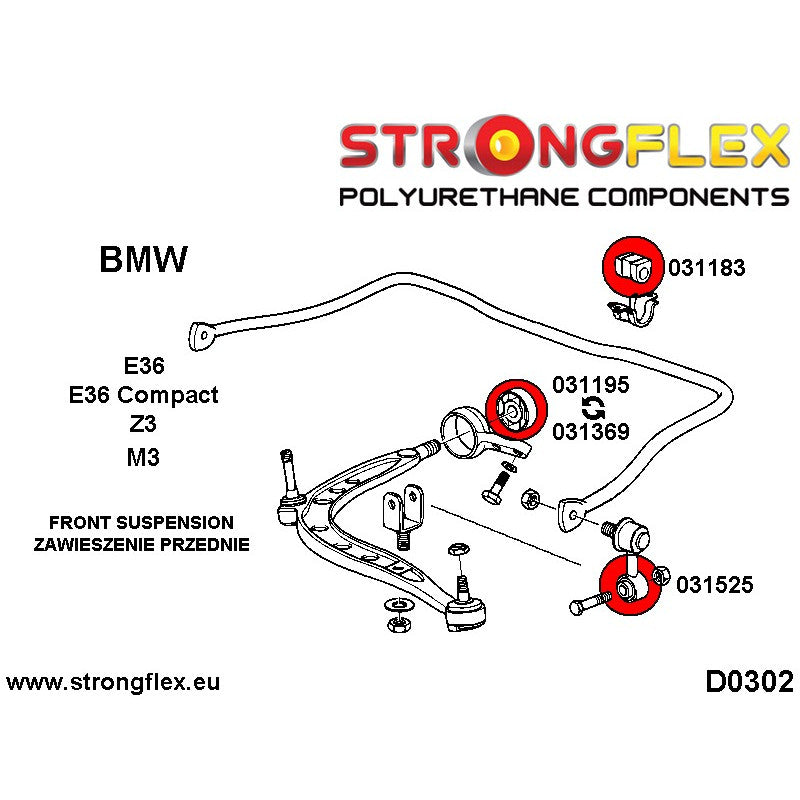

- D0322

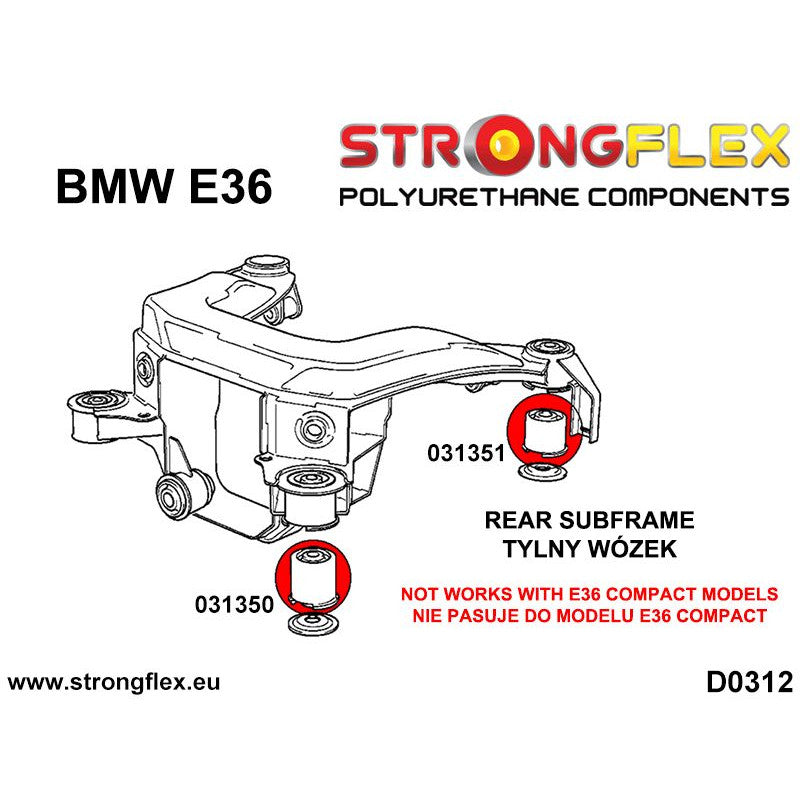

- D0312
- S0306
NOTE! *
Bush 031525 works only with anti roll bar link mount to lower arm, not the shock absorber.
Not fit the E36 M3 and Z3M models.
NOTE!
Measure Anti Roll Bar diameter before placing order.
NOTE! RELATED MAINLY WITH drift, motorsport ect.
Front Wishbone Bushes (031195 or 031369) can be prepared to fit the arm from the E46 model.
E46 Control Arm is longer and larger negative (wheel angle) can be achieved in comparison to the mass and E30/E36 geometry.
Place a note in the order if you are interested in such bushings.
Equivalent of "centric" bush is No. 031737, and "eccentric" 031738.
These bushes can also be purchased separately.
NOTE! *
REAR DIFFERENTIAL - FRONT MOUNT BUSH
If you have a model E36 M3 EVO 3.2 where the differential is mounted on a separate handle, select the bushes 031736
The other E36 models fit the 031750 bush.
See attached photo S0306
Hardness: 90ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
