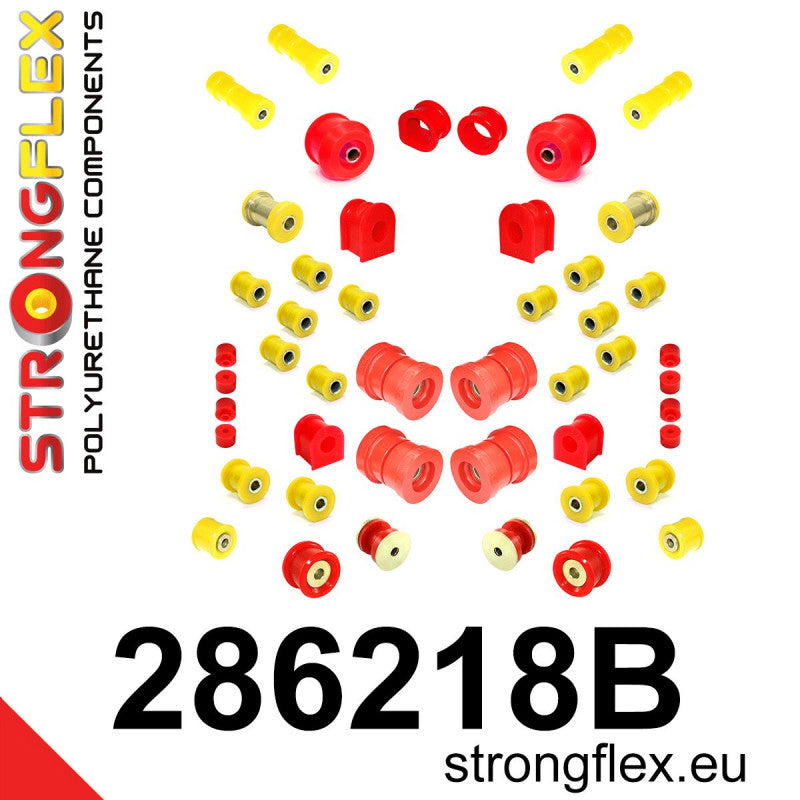

FULL SUSPENSION BUSH KIT 300ZX Z32 ROAD

KIT ID: 286218B

Name: Full suspension bush kit

Fits:

• Nissan 300ZX Z32 90-96

Include:

• 2 x 281262B Front lower radius arm to chassis bush
• 2 x 281957A Front upper arm - upper bush SPORT
• 2 x 281958A Front upper arm - lower bush SPORT
• 2 x 281397A Front inner track control arm bush 35mm SPORT
• 2 x 281207B Front anti roll bar bush
• 8 or 12 x 281218A Rear arm bush SPORT
• 4 x 281267A Rear lower control arm bush SPORT
• 2 x 281268B Rear anti roll bar bush
• 4 x 281269B Rear anti roll bar link bush
• 4 x 281270B Rear beam mounting bush
• 1 x 281261B Steering rack mount bush
• 2 x 281849B Rear diff mount - front bush
• 2 x 281850B Rear diff mount - rear bush
  • 2 x 281959A Rear lower shock mount bush 45mm SPORT
    or
  • 2 x 281961A Rear lower shock mount bush 50mm SPORT

  Notes:

  281218A
  With HICAS system 8pcs, without HICAS 12pcs





  281261B
  Diameter 45mm, 48mm or 50mm.



  281959A or 281961A
  This bush works only with aluminium steering knuckle and for the shock absorber with an appropriate mounting (see D2823)

  281959A - 45mm outer diameter, 42mm lenght

  281961A - 50mm outer diameter, 50mm lenght

Some bushes in the kit are only available in 90ShA hardness (yellow) because the original rubber bush is made of a hard rubber compound.
The use of the 80ShA hardness bush (red) will reduce the driving of the car to the original rubber bush.

Pcs / Kit: 37/43

Diagrams:

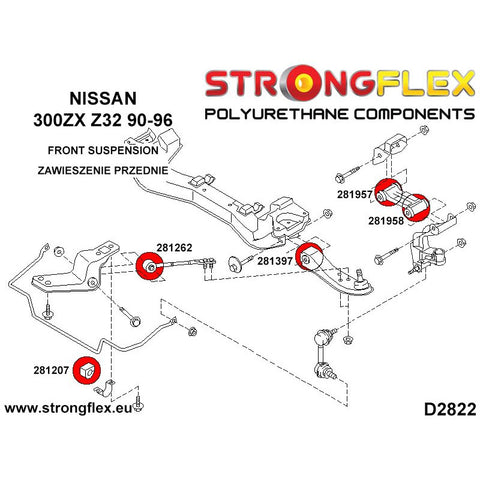

D2822

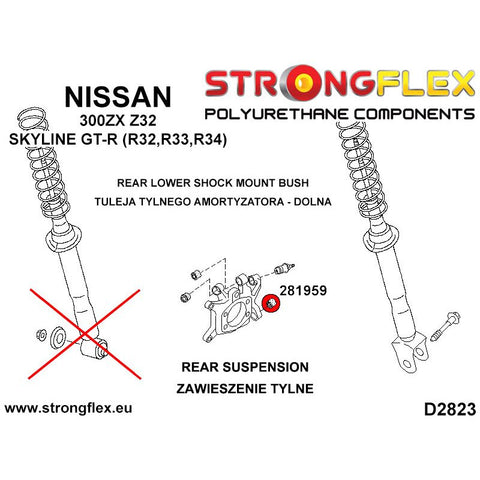

D2823

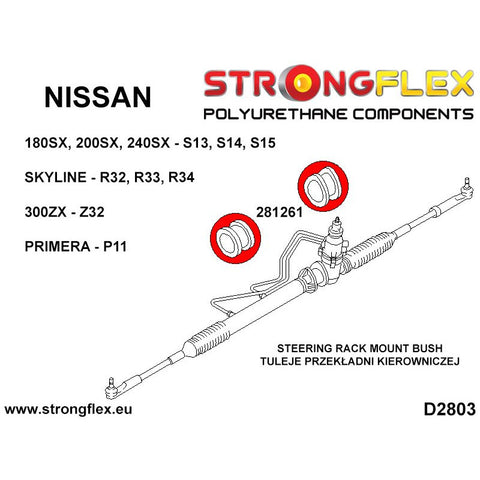

D2803

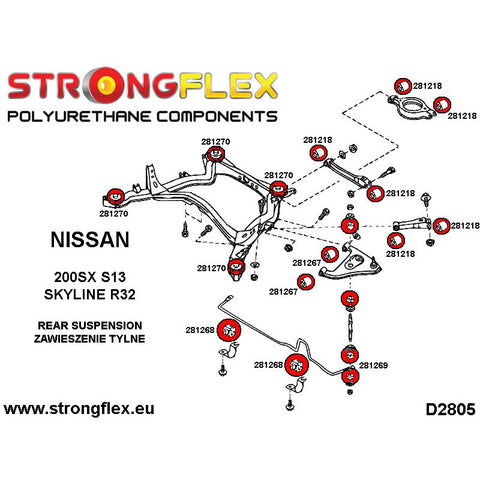

D2805

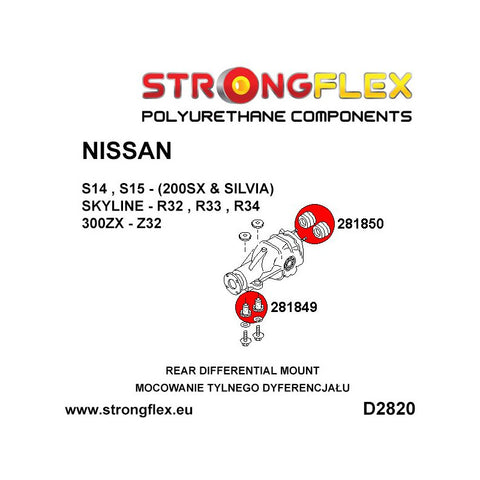

D2820

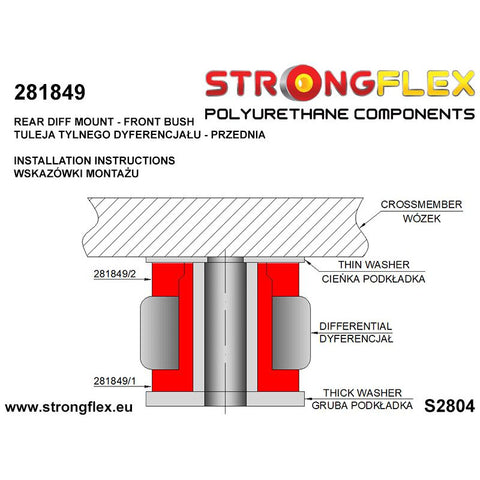

S2804

Hardness: 80/90ShA

Material: POLIURETAN (PUR/PU)

To every product we add grease!
