FULL SUSPENSION BUSH KIT CIVIC/CRX EC,ED,EE,EF,EX

About the Product

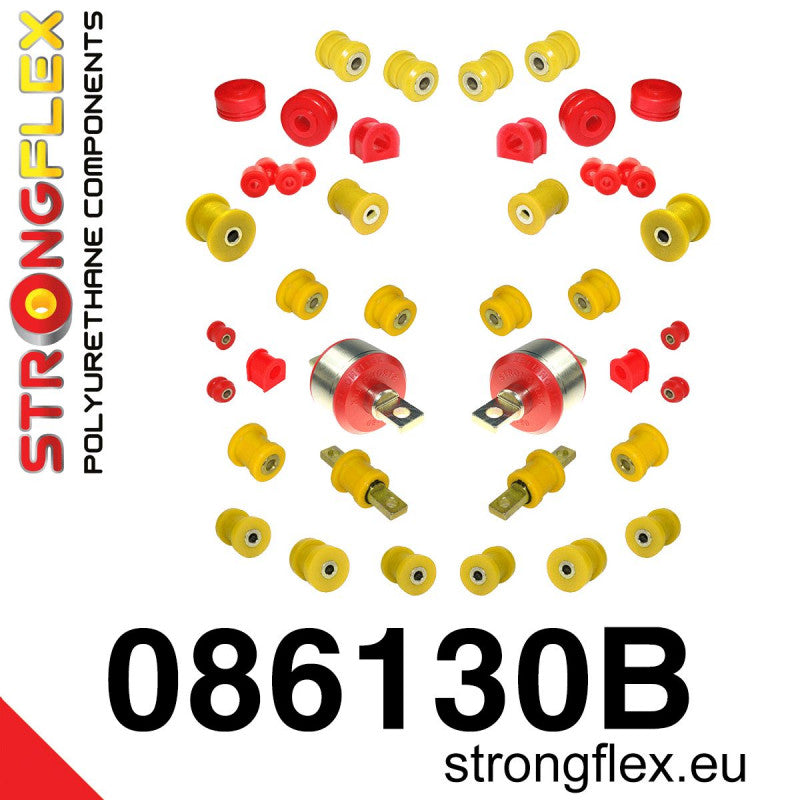

Reference: 086130B

Product name: Full suspension bush kit polyurethane

Fits to:

• Honda CRX II (88-91)
• Honda Civic IV (88-91) EC/ED/EE/EF/EX



Includes:

• 4x 081192A: Front upper wishbone bush SPORT
• 2x 081094A: Front wishbone - outer bush SPORT
• 2x 081164A: Front wishbone inner bush SPORT
• 4x 081165B: Front tie bar to chassis bush
• 8x 081109B: Front eye bolt mounting bush
• 2x 081229B: Front anti roll bar bush


• 4x 081101A: Outer arm to hub bush and inner track arm bush 31mm SPORT
  or
• 4x 081107A: Outer arm to hub bush and inner track arm bush 35mm SPORT


• 2x 081102A: Rear lower shock mounting bush SPORT
• 4x 081108A: Rear toe link arm bush SPORT
• 2x 081103A: Rear upper outer link/hub bush SPORT
• 2x 081104A: Rear trailing arm mount bush SPORT
• 2x 081105B: Rear trailing arm mount bush
• 2x 081171B: Rear anti roll bar bush

• 2x 081196B: Rear anti roll bar link bush
• 2x 081521B: Rear anti roll bar link bush

Diagrams:

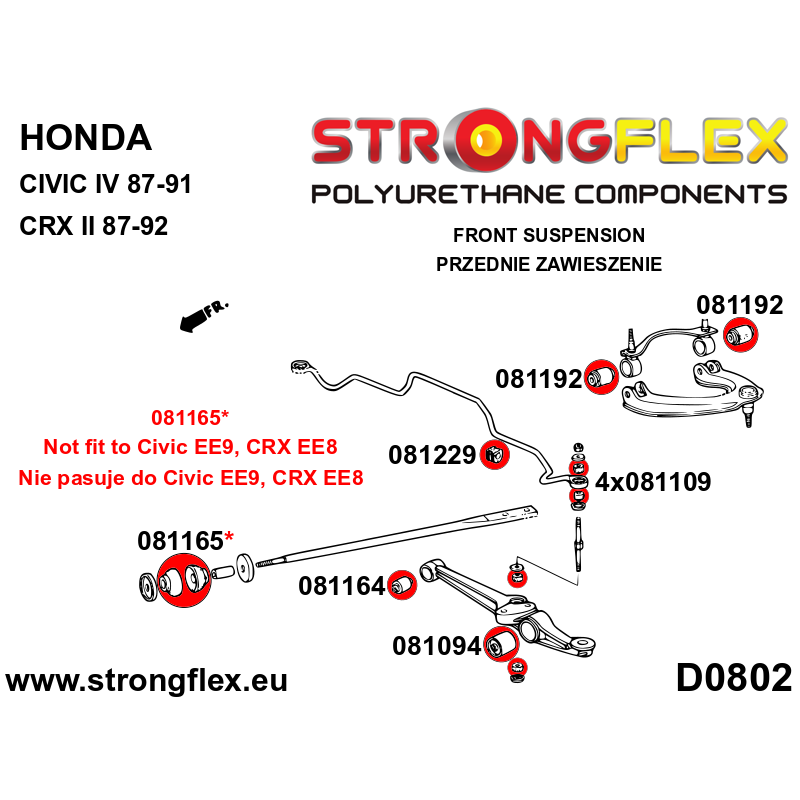

• D0802

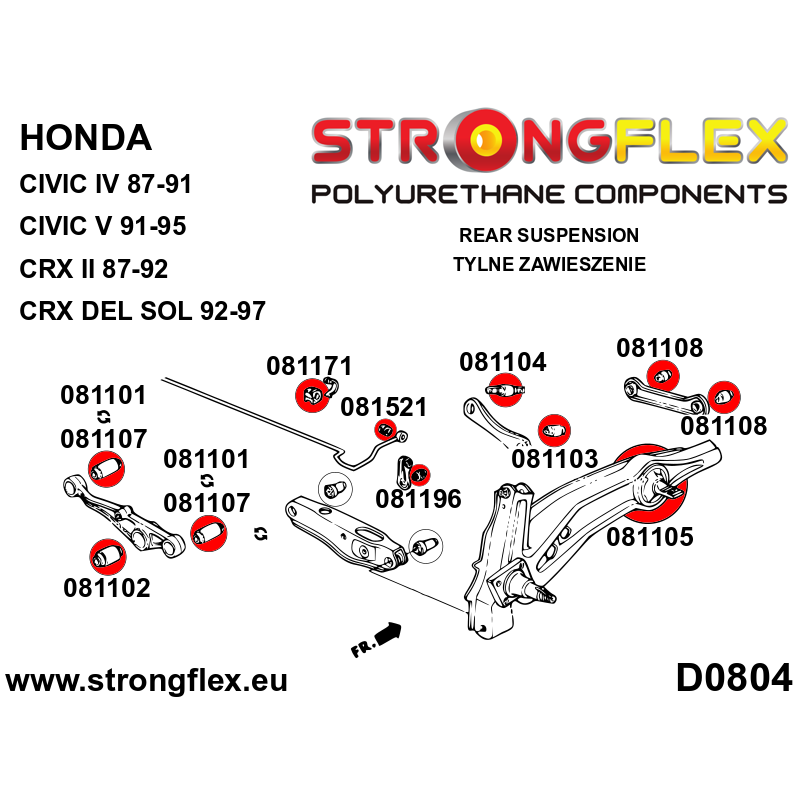

• D0804

Notes

• The 081165 bushing does not fit the Civic EE9 and CRX EE8.


• For bushing 081105A:
  To install the bush, you need the outer metal ring from the old original bushing. The old sleeve should be burned or cut out.
  Bushing 081105A is not a replacement for the original bushing, installing it will stiffen the suspension.


• Before purchasing, check the diameter of the rear lower arm bushing (081101 31mm or 081107 35mm).



Pcs / KIT: 44

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
