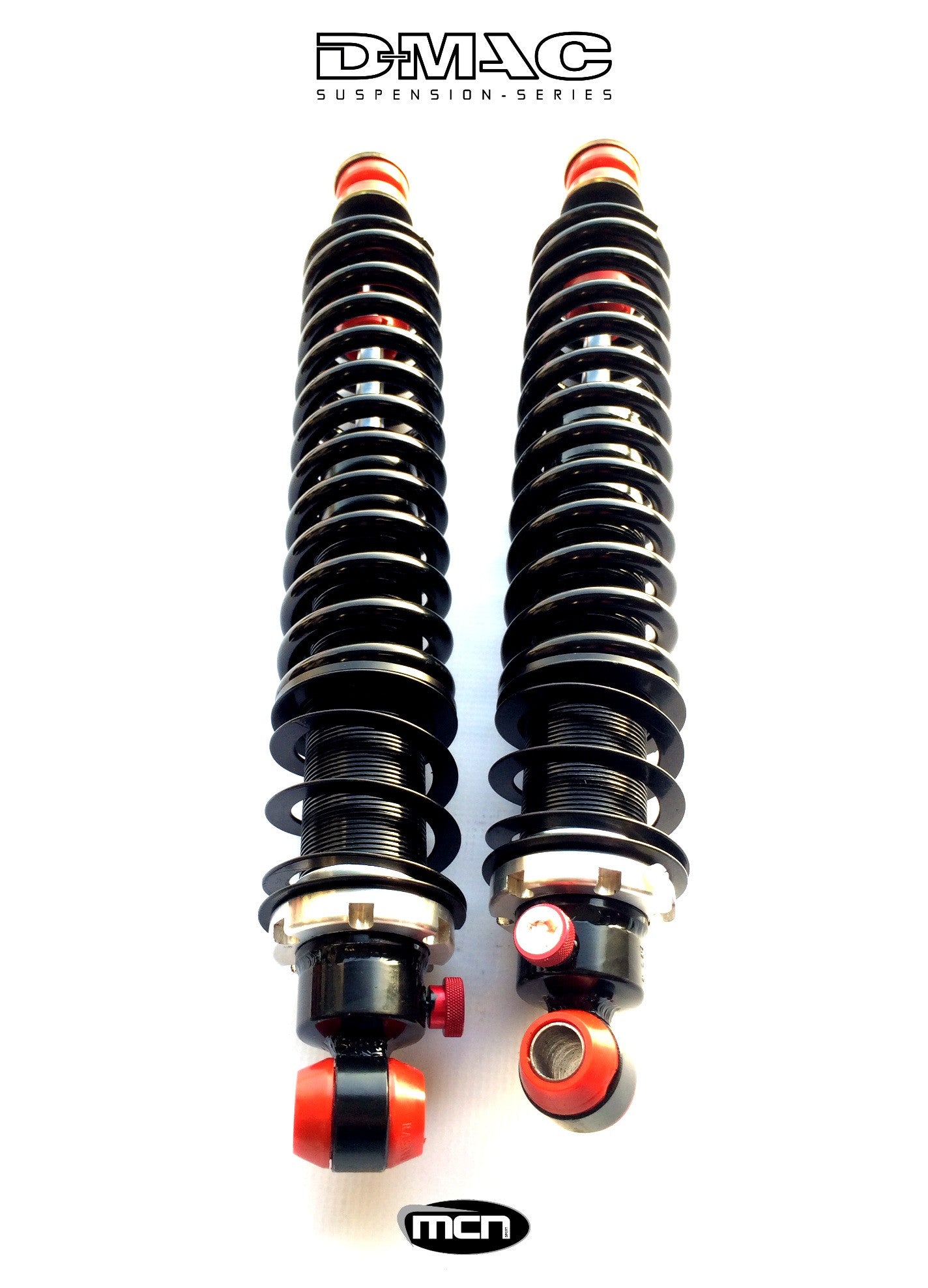

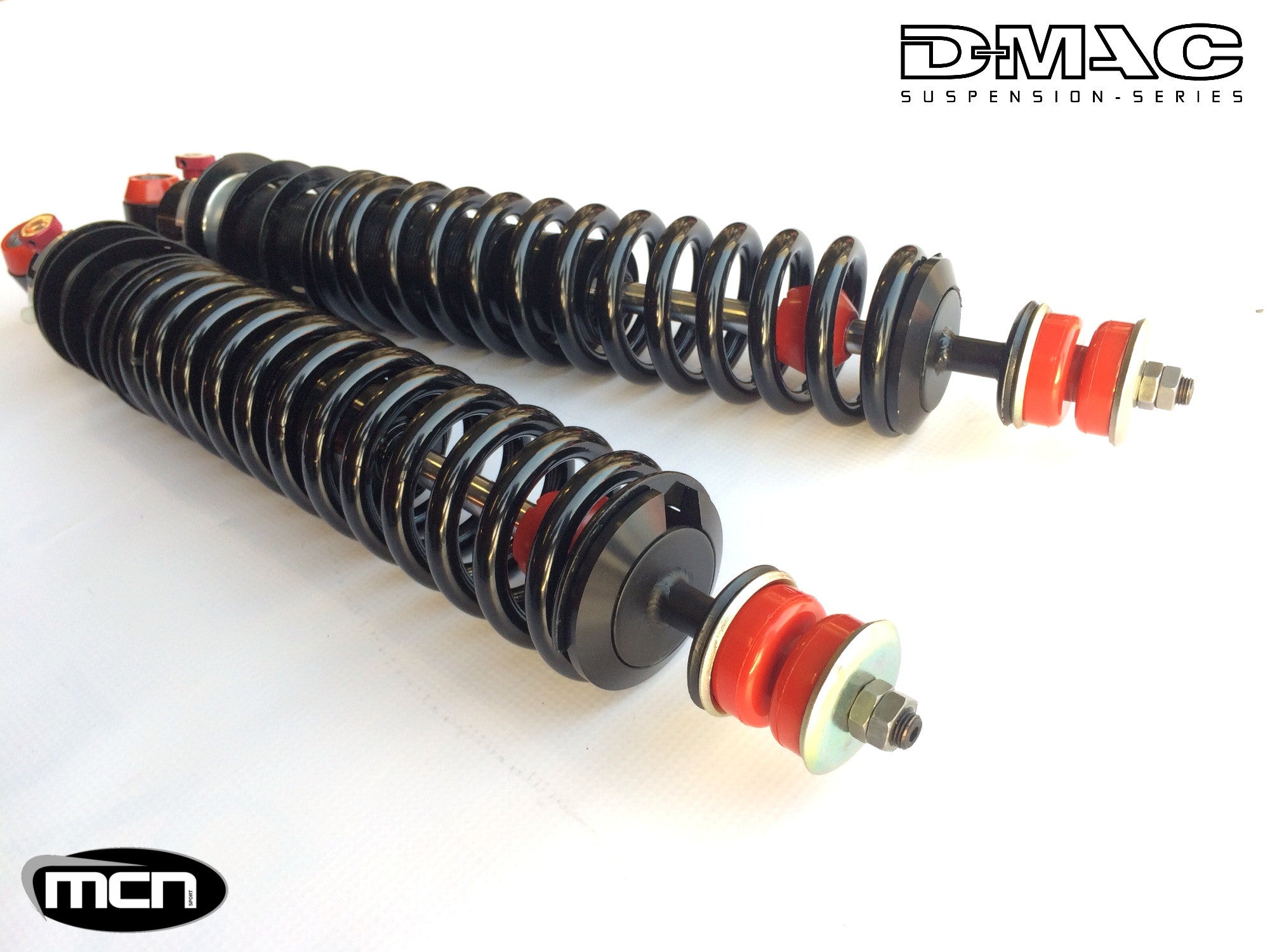

D-MAC AE86 REAR COILOVERS (LONGSTROKE) PAIR
** Also direct fit to RX30 Cressida **
The D-Mac/AVO Rear Coilover System was developed by Darren McNamara to cater for the ae86 enthusiast not running a very low ride height.
Damper length from centre bottom to centre top mounts:
Fully compressed 388mm
Fully Extended 560mm

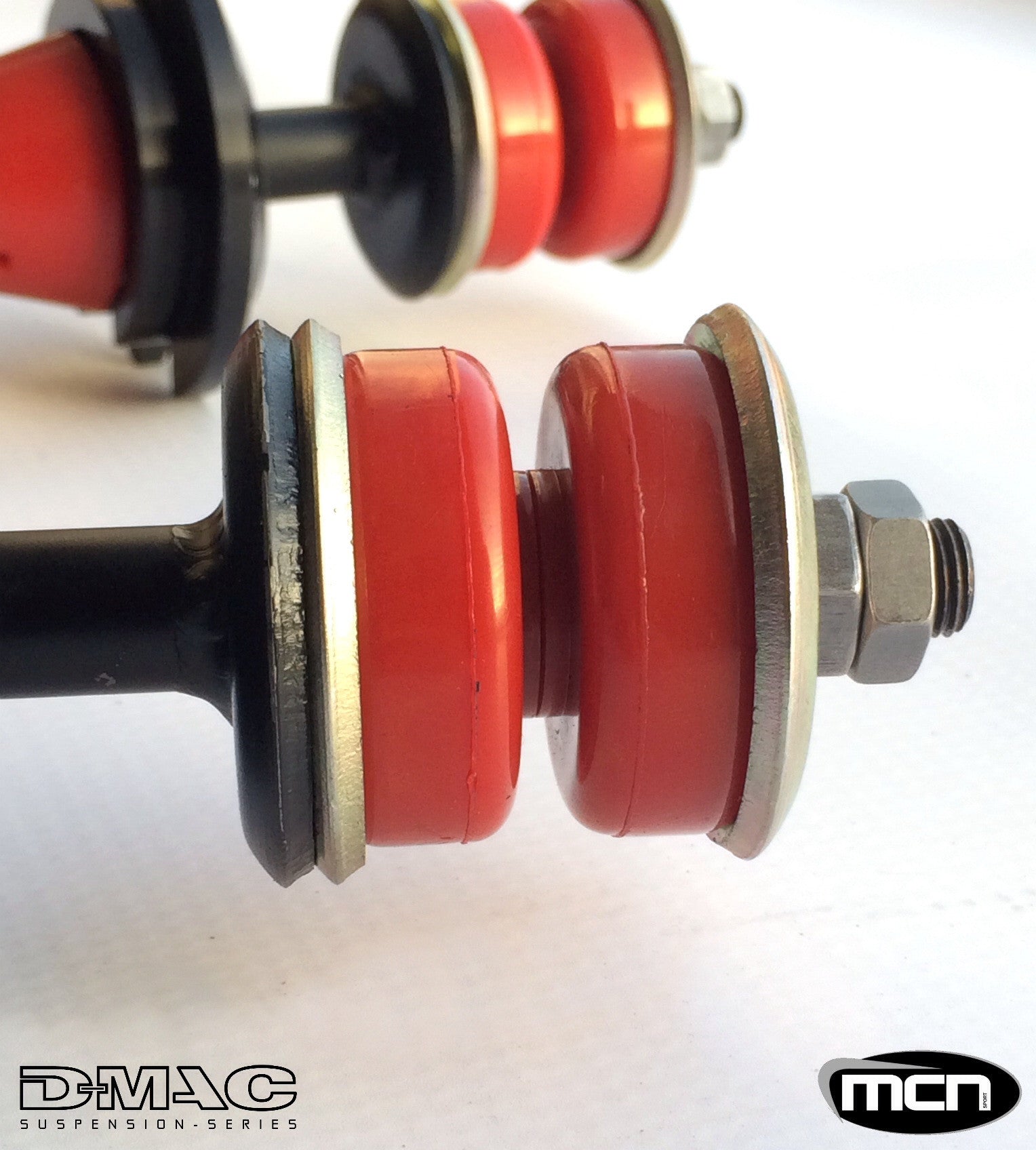

The Rear Coilover System was created to provide the advantages of height adjustable coilover systems and improve on other manufacturers poor designs. The D-Mac/AVO Rear Coilover System fits perfectly to the rear of the ae86 without any modifications to the chassis or axle. The D-Mac/AVO Rear Coilover System has full dampening adjustment and comes with a poly bushed axle mount and poly top bushes. These are specially designed to work with the ae86 chassis and will out perform all other ae86 suspension no problem.
A common question we are asked is can the D-Mac/AVO rear coilover system be fitted without strengthening the ae86 shock tops, floor pan or lower axle mount? Well yes it can! that is the way they were designed to work. We have ran these for years on all the MCNSPORT ae86's and sold to customers all over the world with not one report of any problems
Price is per pair including springs and tender springs.
Spring rate guide:
We would always advise a customer to select their rear spring rate with respect to the front, in order to keep the car's balance intact for the desired ratio of over to understeer.
Standard: 250lbs/in sq (4.5kg/mm2). These are our traditional fast road or track spring and work very well on all types of drift use even on 86's running quite wide semi slick rear tyres.
Compromise: 200lbs/in sq (3.6kg/mm2). These are quite a good compromise between handling and comfort for a street AE86.
Comfort/Wet Use: 150lbs/in sq (2.7kg/mm2). These are useful as a comfortable street spring on the rear and also useful as a wet weather drift spring to activate more grip.
Track/Grip: 300lbs/in sq (5.4kg/mm2). These are suited to a more track/race setup which may use slick tyres and some aero.
We can also supply much stiffer springs for time attack/race cars upon request.
