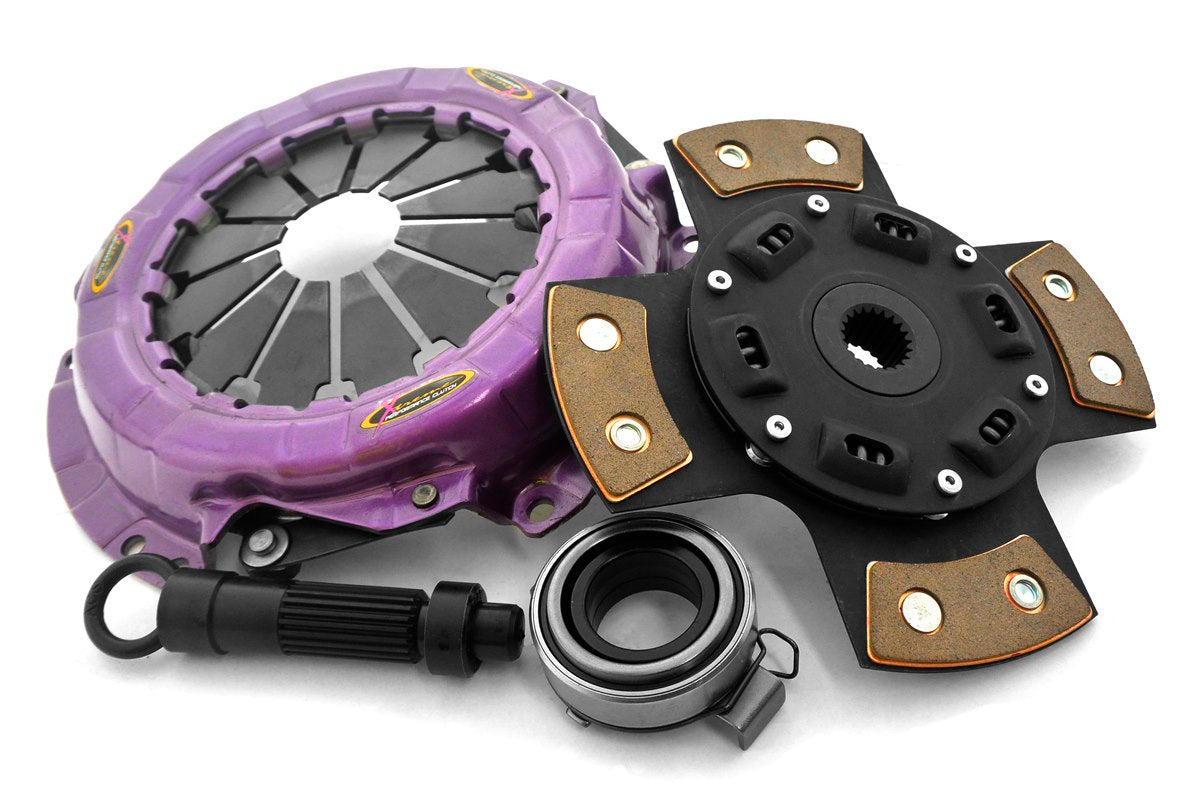

Corolla / Celica / Yaris / Avensis / Lotus Clutch Kit - Xtreme Performance Heavy Duty Sprung Ceramic 390Nm Stage 2

SPECIAL ORDER ITEM

USUALLY IN STOCK IN EUROPEAN WAREHOUSE WITH APPROX 1 WEEK DELIVERY

IF NOT IN STOCK IN EUROPE DELIVERY COULD BE FROM 3 WEEKS TO 4 MONTHS

PLEASE CONTACT US BEFORE ORDERING TO CHECK STOCK LEVELS

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 390Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

• Clutch Disc Diameter (mm)
  215
• Clutch Disc Spline Count
  21
• Clutch Disc Spline Diameter (mm)
  24.1
• Torque (Nm)
  390
• Flywheel Step
  +.5mm/.020""
• Design
  Single Plate
• Stage
  Stage 2
• Tech Bulletins


• Clamp Load


• Recommended for
  Track - Stage 2
• Ring Gear Tooth count


• Additional infotmation


• Weight [KG]:
  6.36
