Xtreme Clutch Conversion kit - TOYOTA JZ - BMW 10x35mm (Suits 12mm Adapter Plate)

$1,934.00

KTY23579-2E

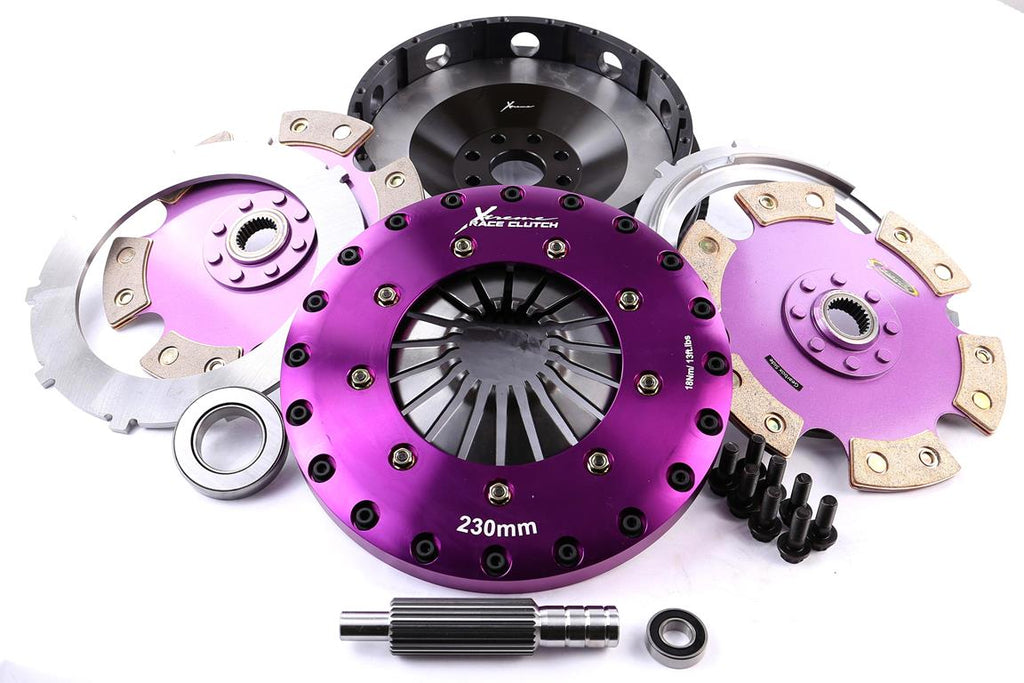

Xtreme Clutch Conversion kit - TOYOTA JZ - BMW 10x35mm

Toyota JZ - BMW 10x35mm spline. Rolled Diaphragm. Crank to fingers 113.8mm. BMW conversion release bearing, pilot bearing and alignment tool included. Suits 12mm gearbox adapter plate.

  • Clutch Disc Diameter (mm)
    230
  • Clutch Disc Spline Count
    10
  • Clutch Disc Spline Diameter (mm)
    35
  • Torque (Nm)
    1830
  • Flywheel Step
    +3.8mm
  • Design
    Twin Plate
  • Stage
    Multiplate - track use only
  • Tech Bulletins
  • Clamp Load

  • Recommended for
    Motorsport
  • Ring Gear Tooth count

  • Additional infotmation

  • Weight [KG]:
    19.47
