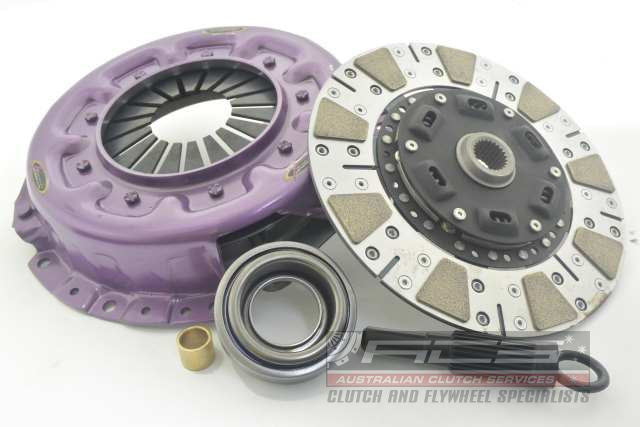

SR20DET Clutch Kit - Xtreme Performance Heavy Duty Cushioned Ceramic 800Kg (35% inc.) 570Nm KNI24003-1C

€ 470.00 EUR

Xtreme Performance - Cushioned Ceramic kit /-1C

Recommended for: Motorsport Applications



These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.



Specifications:
  • Torque capacity 570Nm
  • Clamp load 800Kg 35% Increased over standard
  • Cushioned Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories



The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.





Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.



What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

  • Torque (Nm)
    567
  • Clamp Load
    800Kg (35% inc.)
  • Flywheel Step
    0
  • Clutch Disc Diameter (mm)
    240
  • Clutch Disc Spline Count
    24
  • Clutch Disc Spline Diameter (mm)
    25,5
  • Recommended for
    Track - Stage 2
  • Design
    Single Plate
  • Stage
    Stage 2
  • Weight [KG]:
    9.63
Make Model Engine / Year Notes
NISSAN 180 SX 2.0 119KW (1991-1994)
NISSAN 180 SX 2.0 Turbo 147KW (1991-1994)
NISSAN 200 SX 2.0 i 16V Turbo 147KW (1994-1996)
NISSAN 200 SX 2.0 Turbo 162KW (1994-1999)
