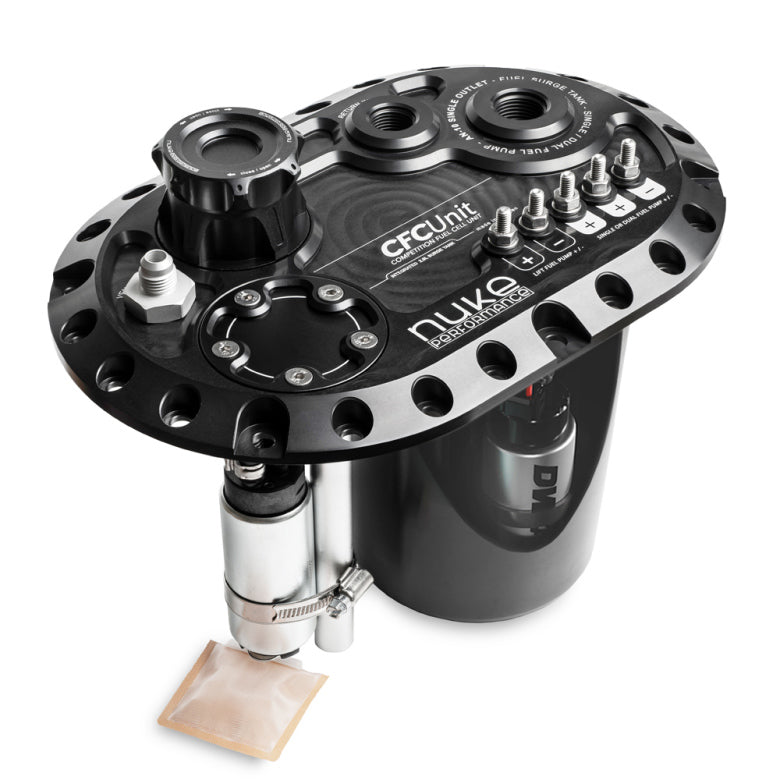

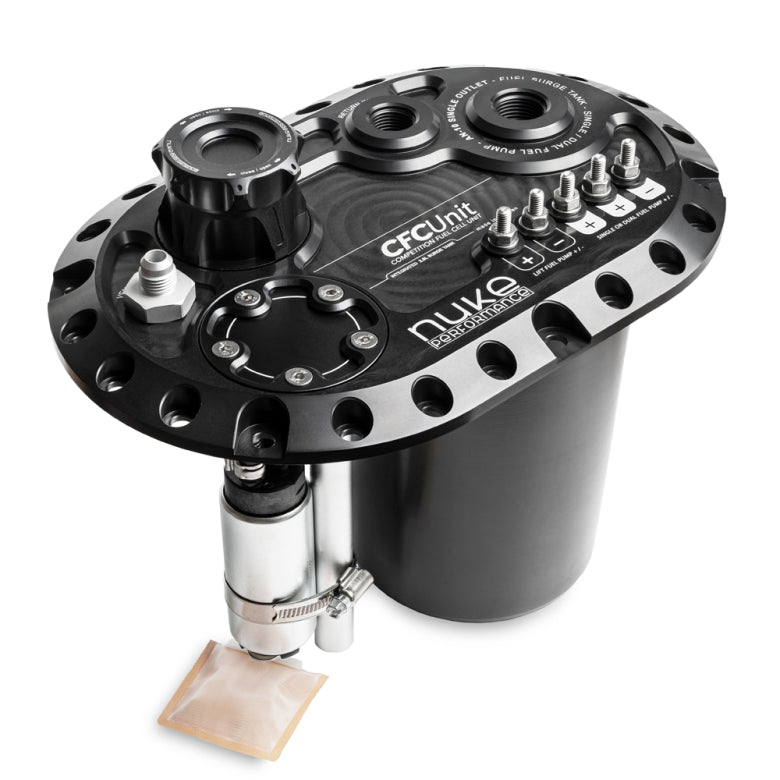

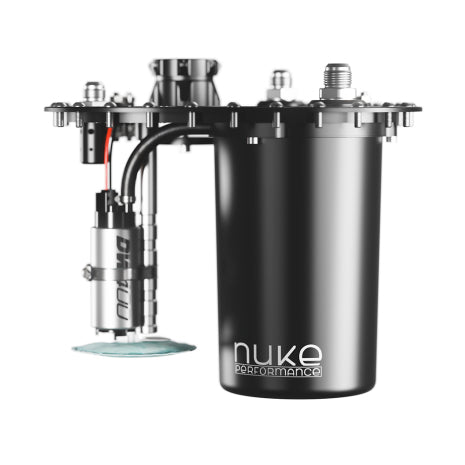

Competition Fuel Cell Unit, with an integrated surge tank (CFC Unit)

About the Product

The Nuke Performance CFC Unit, specially developed for ATL and Fuel Safe fuel cells, with integrated fuel surge tank and fuel pump hanger. Fits the most common fuel cells for your every need.
The next-gen and the perfect solution for a modern, lightweight, safe, and functional fuel setup for serious builds for track days, time attack, drifting, or any other type of motorsports. Eliminates fuel starvation during racing.

 Fits your standard aftermarket Fuel Cell
 Low weight "drop-in surge tank" for your fuel cell
 Integrated 2 liter Fuel Surge Tank functionality
 Single AN-10 ORB outlet, for a trouble-free installation
 Fits single or dual high-pressure fuel pumps
 New high-profile CFC Unit that fits all ATL fuel cells
 Low profile fuel filler cap with integrated roll-over valve
 100% proof for all types of fuel, including ethanol

The Nuke Performance CFC Unit eliminates the need for an external surge tank which is other needed when running a fuel cell, it is a perfect use for fuel injected systems. Use with PWM control, combined with the CFC Unit is an effective solution to prevent emerging heat when running numerous fuel pumps. This is the best way to eliminate fuel starvation that may occur in motorsports. And with the new high-profile version of the CFC Unit, thanks to its less mounting depth, it fits close to all fuel cells on the market.

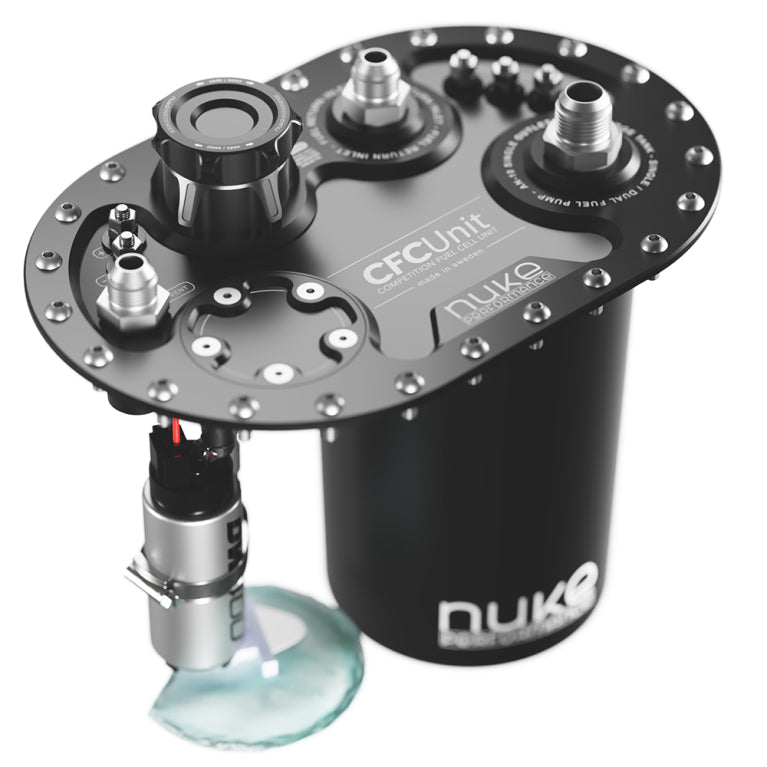

 Integrated 2-liter surge tank, billet fuel pump hanger for 1-2 fuel pumps

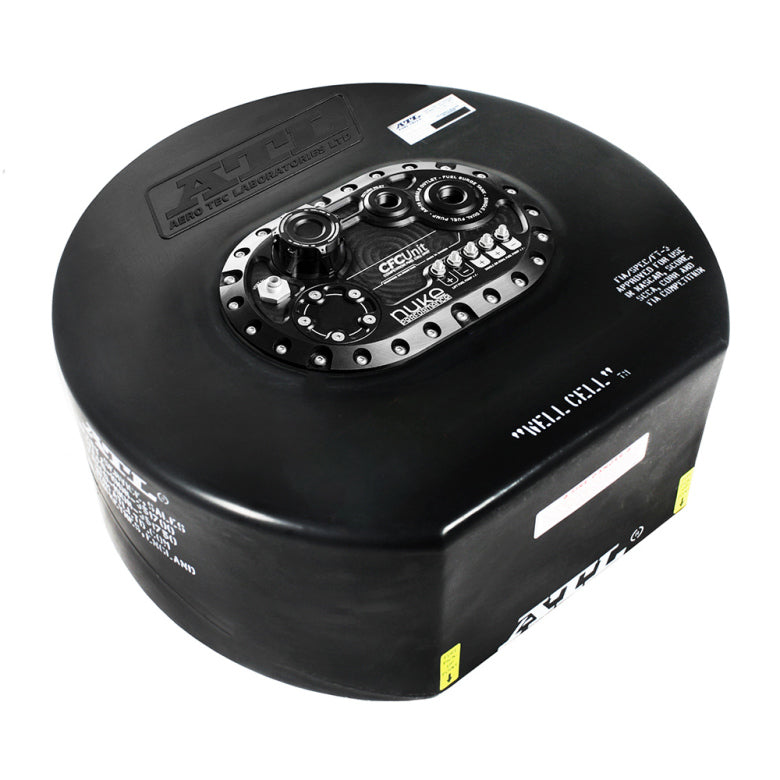

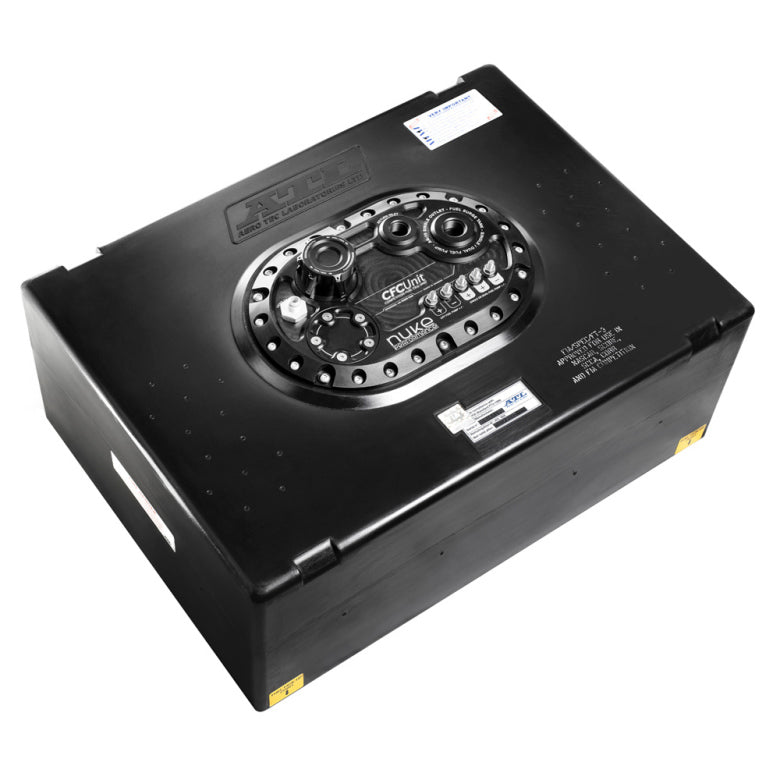

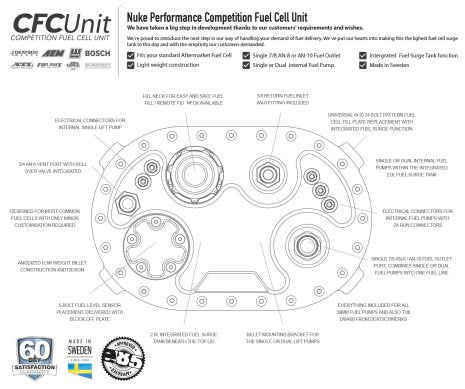

The unique CFC Unit from Nuke Performance works as a fill plate replacement for fuel cells with the standardized 6x10" 24-bolt pattern fill plates from manufacturers such as ATL, Premier, Pyrotect, Fuel Safe, Radium, etc. The CFC Unit is the perfect solution for a simplified high performing fuel system where safety is of uttermost importance. With the integrated drop-in surge tank, this setup eliminates the need for a space-consuming external surge tank.

 The most lightweight solution for your motorsports fuel system
 Fits most common FIA-homologated fuel cells

With all the needed fuel pumps mounted within the fuel cell itself, this product is the only thing you need. The simplicity of its design frees up space and weight while increasing safety, as fewer fuel line fittings are necessary and no external fuel pumps are used. With its unique low-profile billet design, this is the most lightweight solution on the market and lets you save crucial weight in your racecar.

 Internal high-pressure fuel pumps, for any need between 200 - 2000hp

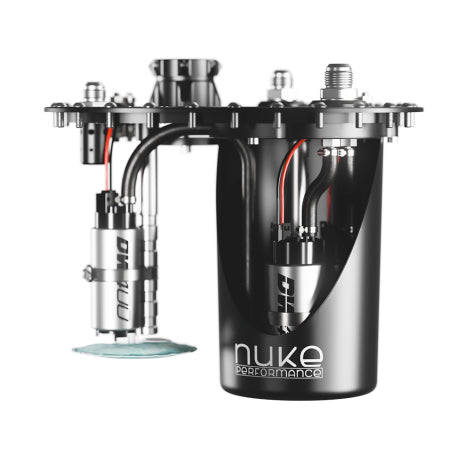

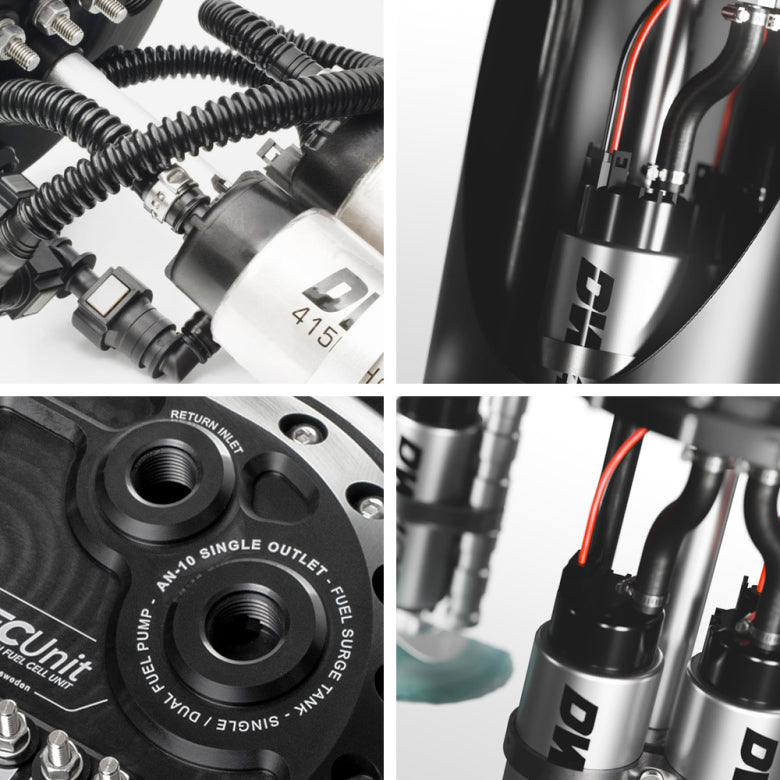

The CFC Unit - Competition Fuel Cell Unit, with an integrated fuel surge tank, uses a billet fuel pump hanger and fits a single or dual high-pressure fuel pump from Deatschwerks, AEM, Ti Automotive, Walbro, Bosch, Fuelab, Aeromotive, and many more. It fits all common 39mm fuel pumps, as well as the larger Deatschwerks DW400, Walbro GST400/GST450/GST520, Bosch BR540, and Aeromotive Stealth 450. To make sure that the fuel surge tank is always filled, one fuel pump is mounted within the fuel cell, mounted to a height-adjustable aluminium mount, and works as a lift fuel pump. This solution is ready to deliver steady fuel flow for demands anywhere between 200-2500 horsepower without fuel starvation, even during demanding driving conditions thanks to the internal surge tank. This has become an extremely popular solution for all types of motorsports.

 Fits Deatschwerks DW400 in a single or dual setup
 Single or dual Ti Automotive / Walbro GST450 / GST 525
 All 39mm fuel pumps such as AEM 320L E85 and DW300
 Safe for all types of fuel, including alcoholic fuels such as E85

The high-profile CFC Unit fits all of the most common fuel pumps. Together with the Nuke Performance fuel pump mounting kits, it has never been this easy to set up a high-performance fuel system. And every little part of the CFC Unit is guaranteed to work perfectly with alcoholic fuels, such as ethanol even during long-term usage.

 How to mount fuel pumps within the Nuke Performance high-profile CFC Unit for ATL Saver cell fuel cells?
The single fuel pump mounted in the fuel cell functions as a pickup fuel pump that ensures that the high-pressure fuel pumps within the oversized 2 liter (0.53 gallons) surge tank always have enough fuel to maximize fuel flow and minimize the risk of starvation that can seriously harm your engine. For more information, The high-profile edition CFC Unit is delivered with everything you need to install the fuel pumps of your selection, but we recommend adding one of our fuel pump mounting kits for optimal functionality. All fuel pumps are securely mounted in all conditions thanks to the billet fuel pump brackets.


 NEW : The Fuel Cell Vent Kit AN-6 fits straight to the vent valve of the CFC Unit for easy installation
The CFC Unit is equipped with a roll-over protected AN-8 (3/4 UNF) to AN-6 Male vent fitting, and the easiest way to route the vent line into a safe and functional position is to accommodate a fuel cell vent kit from Nuke Performance. Available in several sizes, from AN-6 to AN-12, you can choose the kit that suits your needs the best. If you want to use a larger vent line than AN-6, you also need to swap the fitting on the vent valve. The vent kit is delivered with a 1m (3.3ft) nitrile fuel hose and a universal air filter that prevents debris to get into your fuel system.

 Which brands and what type of fuel cells can be used with the high-profile version of the CFC Unit from Nuke Performance?
The high-profile CFC Unit is developed out of the low-profile version, but with the addition of being able to, without any modifications, mount the CFC Unit into the popular Saver Cell fuel cells from ATL, and Fuel Safe fuel cells. These fuel cells have a smaller opening than other common fuel cells, demanding this new design.

One benefit of this higher profile design is that it requires less minimum mounting depth, at 197-mm (7.75") instead of the 219-mm from the previous slim-design version. This high-profile version offers the minimum mounting depth and fits smaller openings while boasting the same undisputable top-notch functionality and just a little bit more weight than the low-profile lightweight version.

Select your preferred CFC Unit that fits according to your selected fuel pump, or fuel cell setup. This version is designed with a high-profile design that fits straight to an ATL saver cell, or fuel cells with less available mounting depth, without the need for any modification prior to installation.

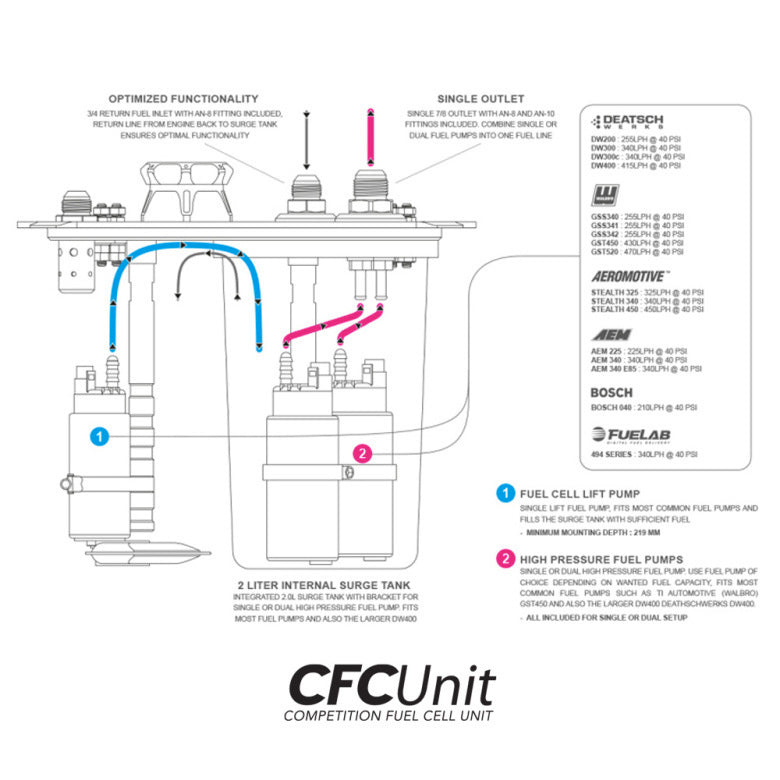

 How does the Nuke Performance Competition Fuel Cell Unit work?
The CFC Unit works as a fuel pump hanger with an integrated surge tank for motorsports applications where safety and functionality are of uttermost importance. It is designed to mount directly to an aftermarket fuel cell with a standardized 24-bolt pattern. For more information about the functionality of the CFC Unit, view our Youtube video explaining its functions or visit our FAQ guide that tells you more about the CFC Unit.
 Youtube : How does the CFC Unit from Nuke Performance work?
 FAQ : How does the CFC Unit work?


 How to connect fuel pumps to the electrical connectors and fuel lines?

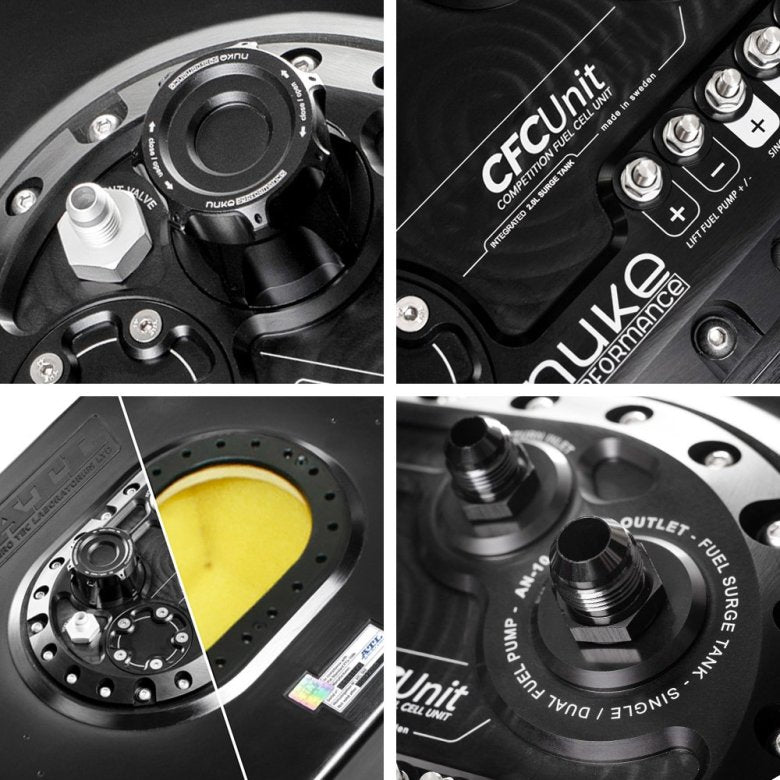

The CFC Unit from Nuke Performance utilizes over-dimensioned electrical connectors is a fail-proof setup, you will not have to worry about the connectors being overloaded when running on a high ampere. For the lift fuel pump you have two electrical connectors and for the high-pressure fuel pumps you have a total of three connectors, letting you run a dual fuel pump setup in two steps or simultaneous if preferred. The fuel line connects to the included barb fittings, but we recommend adding one of the fuel pump mounting kits for your selected fuel pumps to get all the benefits of easy maintenance, fail-proof functionality, and long-run durability even when running alcoholic fuels such as ethanol.

 Low profile fuel filler cap or remote fill neck for 50mm fuel fill hose?
The high-profile CFC Unit is delivered with a low-profile filler cap with integrated roll-over protection. But for those who prefer a remote fill, we offer a remote filler neck for a 50-52 mm fuel fill hose. It fits straight into the CFC Unit and uses integrated roll-over protection mounted on the underside of the CFC Unit. The remote filler neck is available as an accessory.
Remote filler neck for 50mm fuel hose

 Choose the right Fuel Level Sender Unit for your aftermarket fuel cell
For most applications, an accurate fuel level sender is required to get an optimal experience. The Nuke Performance CFC Unit fits the most common fuel level senders that utilize the 5-bolt SAE pattern. The CFC Unit is delivered with a low profile and lightweight, block-off plate that easily can be swapped for a fuel level sender of choice. You can get your CFC Unit delivered with an FLS, make sure to select the right length when placing an order. For easy selection, measure the depth of your fuel cell and subtract approx 20mm (0.78") and select the fuel level sender that comes closest to your measurement

 Made in Sweden with high demands from worldwide motorsports
Co-developed with worldwide motorsports teams, it has become a common sight in motorsports such as time-attack, drifting, and GT racing. Saving weight is often equally important as chasing horsepower, and for several of our customers, they have been able to perform weight savings of more than 10kg by upgrading to our compact and lightweight solution. The Nuke Performance CFC Unit - Competition Fuel Cell Unit, with integrated fuel surge tank, is a perfect fit for aftermarket fuel cells and is designed, developed, and manufactured in Sweden with the highest possible quality, with the same hallmark as the other parts in the lightweight Nuke Performance motorsports range.

There is no substitute for the quality of Nuke Performance.

 No modification needed before installation
The new high-profile version of the Nuke Performance CFC Unit requires no modifications to an ATL or Fuelsafe fuel cell before installation.

 Nuke Performance CFC Unit for ATL fuel cells specifications
For more information about CFC Unit specifications

 High-profile CFC Unit for ATL fuel cells includes:
1 x Nuke Performance CFC Unit - high profile version (for ATL fuel cells)
5 x 6mm (M6) electrical connection points
2 x 1/4" BSPP to Male barb 8 mm hose fittings
1 x 1/4" BSPP plug, when using only one high-pressure fuel pump
1 x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels)
1 x Low profile filler cap (remote fill neck available as accessory)
1 x Dual billet fuel pump bracket and adjustable pickup pump mount
1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
1 x FLS spacer, used for fuel level senders with a not symmetrical bolt pattern
