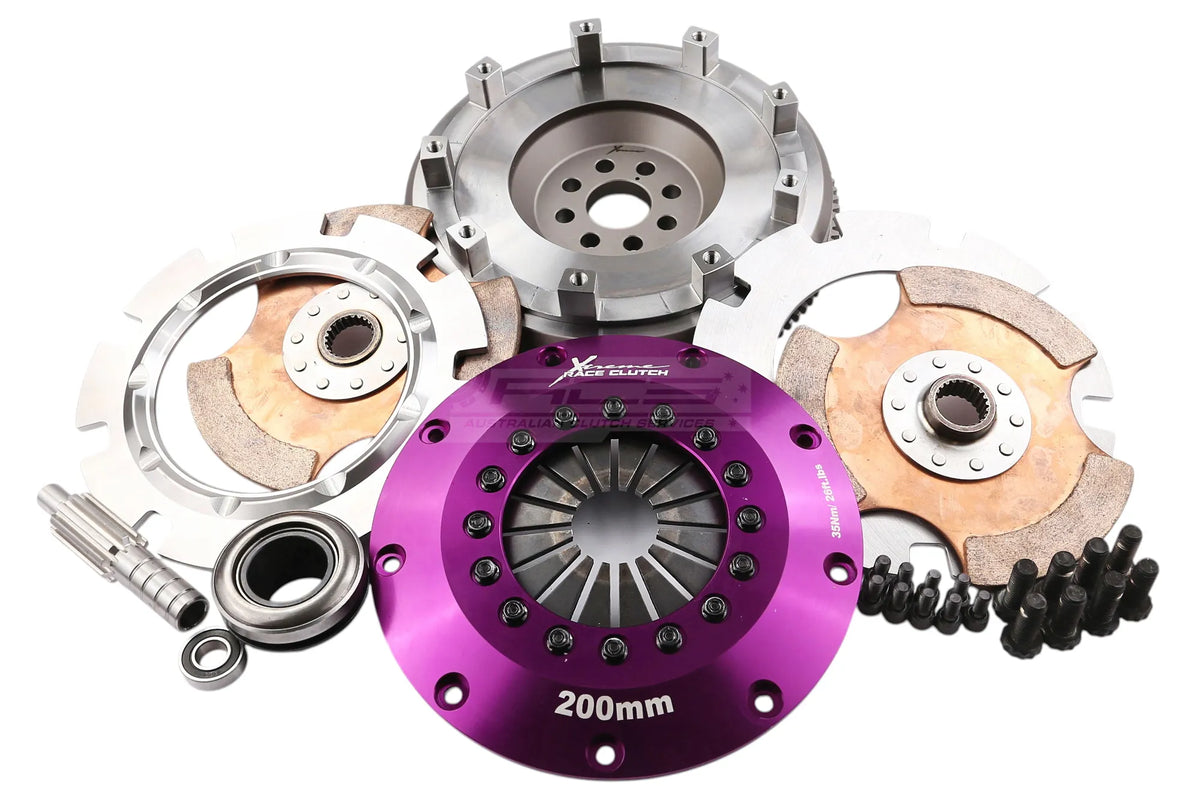

BMW 3-Series / 5-Series / Z3 E30/E36/E46/E34 Xtreme Performance 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
- Regular price
- €1,400.60
- Sale price
- €1,400.60
- Regular price
-
Expect prompt delivery and easy tracking
Tracking Number sent via E-mail
Dispatch 1-3 days for item in stock
Special order or items out of stock delivery may vary
About the Product
Ships from our supplier's EU warehouse – typical delivery about 1 week.
Part number: KBM20530-2E
- Clutch Disc Diameter (mm): 200
- Clutch Disc Spline Count: 10
- Clutch Disc Spline Diameter (mm): 29
- Flywheel Step (mm): +2.2
- Torque (Nm): 1200
- Stage: 5
- Usage: Motorsport
- Design: 200mm Twin Plate Solid Ceramic – engineered for high-power track vehicles. Provides exceptional torque and heat resistance with direct, competition-style engagement.
- Tech Bulletins: TSB-269
- TSB-PEDAL
- Kit Includes: Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool
- Flywheel: Single Mass Flywheel
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design


| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Vehicle fitment
| Make | Model | Variant | Years | Engine |
|---|---|---|---|---|
| BMW | 3-Series | E30 | 318 is | 1989.09-1991.08 | M42 B18 (184S1) 1796 Petrol 100 kW 136 BHP (1989.09 - 1991.08) |
| BMW | 3-Series | E36 | 318 ti | 1996.01-1999.08 | M44 B19 (194S1) 1895 Petrol 103 kW 140 BHP (1996.01 - 1999.08) |
| BMW | 3-Series | E36 | 318 ti | 1994.09-1995.12 | M42 B18 (184S1) 1796 Petrol 103 kW 140 BHP (1994.09 - 1995.12) |
| BMW | 3-Series | E36 | 318 is | 1995.09-1999.04 | M44 B19 (194S1) 1895 Petrol 103 kW 140 BHP (1995.09 - 1999.04) |
| BMW | 3-Series | E36 | 318 is | 1992.01-1995.12 | M42 B18 (184S1) 1796 Petrol 103 kW 140 BHP (1992.01 - 1995.12) |
| BMW | 3-Series | E46 | 320i | 1998.03-2000.09 | M52 B20 (206S4) 1990 Petrol 110 kW 150 BHP (1998.03 - 2000.09) |
| BMW | 3-Series | E46 | 320Ci | 1999.02-2001.08 | M52 B20 (206S4) 1990 Petrol 110 kW 150 BHP (1999.02 - 2001.08) |
| BMW | 3-Series | E46 | 320i | 2000.09-2005.02 | M54 B22 (226S1) 2171 Petrol 120 kW 163 BHP (2000.09 - 2005.02) |
| BMW | 3-Series | E46 | 323i | 1998.03-2000.09 | M52 B25 (256S4) 2494 Petrol 120 kW 163 BHP (1998.03 - 2000.09) |
| BMW | 3-Series | E46 | 320Ci | 2000.01-2006.05 | M54 B22 (226S1) 2171 Petrol 120 kW 163 BHP (2000.01 - 2006.05) |
| BMW | 3-Series | E46 | 323Ci | 1999.04-2000.09 | M52 B25 (256S4) 2494 Petrol 120 kW 163 BHP (1999.04 - 2000.09) |
| BMW | 3-Series | E36 | 323 ti | 1997.09-2000.08 | M52 B25 (256S3) 2494 Petrol 125 kW 170 BHP (1997.09 - 2000.08) |
| BMW | 3-Series | E46 | 320i | 2000.09-2005.02 | M54 B22 (226S1) 2171 Petrol 125 kW 170 BHP (2000.09 - 2005.02) |
| BMW | 3-Series | E46 | 323i | 1998.03-2000.09 | M52 B25 (256S4) 2494 Petrol 125 kW 170 BHP (1998.03 - 2000.09) |
| BMW | 3-Series | E46 | 320Ci | 2000.01-2007.12 | M54 B22 (226S1) 2171 Petrol 125 kW 170 BHP (2000.01 - 2006.05) |
| BMW | 3-Series | E46 | 323Ci | 1999.04-2000.09 | M52 B25 (256S4) 2494 Petrol 125 kW 170 BHP (1999.04 - 2000.09) |
| BMW | 3-Series | E46 | 325 ti | 2001.04-2004.12 | M54 B25 (256S5) 2494 Petrol 141 kW 192 BHP (2001.04 - 2004.12) |
| BMW | 3-Series | E36 | 325i | 1990.09-1995.12 | M50 B25 (256S1), M50 B25 (256S2) 2494 Petrol 141 kW 192 BHP (1990.09 - 1995.12) |
| BMW | 3-Series | E46 | 325i | 2000.09-2005.02 | M54 B25 (256S5) 2494 Petrol 141 kW 192 BHP (2000.09 - 2005.02) |
| BMW | 3-Series | E46 | 325Ci | 2000.09-2006.08 | M54 B25 (256S5) 2494 Petrol 141 kW 192 BHP (2000.09 - 2006.08) |
| BMW | 3-Series | E36 | 328i | 1995.01-1999.04 | M52 B28 (286S1) 2793 Petrol 142 kW 193 BHP (1995.01 - 1999.04) |
| BMW | 3-Series | E46 | 328i | 1998.02-2000.06 | M52 B28 (286S2) 2793 Petrol 142 kW 193 BHP (1998.02 - 2000.06) |
| BMW | 3-Series | E46 | 328Ci | 1998.12-2000.05 | M52 B28 (286S2) 2793 Petrol 142 kW 193 BHP (1998.12 - 2000.05) |
| BMW | 3-Series | E36 | M3 3.0 | 1992.11-1995.07 | S50 B30 (306S1) 2990 Petrol 210 kW 286 BHP (1992.11 - 1995.07) |
| BMW | 3-Series | E36 | M3 3.0 | 1993.09-1995.05 | S50 B30 (306S1) 2990 Petrol 217 kW 295 BHP (1993.09 - 1995.05) |
| BMW | 3-Series | E36 | M3 3.2 | 1995.10-1999.09 | S50 B32 (326S1) 3201 Petrol 236 kW 321 BHP (1995.10 - 1999.09) |
| BMW | 5-Series | E34 | 518i | 1989.09-1994.04 | M40 B18 (184E1) 1796 Petrol 83 kW 113 BHP (1989.09 - 1994.04) |
| BMW | 5-Series | E34 | 518i | 1994.05-1996.07 | M43 B18 (184E2) 1796 Petrol 85 kW 115 BHP (1994.05 - 1996.07) |
| BMW | 5-Series | E28 | 525 e | 1981.09-1987.12 | M20 B27 (276KA), M20 B27 (276KB) 2693 Petrol 90 kW 122 BHP (1981.09 - 1987.12) |
| BMW | 5-Series | E28 | 525 e | 1983.03-1987.12 | M20 B27 (276EA) 2693 Petrol 92 kW 125 BHP (1983.03 - 1987.12) |
| BMW | 5-Series | E28 | 525 e | 1985.09-1987.12 | M20 B27 (276EB, M20 B27 (276KB) 2693 Petrol 95 kW 129 BHP (1985.09 - 1987.12) |
| BMW | 5-Series | E39 | 520i | 1997.03-2001.08 | M52 B20 (206S3), M52 B20 (206S4) 1990 Petrol 100 kW 136 BHP (1997.03 - 2001.08) |
| BMW | 5-Series | E39 | 520i | 1996.01-2003.06 | M52 B20 (206S3), M52 B20 (206S4) 1990 Petrol 110 kW 150 BHP (1996.01 - 2003.06) |
| BMW | 5-Series | E34 | 525i | 1988.02-1990.08 | M20 B25 (256K1) 2494 Petrol 125 kW 170 BHP (1988.02 - 1990.08) |
| BMW | 5-Series | E39 | 520i | 2000.09-2003.06 | M54 B22 (226S1) 2171 Petrol 125 kW 170 BHP (2000.09 - 2003.06) |
| BMW | 5-Series | E34 | 525i | 1990.03-1996.07 | M50 B25 (256S1), M50 B25 (256S2) 2494 Petrol 141 kW 192 BHP (1990.03 - 1996.07) |
| BMW | 5-Series | E34 | 525ix | 1992.01-1996.03 | M50 B25 (256S1), M50 B25 (256S2) 2494 Petrol 141 kW 192 BHP (1992.01 - 1996.03) |
| BMW | Z3 | E36 | 1.9 | 1995.11-1999.03 | M44 B19 (194S1) 1895 Petrol 103 kW 140 BHP (1995.11 - 1999.03) |
| BMW | Z3 | E36 | M3 | 1997.01-2000.06 | S50 B32 (326S1) 3201 Petrol 236 kW 321 BHP (1997.01 - 2000.06) |
| BMW | Z3 | E36 | M3 | 1998.02-2001.06 | S50 B32 (326S1), S50 B32 (326S3) 3201 Petrol 236 kW 321 BHP (1998.02 - 2001.06) |
Suits vehicles manufactured until 08/2003. Suits vehicles manufactured from 03/1999. Suits vehicles manufactured until 09/1997. Suits vehicles manufactured until 01/2003.
