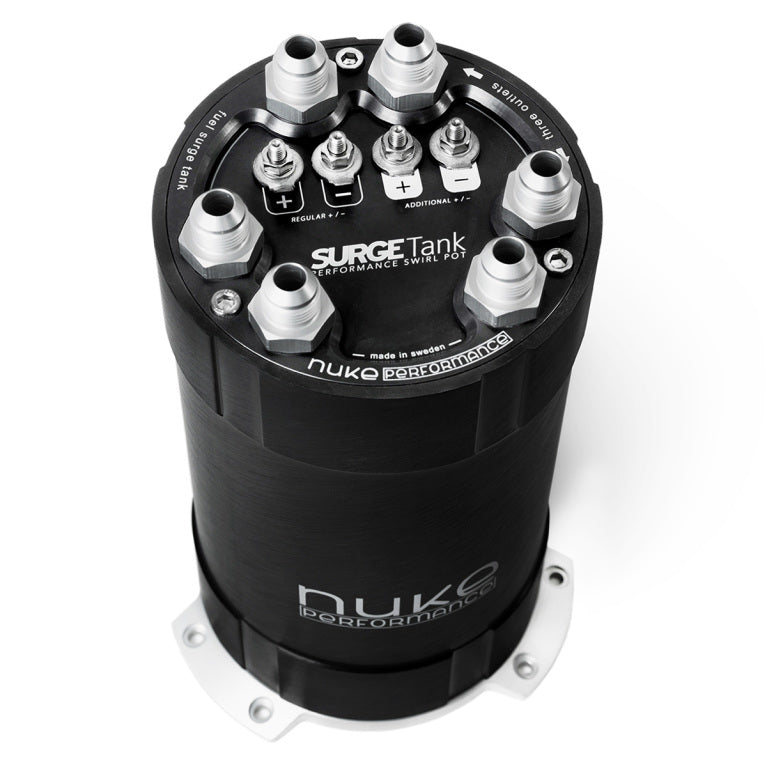

2nd generation Nuke Performance 3.0 liter Fuel Surge Tank is market leading with top quality combined with outstanding performance.
This new version is able to handle three internal fuel pumps with its three 3/4 AN-8 outlet fittings.
New setup with individual fuel pump connection, run one to three fuel pumps in two steps, either 1+2 or 2+1 with the dual setup of electrical connectors on the top lid.
Designed and manufactured to handle extreme amounts of power with the same hallmark as all of Nuke Performance products. Everything is included for running either one, two or three fuel pumps.

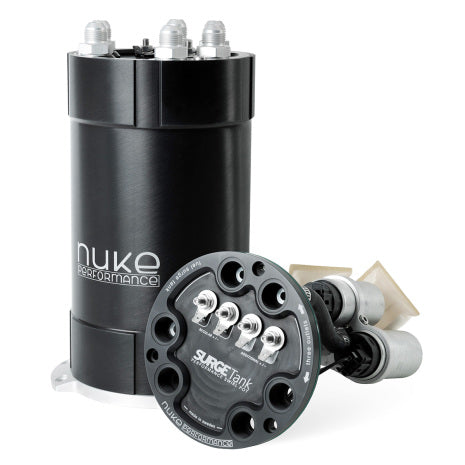

Run one to three internal fuel pumps with the same universal surge tank / swirl pot. Fuel pumps are mounted with the billet internal mounting bracket.
Fits internal fuel pumps with 39mm diameter:
- AEM 340L
- Deatschwerks 200
- Deatschwerks 301
- Ti Automotive (Walbro) GSS 341
- Ti Automotive (Walbro) 450
With our Fuel Surge Tank, you minimize the risk when running at a low fuel level, that the system does not cope with the extremely hard driving such as drifting, drag racing and track days where you can exceed 2g, which could result in fuel loss.
The Fuel Surge Tank works as a buffer so the fuel pumps are always supplied with fuel for high outputs.
Our Fuel Surge Tank is available in several different setups, each one designed to perform to the maximum, either with internal fuel pumps or external fuel pumps.
It comes with a billet mounting bracket with our six bolt pattern making it sit stable in any installation.
Delivered with billet aluminum mounting bracket for easy mounting and 3/4 AN8 fittings for all the top cover connections. 3/4 AN6 - AN10 is optional and are sold separately.
Designed to stand up to the destructive properties of alcohol fuels, including methanol and ethanol.
