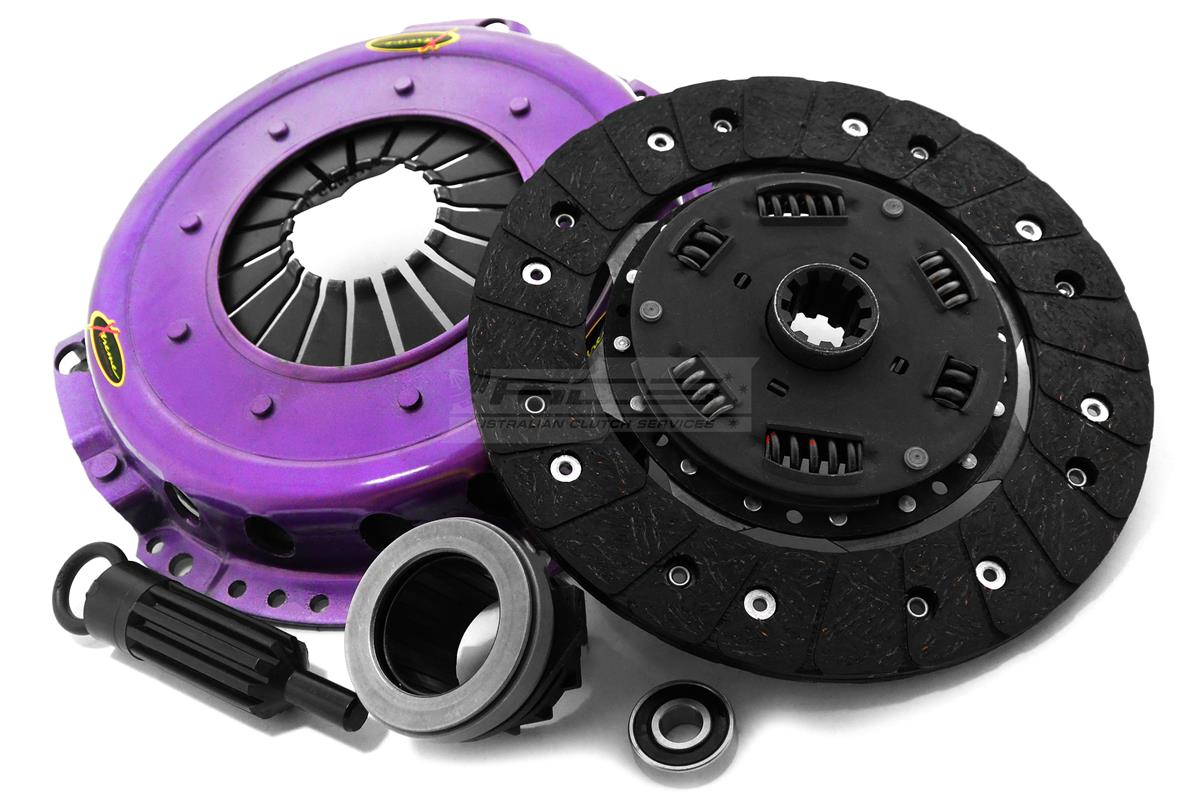

Xtreme Clutch kit - BMW I6 E30/E28/E24 Stage 1 Organic (Popular with M50/52/54 with E30 Flywheel)

Description

Please note: This item is special order, and may not be on the shelf at Group D. Delivery times are usually one week, but can vary depending on stock levels. Please contact us for a definite lead time.

Xtreme Performance - sprung organic kit /-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

Torque capacity 320Nm

Clamp load Increased over standard
Organic Friction Discs
Heavy Duty Pressure Plate
Kit contains everything you need for a successful installation + accessories

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)

228
Clutch Disc Spline Count

10
Clutch Disc Spline Diameter (mm)

29
Torque (Nm)

320
Flywheel Step

+.25mm/.010""
Design

Single Plate
Stage

Stage 1
Tech Bulletins
Clamp Load
Recommended for

Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional information
Weight [KG]:

6.98

Make	Model	Year	Variant	Engine
BMW	3-Series	1982-1991	E30 \| 320i	1990cc \| 92KW \| 125HP \| M20 B20 (206EB) (1982-1991)
BMW	3-Series	1983-1988	E30 \| 325E 2.7	2693cc \| 90KW \| 122HP \| M20 B27 (276KA);M20 B27 (276KB) (1983-1988)
BMW	3-Series	1983-1989	E30 \| 325i	2494cc \| 126KW \| 171HP \| M20 B25 (256E2) (1983-1989)
BMW	3-Series	1985-1987	E30 \| 325E 2.7	2693cc \| 95KW \| 129HP \| M20 B27 (276KB) (1985-1987)
BMW	3-Series	1985-1987	E30 \| 325i	2494cc \| 126KW \| 171HP \| M20 B25 (256E2) (1985-1987)
BMW	3-Series	1986-1991	E30 \| 320i	1990cc \| 95KW \| 129HP \| M20 B20 (206KA) (1986-1991)
BMW	3-Series	1986-1991	E30 \| 325i	2494cc \| 125KW \| 170HP \| M20 B25 (256E1);M20 B25 (256E2);M20 B25 (256EX);M20 B25 (256K1) (1986-1991)
BMW	3-Series	1986-1993	E30 \| 320i	1990cc \| 95KW \| 129HP \| M20 B20 (206KA) (1986-1993)
BMW	3-Series	1987-1993	E30 \| 325i	2494cc \| 125KW \| 170HP \| M20 B25 (256E2);M20 B25 (256EX);M20 B25 (256K1) (1987-1993)
BMW	3-Series	1987-1993	E30 \| 325i	2494cc \| 125KW \| 170HP \| M20 B25 (256K1) (1987-1993)
BMW	3-Series	1988-1991	E30 \| 320i	1991cc \| 95KW \| 129HP \| M20 B20 (206KA) (1988-1991)
BMW	5-Series	1981-1987	E28 \| 520i	1990cc \| 92KW \| 125HP \| M20 B20 (206EA);M20 B20 (206EB);M20 B20 (206EC);M20 B20 (206EZ) (1981-1987)
BMW	5-Series	1987-1990	E24 \| 520i	1990cc \| 95KW \| 129HP \| M20 B20 (206KA) (1987-1990)
