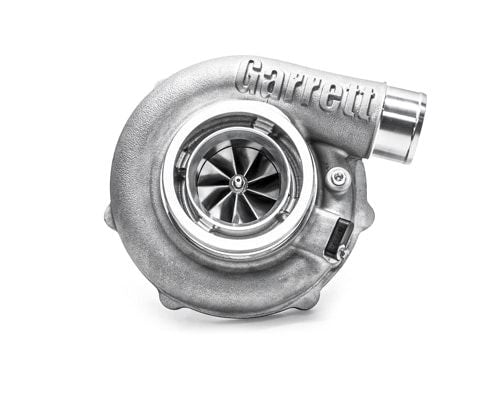

Garrett G35-900

€ 1,835.00 EUR

The new G-Series line of turbochargers features the latest Garrett Motion technology. This 100% clean sheet product has many advanced features. New Compressor aerodynamics deliver up to 900 horsepower. High flowing Mar-M turbine wheel handles up to 1050 degrees C temperatures. New 8mm ball bearing cartridge is compact in size allowing us to produce a narrower center housing.
Technical Features:

Horsepower: 550 - 900HP
Displacement: 2.5 - 5.5L
  • Garrett® G Series Compressor Aerodynamics for maximum HP.
  • Fully machined Speed Sensor and pressure ports.
  • New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
  • Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
  • Oil restrictor and water fittings included.
  • Standar rotation.
  • Compressor side: TRIM 65 A/R 0.72
  • Compressor Air Inlet: Hose 4.00" (101.60mm)
  • Compressor Air Outlet: Hose 2.00" (51.15mm)
  • Bearing housing: Water and Oil cooled system.
