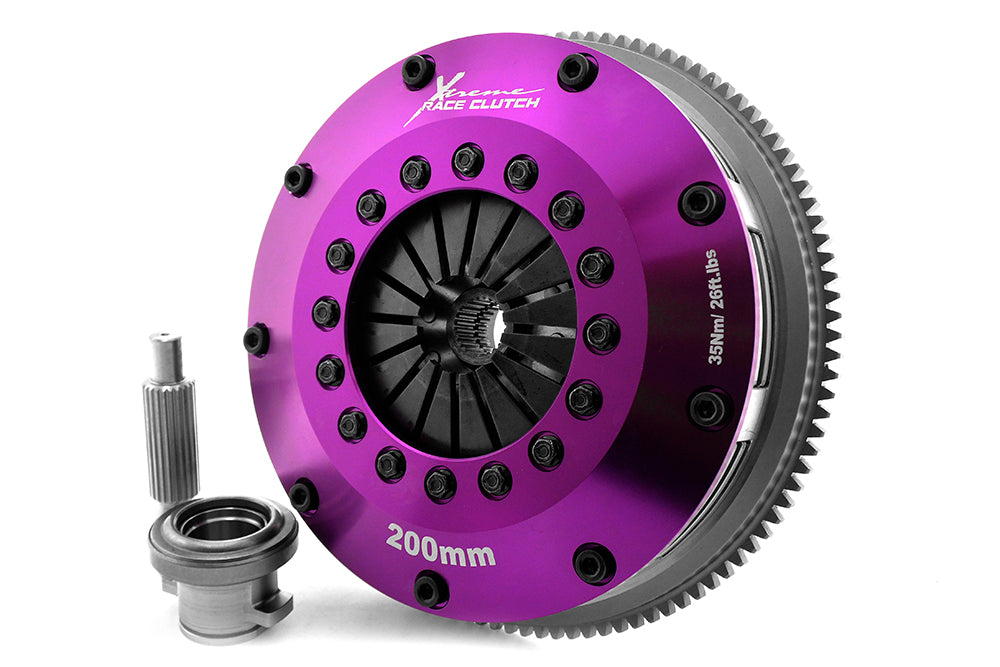

Xtreme Performance SR20DET Twin Plate Clutch Kit Incl Flywheel
Some items maybe not be carried in stock at Group-D
If stock is available in the European Warehouse delivery time will be around one week
If there is no European stock delivery time may vary
If you are concerned about delivery please contact us prior to order
Xtreme Motorsport 200mm twin plate KNI20521-2E
Rebuild kits are available.
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.
The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
-
Clutch Disc Diameter (mm)200
-
Clutch Disc Spline Count24
-
Clutch Disc Spline Diameter (mm)25.5
-
Torque (Nm)1200
-
Flywheel Step+2.2mm
-
DesignTwin Plate
-
StageMultiplate - track use only
-
Weight [KG]:12.8
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
|
Make
|
Model
|
Year
|
Variant
|
Engine
|
Note
|
Details
|
|---|---|---|---|---|---|---|
| NISSAN | 180SX coupe (S13) | 1991.04-1994.03 | 2.0 Turbo | SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03) | ||
| NISSAN | 180SX coupe (S13) | 1992.01-1997.01 | 2.0 | SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01) | ||
| NISSAN | 200SX coupe (S14) | 1993.10-1999.12 | 2.0 i 16V Turbo | SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12) | ||
| NISSAN | 200SX coupe (S14) | 1994.04-1999.09 | 2.0 Turbo | SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09) | ||
| NISSAN | SILVIA coupe (S13) | 1991.01-1993.09 | 2.0 | SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09) | ||
| NISSAN | SILVIA coupe (S13) | 1991.01-1993.09 | 2.0 | SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09) |
