FULL SUSPENSION BUSH KIT EVO 7/8/9

*IMPORTANT: Please check the below variables for the following, information can be found in the pictures and description. Please allow one week for delivery of this kit.

Front and rear Anti Roll Bar bush diameters

Rear Lower Track Control Arm Inner Bush diameter 35mm or 52mm

Front wishbone, front bush diameter:

121472 - inner diameter 14mm / M14 screw
121502 - inner diameter 12mm / M12 screw

Please let us know which one you need in the notes section of your order, as these cannot be exchanged later as this is a special order kit*

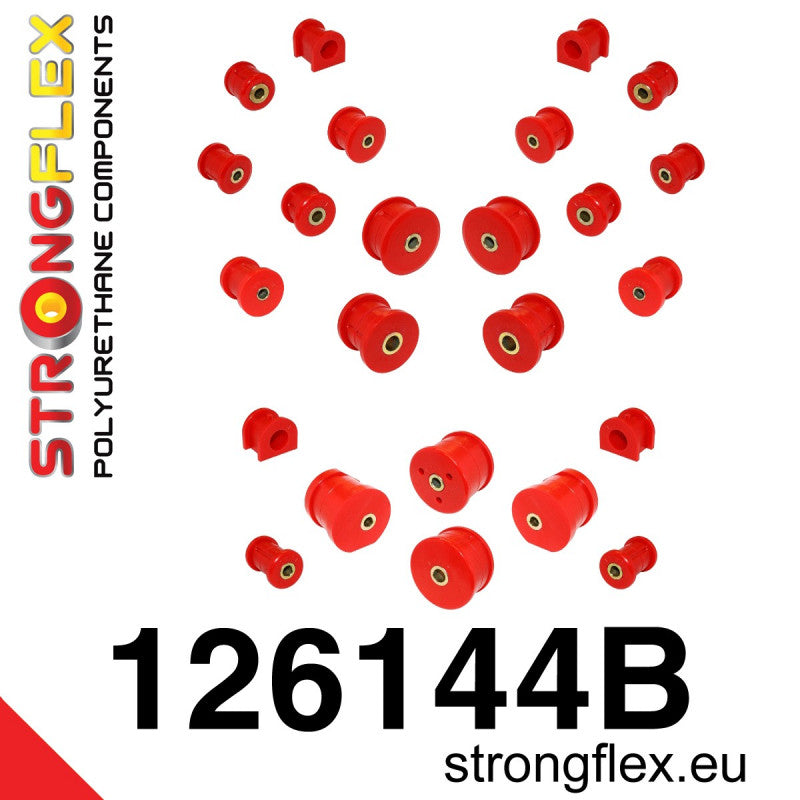

Reference: 126144B

Product name: Full suspension bush kit

Fits to:

• Mitsubishi Lancer Evolution VII / VIII / IX (01-07)

Include:

• 2x 121472B: Front wishbone front bush 14mm
  or
• 2x 121502B: Front wishbone front bush 12mm


• 2x 121514B: Front/rear anti roll bar bush
• 2x 121464B: Rear lower track control arm outer bush


• 2x 121467B: Rear lower track control arm inner bush 52mm
  or
• 2x 121511B: Rear lower track control arm inner bush 35mm


• 2x 121500B: Rear suspension front arm bush
• 2x 121501B: Rear upper arm rear bush
• 2x 121503B: Rear lower trailing arm bush


• 0/2x 121504B: Rear diff mount front bush (AYC) - We will include this as standard


• 2x 121512B: Rear anti roll bar bush
• 2x 121473B: Rear diff mount rear bush

Diagrams:

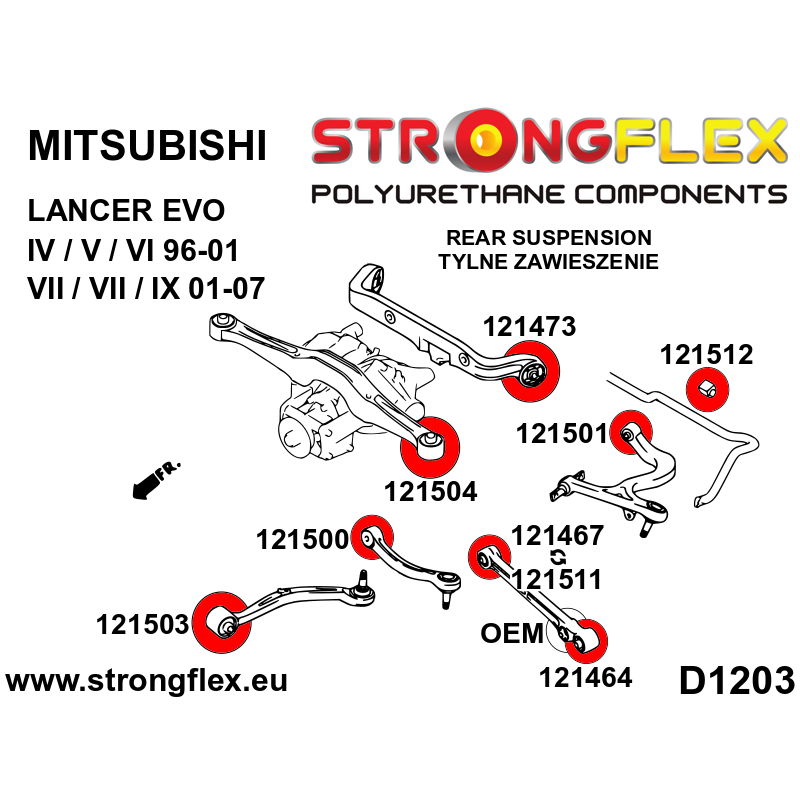

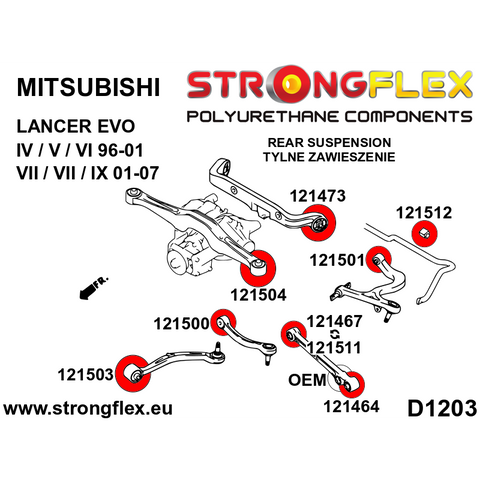

• D1203

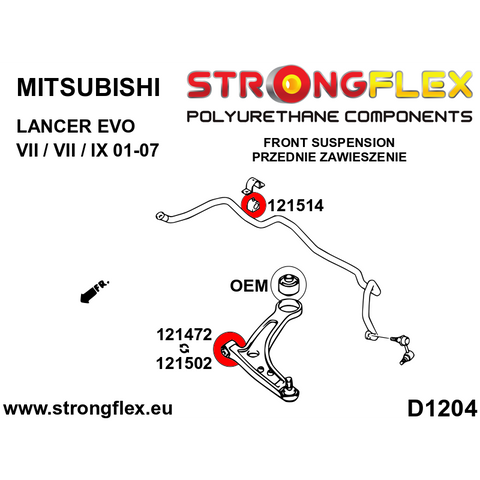

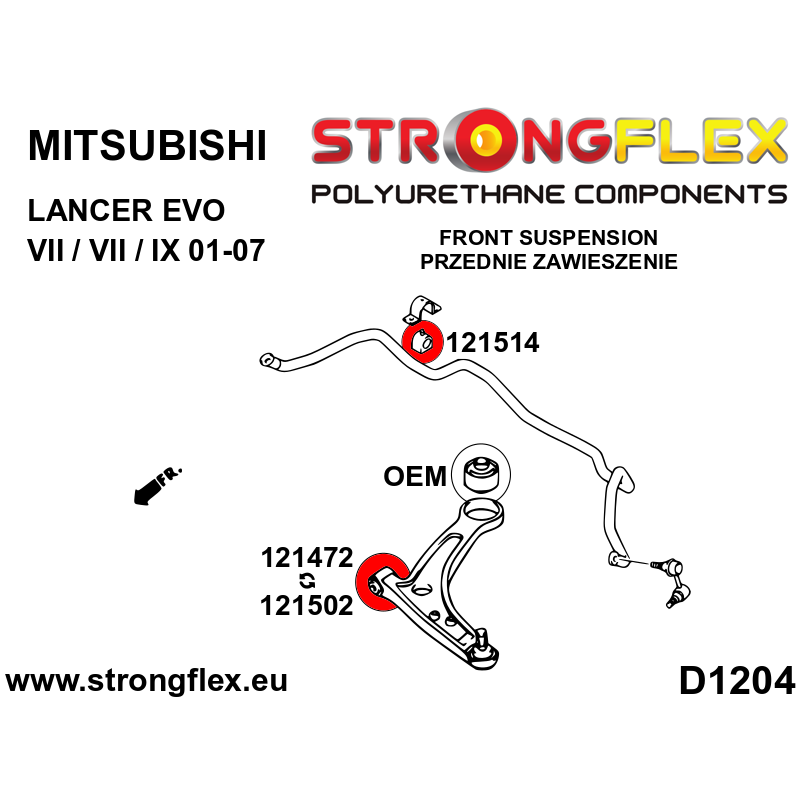

• D1204

Please check the following:

• Front wishbone bush - front:
  121472 - inner diameter 14mm / M14 screw
  121502 - inner diameter 12mm / M12 screw


• Rear lower inner control arm bushing:
  121467 - diameter 52mm
  121511 - diameter 35mm


• Bushing 121504 only fits Active Differential (AYC) Does not fit RS model.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 18/20

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
