PRODUCT FEATURES
- High-flow fan provides increased airflow
- Compact design with a housing diameter of 13" and an overall thickness of 3.90" provides sufficient clearance in the engine bay
- Universal fitment
- Many sizes available
- Mishimoto Lifetime Warranty
DESCRIPTION

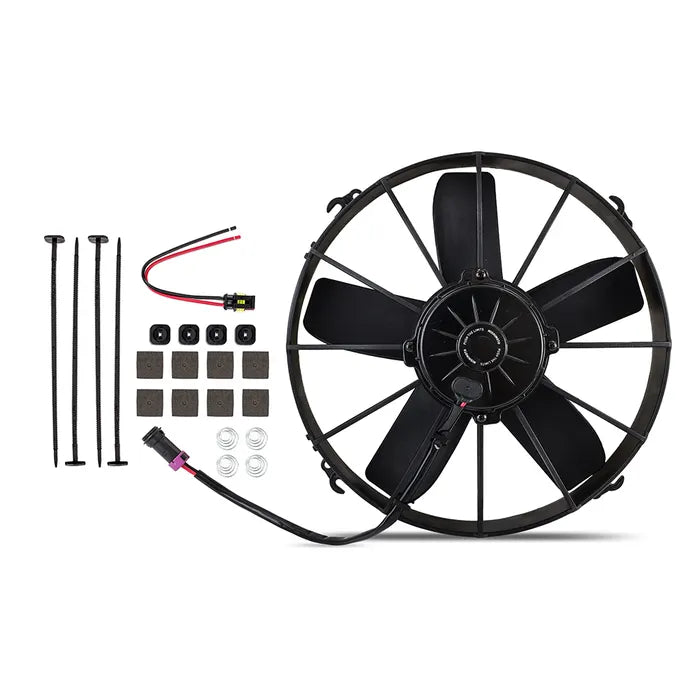

Provide your radiator with the maximum amount of airflow with our new 12" Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However, this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 1850 CFM of airflow to cool the largest and most powerful of engines! For universal installation, use the Mishimoto Electric Fan Mounting Kit.
PRODUCT SPECS
| TYPE OF ENDS | Female Snap-Plug Terminal |
| MATERIAL | Plastic |
| AIR TEMP WHILE TESTED | 72°F |
| COLOR | BK |
| NORMAL CURRENT (AMPS) | 12.8 |
| VOLTS | 12 |
| HOUSING DIAMETER | 13" |
| OVERALL THICKNESS | 3.9" |
| REVERSE | False |
| BLADE STYLE | Straight |
| # OF BLADES | 5 |
| FAN RPM | 2800 |
| FAN DIAMETER | 12" |
| CFM | 1850 |
| KIT INCLUDES | Mishimoto Fan Mishimoto Lifetime Warranty |
