Slim line fans do not come with the fan mounting kit, which can be purchased separately here
For situations which will require heavy duty cooling such as drift cars, we recommend Mishimoto's Race Line fans, which we always keep in stock.
PRODUCT FEATURES
- High-flow fan provides 1300 cfm of airflow
- Universal fitment

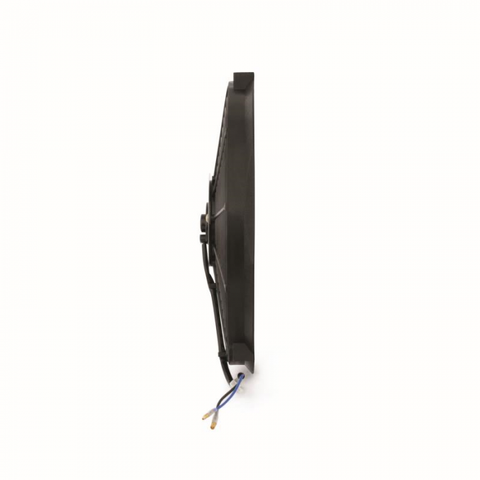

- Compact design with a diameter of 14" and an overall thickness of only 2.65" provides increased engine bay space
- Mishimoto Lifetime Warranty
DESCRIPTION
This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)
PRODUCT SPECS
| TYPE OF ENDS | Female Snap-Plug Terminal |
| MATERIAL | Plastic |
| AIR TEMP WHILE TESTED | 72°F |
| COLOR | BK |
| NORMAL CURRENT (AMPS) | 7.8 |
| VOLTS | 12 |
| HOUSING DIAMETER | 14.75 |
| BLADE DIAMETER | 326 |
| OVERALL THICKNESS | 2.5" |
| REVERSE | False |
| BLADE STYLE | Straight |
| INRUSH CURRENT (AMPS) | 15.1 |
| # OF BLADES | 10 |
| FAN RPM | 2200 |
| FAN DIAMETER | 14 |
| OVERALL DEPTH | 67.5mm |
| CFM | 1300 |
| KIT INCLUDES | Mishimoto Fan Mishimoto Lifetime Warranty |
