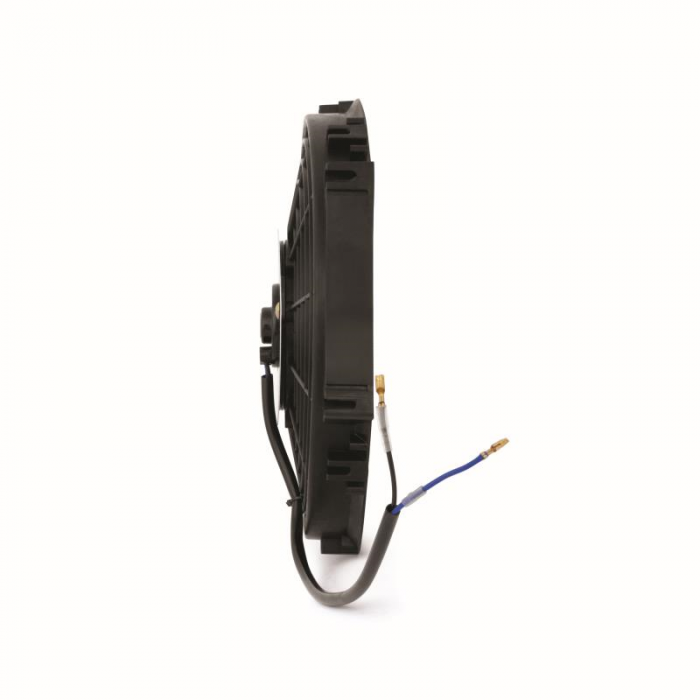

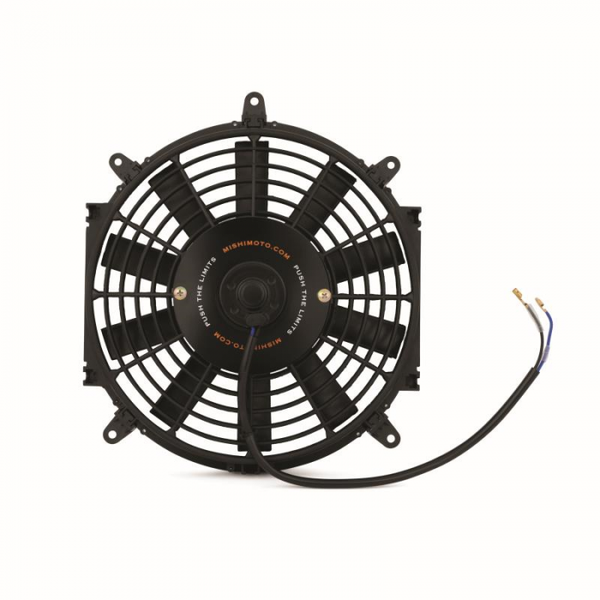

MISHIMOTO SLIM ELECTRIC FAN 12"

€ 75.00 EUR

Slim line fans do not come with the fan mounting kit, which can be purchased separately here

For situations which will require heavy duty cooling such as drift cars, we recommend Mishimoto's Race Line fans, which we always keep in stock.

PRODUCT FEATURES

  • High-flow fan provides 1150 cfm of airflow
  • Universal fitment
  • Compact design with a diameter of 12" and an overall thickness of only 2.5" provides increased engine bay space
  • Easily reversible for use as a pusher or puller fan
  • Mishimoto Lifetime Warranty

DESCRIPTION

This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)

NOTES

25 Amps Max Continuous

PRODUCT SPECS

TYPE OF ENDS Female Snap-Plug Terminal
MATERIAL Plastic
AIR TEMP WHILE TESTED 72°F
COLOR BlackBlueRed
NORMAL CURRENT (AMPS) 7.6
VOLTS 12
HOUSING DIAMETER 317.5 mm
BLADE DIAMETER 280 mm
OVERALL THICKNESS 64 mm

REVERSE True
BLADE STYLE Straight
INRUSH CURRENT (AMPS) 12.7
# OF BLADES 10
FAN RPM 2000
FAN DIAMETER 12
OVERALL DEPTH 63.5 mm
CFM 1150
KIT INCLUDES Mishimoto Fan
Mishimoto Lifetime Warranty
