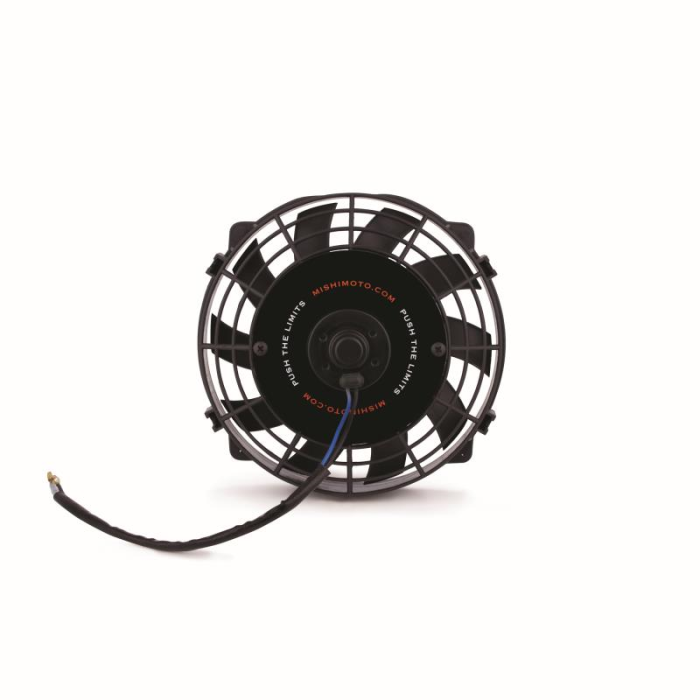

MISHIMOTO SLIM ELECTRIC FAN 8" PULL OR PUSH
PRODUCT FEATURES
Please Note: To optimize airflow as a pusher, reverse polarity and physically flip the fan blades. While reversing polarity alone can provide some push, flipping the blades maximizes performance.
Commonly used on oil coolers
High-flow fan provides 600 cfm of airflow
Universal fitment
Compact design with a diameter of 203mm and an overall thickness of only 80mm provides increased engine bay space
Mishimoto Lifetime Warranty
DESCRIPTION
This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)
PRODUCT SPECS
| TYPE OF ENDS | Female Snap-Plug Terminal |
| MATERIAL | Plastic |
| COLOR | BK |
| VOLTS | 12 |
| HOUSING DIAMETER | 8.375 |
| BLADE DIAMETER | 190 |
| OVERALL THICKNESS | 80mm |
| TECH SPECS AND SIZING | Click here for fan specifications and sizing chart. |
| REVERSE | False |
| BLADE STYLE | Straight |
| INRUSH CURRENT (AMPS) | 8 |
| # OF BLADES | 10 |
| FAN RPM | 3000 |
| FAN DIAMETER | 203mm |
| OVERALL DEPTH | 80 |
| CFM | 600 |
| KIT INCLUDES | (1) Mishimoto Fan (4) Mounting Tabs Mishimoto Lifetime Warranty |
