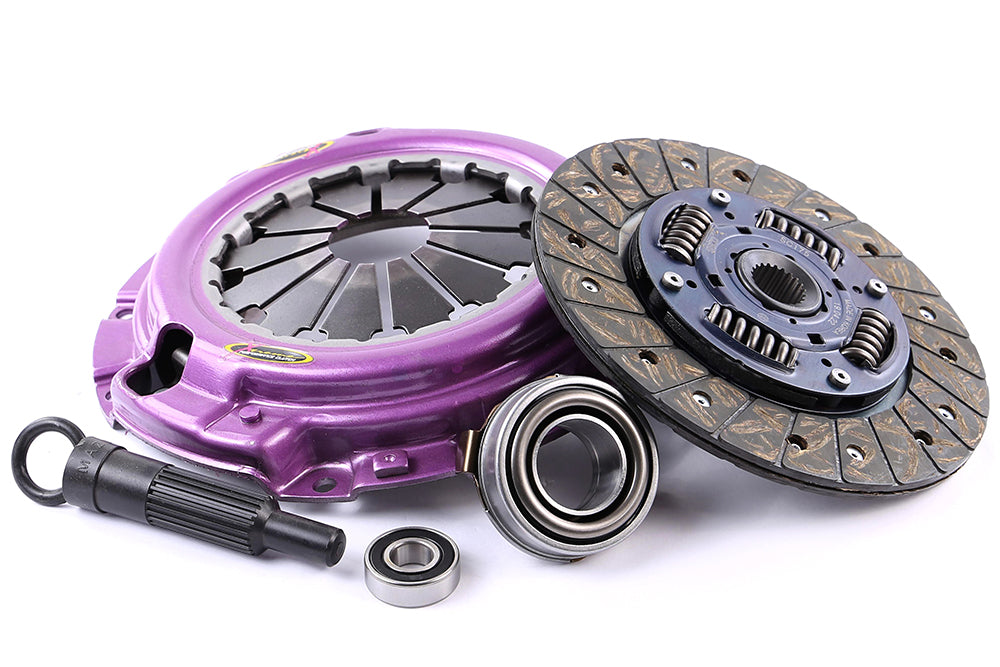

Clutch Kit - Xtreme Performance Extra Heavy Duty Organic 270Nm 700kg Mazda MX5 1.6 KMZ20002-1AX
The stage 1 clutch kit uses an upgraded pressure plate with extra increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.
These kits feature a high quality cover with increased clamping force compared with standard, between 40-120% depending on the demands of the individual vehicle.
They use an organic friction disc to retain drive-ability similar to standard.
-
Clutch Disc Diameter (mm)200
-
Clutch Disc Spline Count22
-
Clutch Disc Spline Diameter (mm)24,5
-
Recommended forStreet Performance & Towing - Stage 1
-
DesignSingle Plate
-
Clamp Load700kg
-
Torque (Nm)270
-
Weight [KG]:5.56
Applications:
|
Make
|
Model
|
Year
|
Variant
|
Engine
|
Note
|
Details
|
|---|---|---|---|---|---|---|
| MAZDA | MX-5 I (NA) | 1990.05-1994.01 | 1.6 (NA6C) | B64F 1597 Petrol 85 kW 115 BHP (1990.05 - 1994.01) | ||
| MAZDA | MX-5 II (NB) | 1998.05 - 2005.10 | 1.6 16V (NB6C) | B6MC, B6MU 1597 Petrol 81 kW 110BHP (1998.05 - 2005.10) |
