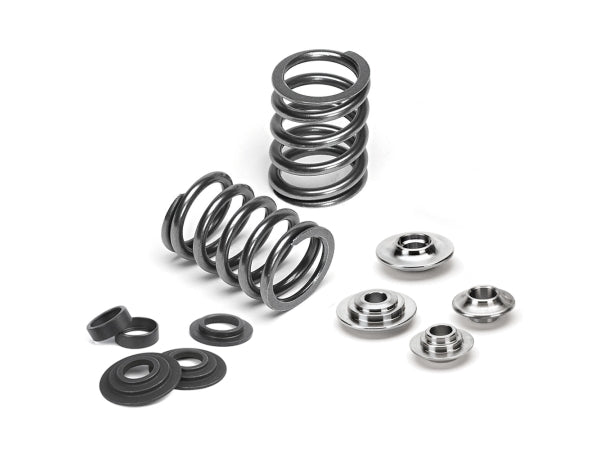

Supertech Single Valve Spring Kit Mazda 1.6L B6
Delivery may vary depending on European stock levels
If in stock at Group-D delivery will be immediate
Delivery from the European Warehouse will take an extra few days
Product specifications
| Attribute | Value |
|---|---|
| Additional Info | Single Valve Spring Kit |
| Coil Bind | 20.70 mm |
| Image Info | These images are representative |
| Inside Diameter Inner | Single |
| Inside Diameter Outer | 20.00 mm |
| Kit Spring | SPR-MM16S |
| Kit Spring Qty | 16 |
| Max Lift | 12.90 mm |
| Open Pressure | 158 @ 10 |
| Outside Diameter Inner | Single |
| Outside Diameter Outer | 27.50 mm |
| Package Height | 66,00 mm |
| Package Length | 248,00 mm |
| Package Weight | 1112.00 g |
| Package Width | 171,00 mm |
| Retainer | RET-TS60/MA2 |
| Retainer Qty | 16 |
| Seat Locator | SEAT-TS/MA18I |
| Seat Locator Qty | 16 |
| Seat Pressure | 65 @ 33.6 |
| Spring Rate | 9.4 |
Compatible models
| Make | Model | Begin year | End year |
|---|---|---|---|
| Mazda | 1.6L 16v - B6 | 1950 | 9999 |
