FULL SUSPENSION BUSH KIT IMPREZA GC,GD/FORESTER SF/LEGACY BC,BD

PLEASE NOTE: Please measure your front and rear anti roll bar diameters and include them in the notes with your order. This will ensure that we supply the correct diameter bush for your ARBs. If no diameter is specified, we will order the smallest diameter.

Front ARB bush diameters are available from 19mm to 29mm.

Rear ARB bush diameters are available from 14mm to 23mm.

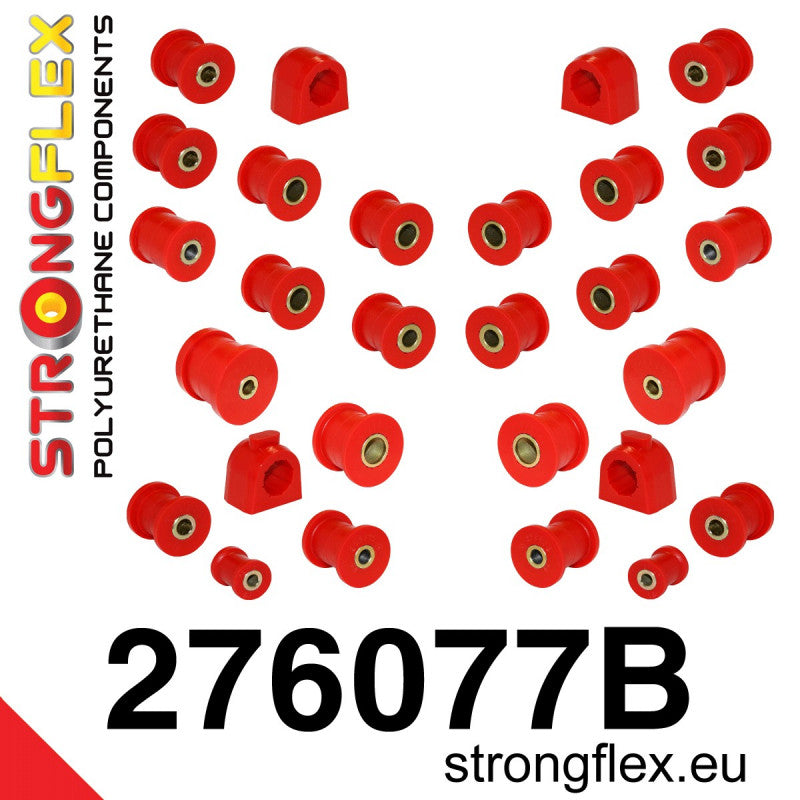

Reference: 276077B

Product name: Front and rear suspension bush kit

Fits to:

• Saab 9-2X (04-06)


• Subaru Forester I (97-02) SF
• Subaru Impreza I (92-00) GM GC GF
• Subaru Impreza II (00-07) GD GG
• Subaru Legacy I (89-94) BJ BC BF
• Subaru Legacy II / Outback I (94-99) BD BG BK

Includes:

• 2x 271143B Front Wishbone Front Bush
  (bush length 55mm - steel wishbone)
  or

• 2x 271279B Front Wishbone Front Bush
  (bush length 61mm - aluminium wishbone)


• 2x 271144B Front Wishbone Rear Bush


• 4/6x 271145B Front Anti Roll Bar Link Bush
• 0/2x 271146B Front Anti Roll Bar Bush 21mm


• 2x 271147B Front Anti Roll Bar Bush 15-29mm
  or

• 2x 271280B Front Anti Roll Bar Bush 18-25mm


• 2x 271148B Rear Anti Roll Bar Bush 13-29mm
  or
• 2x 271341B Rear Anti Roll Bar Bush


• 6x 271149B Rear Tie Bar Bush
• 2x 271150B Rear Tie Bar Bush
• 2x 271151B Rear Tie Bar To Hub Rear Bush
• 2x 271152B Rear Tie Bar To Hub Front Bush

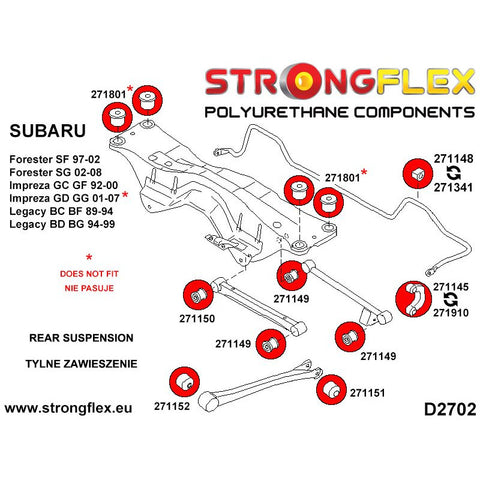

Diagrams:

• D2729
• D2730
• S2701
• S2705

Notes

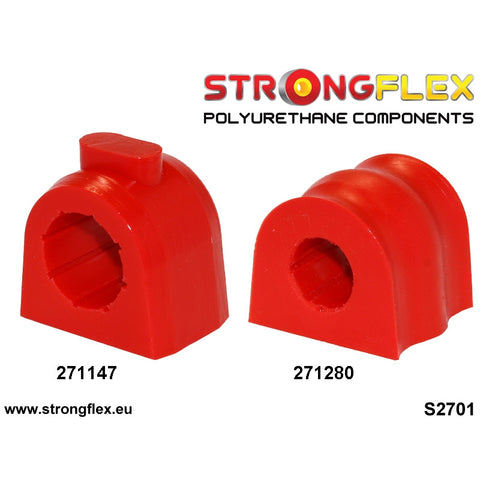

• Check your front anti roll bar bushes type before placing order. See attached photo - S2701

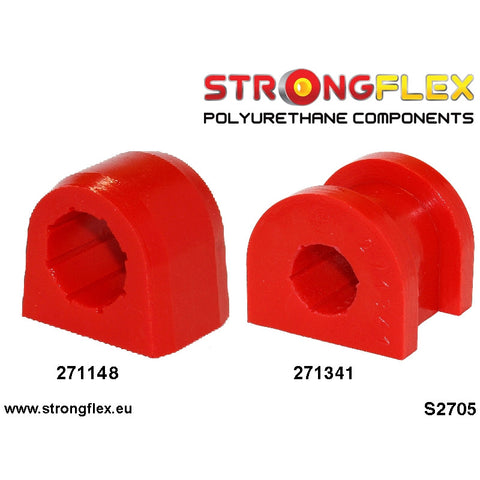

• Check your rear anti roll bar bushes type before placing order. See attached photo - S2705


• Anti roll bar link bushes 271145 and 271146 do not fit the front aluminium control arms.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 24/28

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
