KAAZ 1.5 Way LSD Supra, Aristo, Majesta, Soarer, GS300, GS430, SC430, LS400, LS430 Super Q

Description

Please note, if you have the 220mm crown wheel as found in the 5/93 to 4/96 6 speed manual with the factory LSD option, you will need the DAT3010 unit, which we do not keep in stock. In our experience, it is very rare to see this unit being needed. Please contact us prior to ordering if your Supra has the 220mm crown wheel.

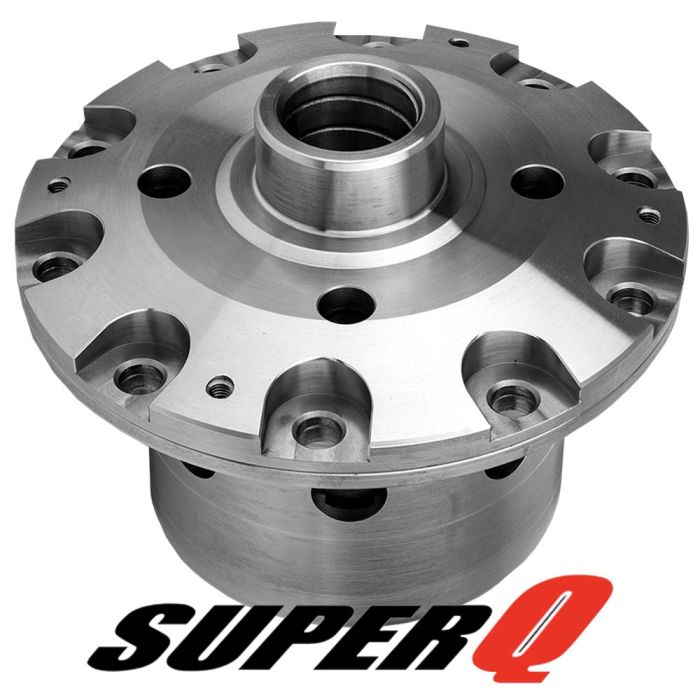

Please note, the unit pictured is a generic image and KAAZ LSD units for Toyota DO NOT come with bearings, however we do have these available separately.

KAAZ LSD's offer excellent quality, performance, and value for money.

Available in 1.5 and 2 way configurations

LSDs are available in Super-Q version, which means the plates have received a WPC treatment to ensure they are super smooth. No banging or clunking with this option!

DBT3020SQ

MODEL	ENGINE	MODEL	YR	POSITION	STD DIFF	M/T	2-WAY PN#	1.5-WAY PN#





ARISTO
UZS143	1UZ-FE	4WD	10/92 - 8/97	REAR	TORSEN	AT	DAT3020	DBT3020
JZS147	2JZ-GE		10/91 - 8/97	REAR	OPEN	AT	DAT3020	DBT3020
JZS147	2JZ-GTE		10/91 - 8/97	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
JZS160	2JZ-GE		8/97 - 4/03	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
JZS161	2JZ-GTE		8/97 - 4/03	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020




























LEXUS




SC430			02 - 03	REAR	OPEN/TORSEN	A T	DAT3020	DBT3020

GS300			93 - 02	REAR	OPEN/TORSEN		DAT3020	DBT3020

GS430			98 - 04	REAR	OPEN/TORSEN		DAT3020	DBT3020



LS430			01 - 03	REAR	OPEN/TORSEN		DAT3020	DBT3020

LS400			98 - 00	REAR	OPEN/TORSEN		DAT3020	DBT3020
MAJESTA
JZS147	2JZ-GE		1/91 - 8/95	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
JZS149	2JZ-GE		1/91 - 8/95	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
UZS141	1UZ-FE		10/92 - 8/95	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
UZS143	1UZ-FE		10/92 - 8/95	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
UZS145	1UZ-FE		10/92 - 8/95	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
UZS155			9/95 - 8/99	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
JZS155			9/95 - 8/99	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
UZS151			9/95 - 8/99	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
UZS157			9/95 - 8/99	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020











































SOARER











JZZ30	1JZ-GTE		6/91 - 8/96	REAR	OPEN/TORSEN	MT/AT	DAT3020	DBT3020
JZZ30	1JZ-GTE		8/96 - 12/00	REAR	OPEN/TORSEN	MT/AT	DAT3020	DBT3020
JZZ31	2JZ-GE		6/91 - 8/96	REAR	OPEN/TORSEN	MT/AT	DAT3020	DBT3020
JZZ31	2JZ-GE		8/96 - 12/00	REAR	OPEN/TORSEN	MT/AT	DAT3020	DBT3020
UZZ31	1UZ-FE		6/91 - 8/96	REAR	OPEN/TORSEN	MT/AT	DAT3020	DBT3020
UZZ31	1UZ-FE		8/96 - 12/00	REAR	OPEN/TORSEN	MT/AT	DAT3020	DBT3020
UZZ40	3UZ-FE		4/01 - 4/03	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020



SUPRA









JZA80	2JZ-GE		5/93 - 5/96	REAR	OPEN/TORSEN	MT/AT	DAT3020	DBT3020
JZA80	2JZ-GE		6/96 - 8/02	REAR	OPEN/TORSEN	MT/AT	DAT3020	DBT3020
JZA80	2JZ-GTE		5/93 - 5/96	REAR	OPEN/TORSEN	AT	DAT3020	DBT3020
JZA80	2JZ-GTE	RZ	6/96 - 8/02	REAR	OPEN/TORSEN	MT/AT	DAT3020	DBT3020
