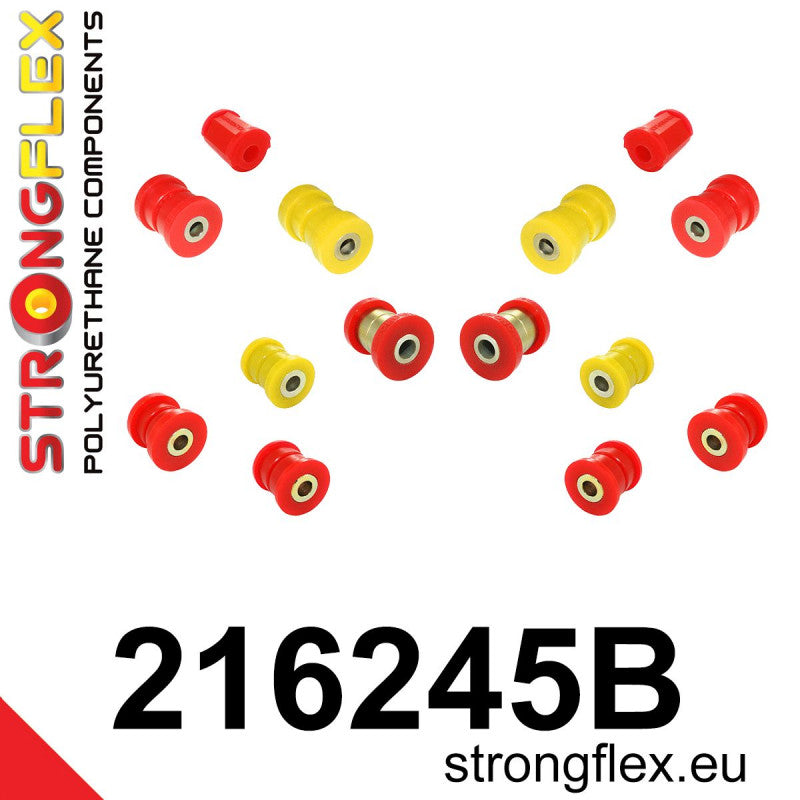

GS300/Aristo S160 / Soarer Z40 rear suspension bush kit ROAD 216245B
*Please specify rear anti roll bar bush diameter in the notes section with your order. If no diameter is specified we will order these in the smallest diameter and they can be drilled out to size by the customer*
Reference: 216245B
Product name: Rear suspension bush kit
Fits to:
- Lexus GS II (97-05) S160
- Lexus SC II (01-10) Z40
- Toyota Aristo II (97-05) S160
- Toyota Soarer IV (01-05) Z40
Include:
- 2x 211834A: Rear toe adjuster inner bush SPORT
- 2x 211835B: Rear trailing arm front bush
- 2x 211836B: Rear trailing arm rear bush
- 2x 211837B: Rear track control arm Inner bush
- 2x 211915A: Rear upper arm - front bush SPORT
-
2x 211916A: Rear upper arm – rear bush 35mm SPORT
or -
2x 212059A: Rear upper arm – rear bush 29mm SPORT
- 2x 211838B: Rear anti roll bar bush

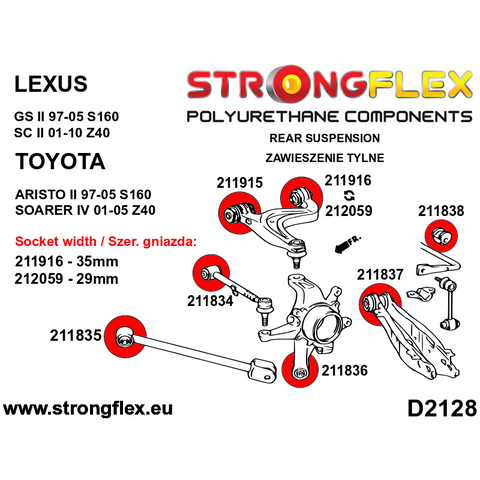

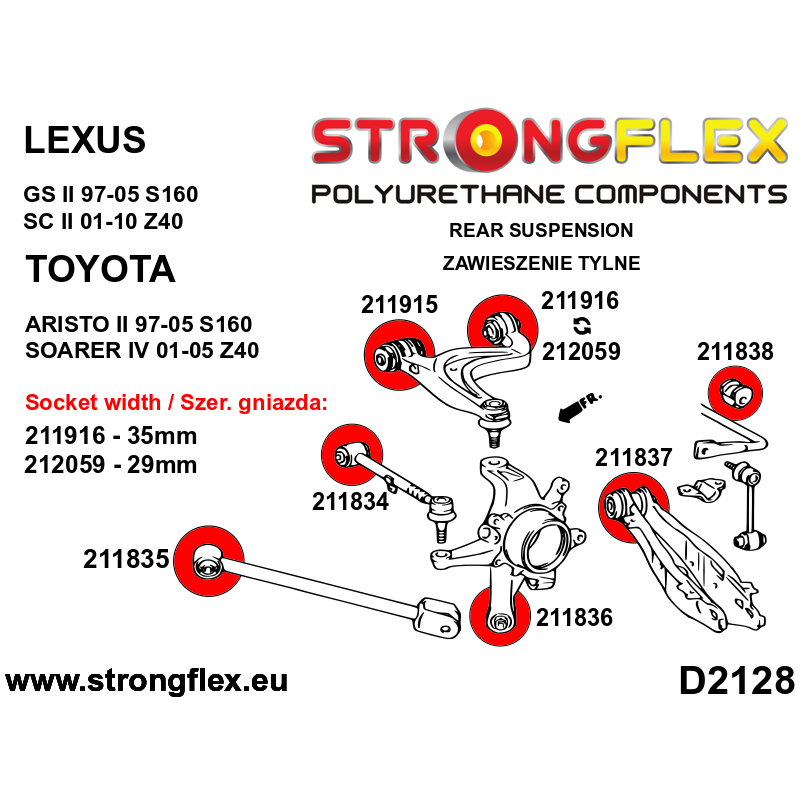

Diagrams:
- D2128
Notes:
Rear wishbone bushing type:
211916 - width of the wishbone socket 35mm
212059 - width of the wishbone socket 29mm
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 14
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
