FULL SUSPENSION BUSH KIT EVO 4/5/6

*IMPORTANT*: Please check the below variables for the following, information can be found in the pictures and description. Please allow one week for delivery of this kit.

Front and rear Anti Roll Bar bush diameters

Rear Lower Track Control Arm Inner Bush diameter: 35mm or 52mm

Front wishbone, front bush diameter:

121472 - inner diameter 14mm / M14 screw
121502 - inner diameter 12mm / M12 screw

Please let us know which one you need in the notes section of your order, as these cannot be exchanged later as this is a special order kit*

Reference: 126141B

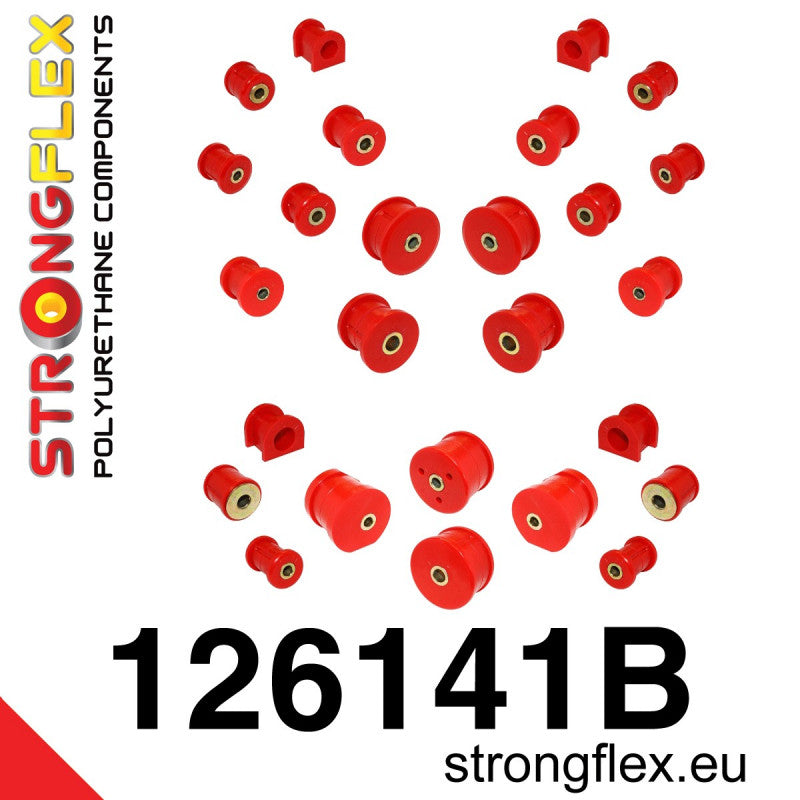

Product name: Full suspension bush kit

Fits to:

• Mitsubishi Lancer Evolution IV / V / VI (96-01)

Include:

• 2x 121472B: Front wishbone front bush 14mm
  or
• 2x 121502B: Front wishbone front bush 12mm


• 2x 121505B: Front lower arm rear bush
• 2x 121513B: Front anti roll bar bush
• 2x 121464B: Rear lower track control arm outer bush
• 2x 121500B: Rear suspension front arm bush
• 2x 121501B: Rear upper arm rear bush
• 2x 121503B: Rear lower trailng arm bush


• 2x 121504B: Rear diff mount front bush (AYC)


• 2x 121467B: Rear lower track control arm inner bush 52mm
  or
• 2x 121511B: Rear lower track control arm inner bush 35mm


• 2x 121512B: Rear anti roll bar bush
• 2x 121473B: Rear diff mount rear bush

Diagrams:

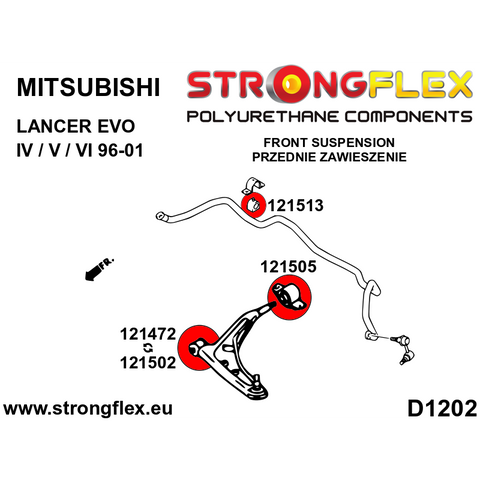

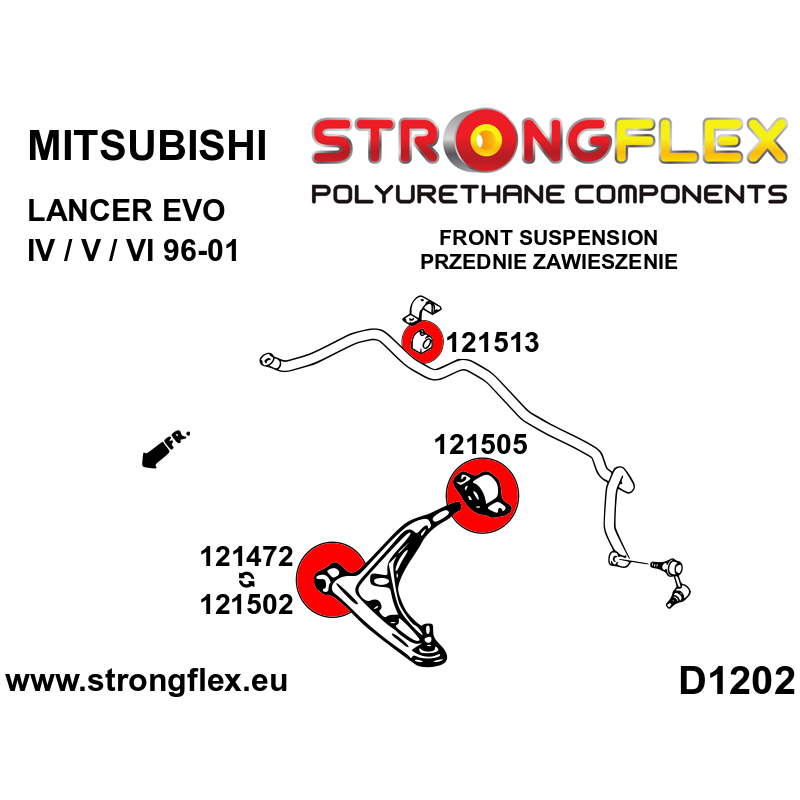

• D1202

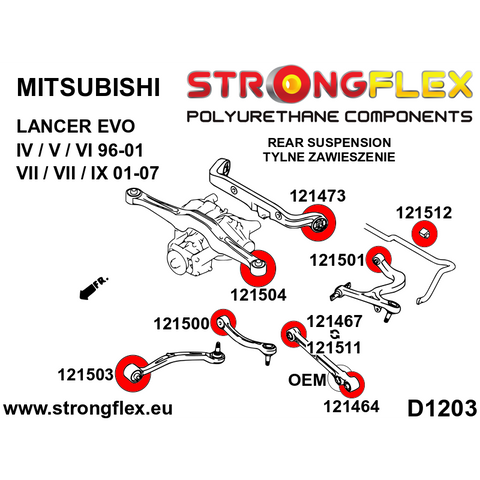

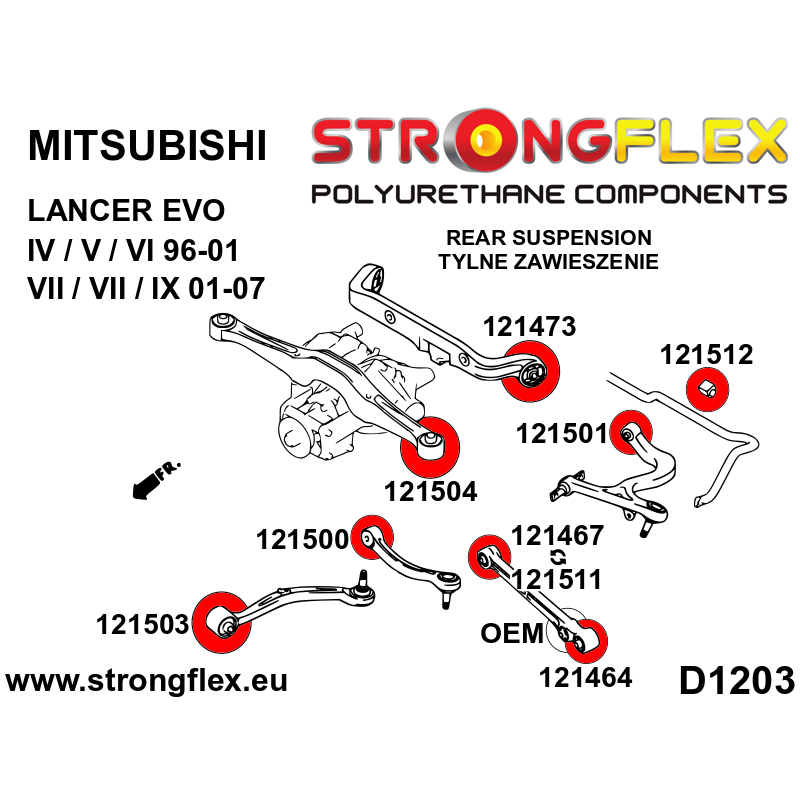

• D1203

Notes

• Front wishbone bush - front:
  121472 - inner diameter 14mm / M14 screw
  121502 - inner diameter 12mm / M12 screw


• Rear lower inner control arm bushing:
  121467 - diameter 52mm
  121511 - diameter 35mm


• Bushing 121504 only fits Active Differential (AYC) Does not fit RS model.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 20/22

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
