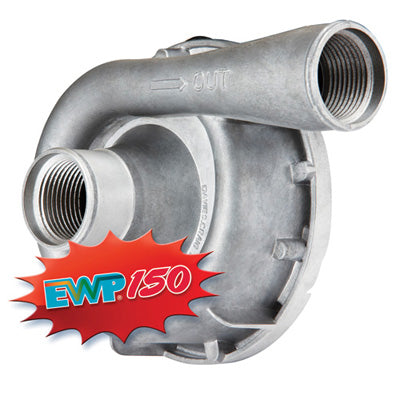

DAVIES CRAIG EWP150 HIGH CAPACITY ELECTRONIC WATER PUMP KIT
Our choice of water pump for all rear radiator drift cars!
Using expertise gained from the hugely popular EWP80 & EWP115 Electronic Water Pumps, Davies Craig EWP150 High Capacity Electronic Water Pumps are now available.
The EWP 150 is supplied in an alloy housing for ultimate durability and offers a substantial 150 Litres per minute optimum capacity.
The benefits of fitting a Davies Craig EWP over an existing mechanical pump are -
- Coolant is circulated after engine shutdown preventing hotspots
- Increased engine power and torque
- Better control of engine temperature
- Increased cooling capacity
- Improved fuel economy
- Increased engine life
- Radiator size and coolant capacity can be reduced saving weight
- Increase in maximum engine speed
Davies Craig EWP pumps can be fitted as a stand alone item, however to obtain the full benefits it is recommended that it is used with a digital controller or your programmable ECU which gives you full control over the engine running temperature.
Kit includes a selection of fittings to suit different hose sizes and installation instructions.
| • | 150 Litres Per Minute Capacity |
| • | Alloy Housing |
| • | Improves Coolant System Performance |
| • |
Negative Or Positive Earth |
| Operating voltage: | 3V DC to 15V DC |
| Polarity | Negative Or Positive Earth |
| Maximum current: | 10A |
| Flow rate: | 150 L/min (39.63 US gal/min) |
| Operating temp: | -40 to 130C |
| Pump design: | Clockwise Centrifugal |
| Pump weight: | 1170 grams (2.6lbs) |
| Pump material: | Aluminium |
| Burst pressure: | 500 kPa (72.5 psi) |
| Dimensions: | 128mm x 85mm x 188mm |
| Hose Sizes: | 38mm to 51mm |
