FRONT PAIR ONLY: BC Racing AE86 BR Series Coilover Type RA

€ 715.45 EUR

*Please note: BC Racing BR Series AE86 front coilovers must be used in conjunction with BC Roll Centre Adjusters, available here*



We provide BC Racing Coilovers for a huge range of models, if you do not see your model listed on our website please contact us to check availability.

Also available in rear pairs!

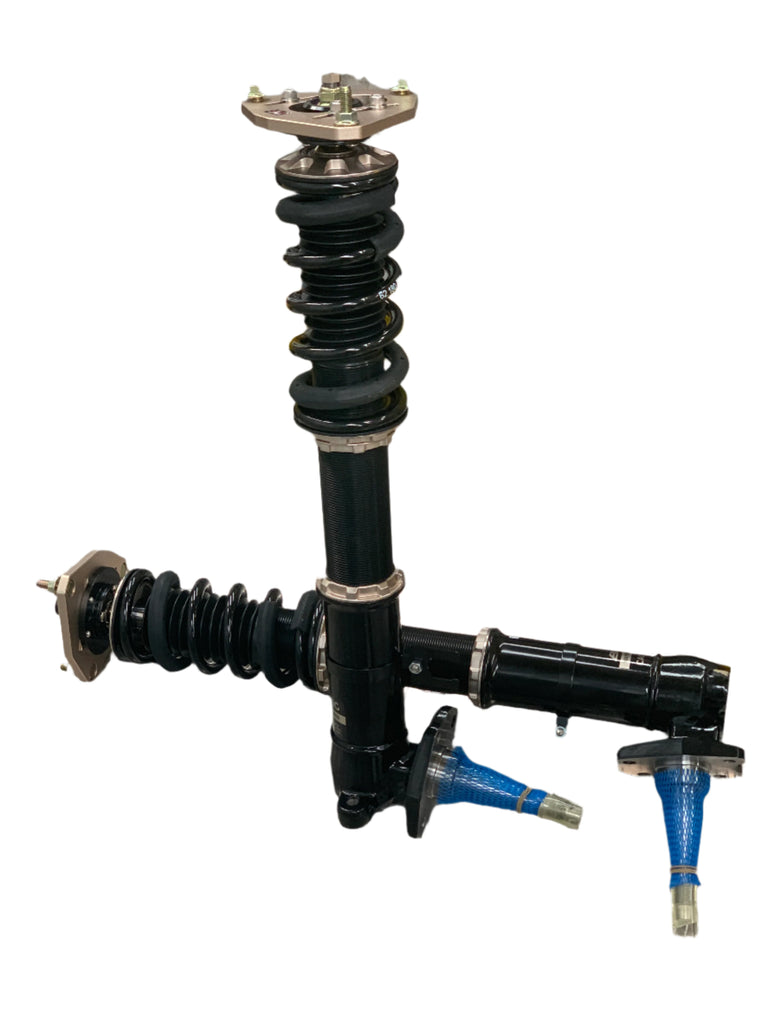

Complete front strut with spindle included!

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity. As the damper unit operates the oil contained within heats up. The viscosity of oil changes as its temperature varies which can lead to changes in the damping characteristics of the unit.

BC Racing only use a very high quality oil with their coilovers but go that extra mile to maximise performance and build their BR range with a large 53mm diameter damper body. This increases the capacity of the unit which increases the volume of oil contained which in turn reduces the peak temperature and so significantly improves damper performance.

For Street and Circuit Use
Front : Inc. Pillowball Top Mount / Camber where available
Rear : Rubber Top Mount or No Top Mount

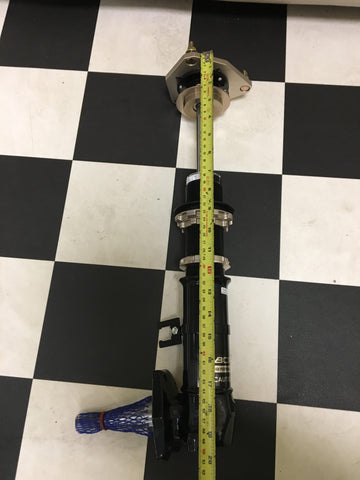

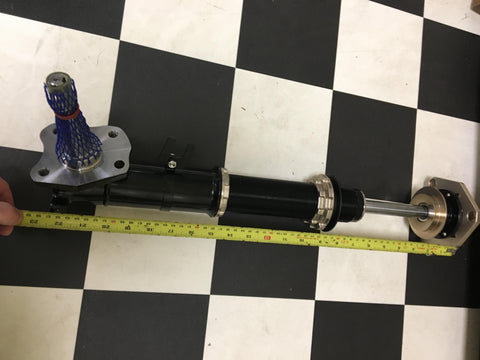

Dimensions:

Minimum Open Length 504mm

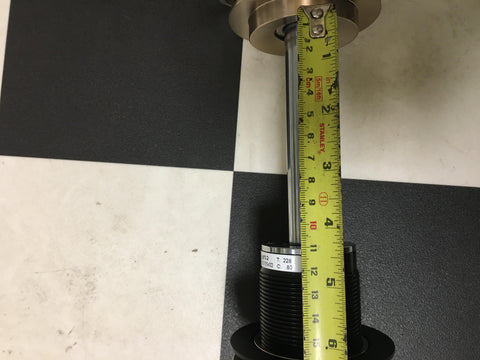

Piston Travel 110mm

Minimum Closed Length 394mm

Max Recommended Open Length 570mm

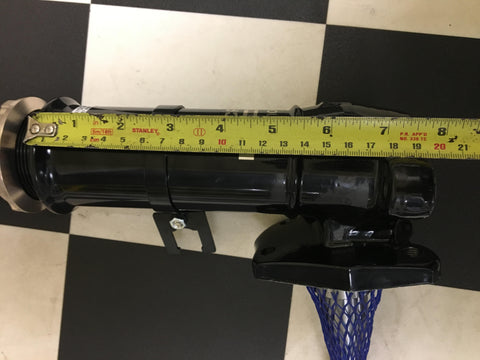

Lower Strut Body 196mm
