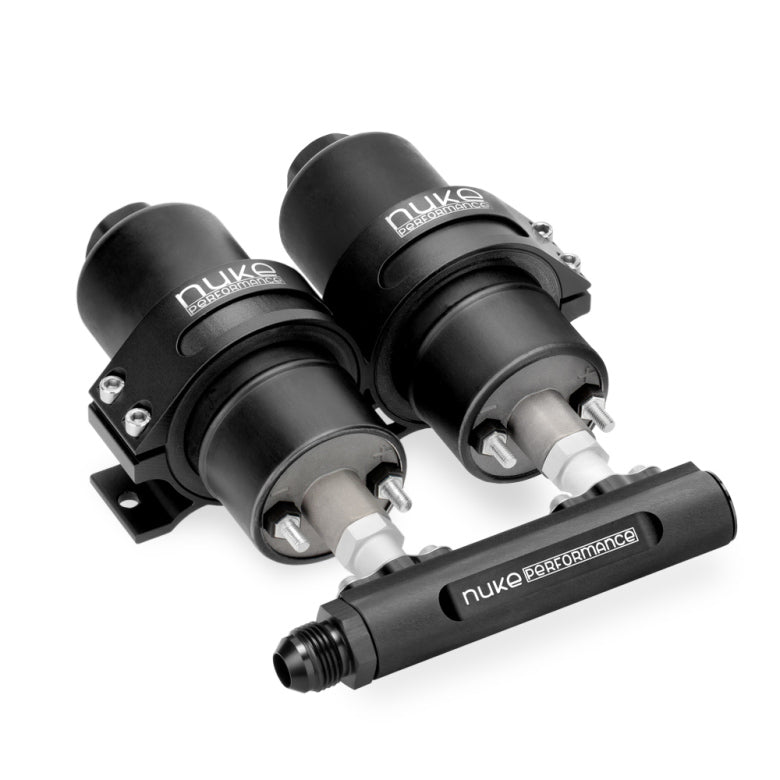

Nuke Fuel Log 4-port collector for Twin Bosch 044 Style Fuel Pumps
THIS PRODUCT IS SPECIFICALLY FOR 2X BOSCH STYLE 044 FUEL PUMPS USING A NUKE DOUBLE FUEL PUMP BRACKET AND INCLUDES 2X M12X1.5 ADAPTERS.
CHOOSE FROM AN8 OR AN6 OUTLET FITTINGS
DOES NOT INCLUDE FUEL PUMPS

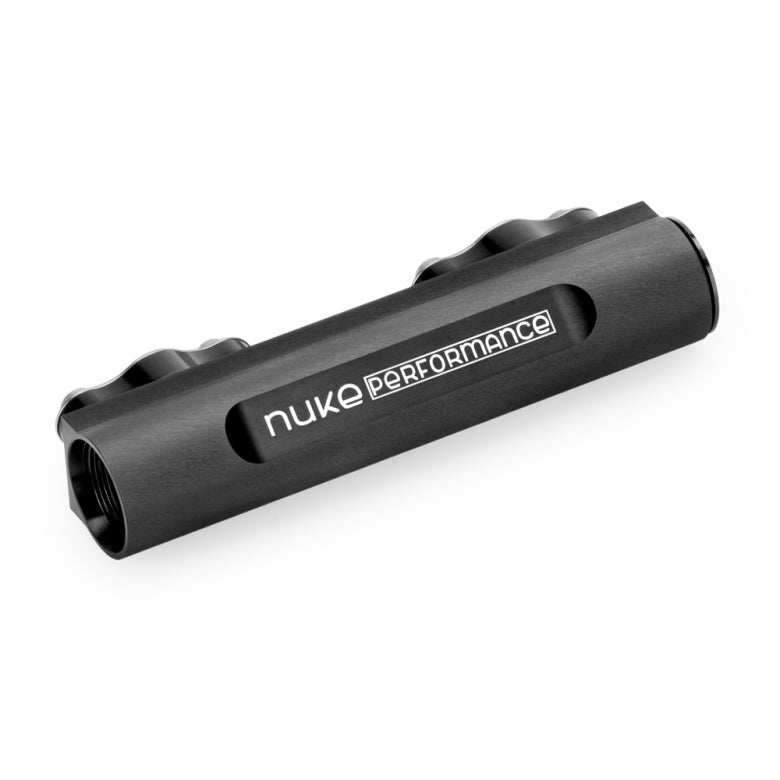

Nuke Performance second-generation Fuel Log 4-port collector, AN-8 ORB. Space-efficient manifold that allows flexibility when routing a fuel system with in-line fuel pumps or filters.
The fuel log from Nuke Performance makes it easy to combine two in-line fuel pumps into one single AN-8 ORB outlet. You can also choose a single fuel pump that routes back into an in-line fuel filter, making this a space-efficient and safe setup.
AN-8 ORB outlets on each end of the fuel log
Choose between various-sized inlet adapters
Lightweight and space-efficient design
Safe for all types of fuels, including E85
Delivered with 1x AN-8 ORB Plug
The updated new generation fuel log 4-port collector, AN-8 ORB from Nuke Performance is delivered with 1x AN-8 ORB Plug for one of the outlet ports, the open AN-8 ORB port offers a wide range of outlet options to choose from (available here). The open AN-8 port needs to be plugged if using one of the setups where you use one fuel pump in combination with one fuel filter.
Wide range of adapters for various setups such as Bosch 044, Deatschwerks DW350il, and Walbro GSL392 in-line fuel pumps.
Choose between the different inlet adapters offered in AN-6 ORB, AN-8 ORB, AN-10 ORB, M10x1.0mm, and M12x1.5mm. Choose the preferred sized fitting for both the fuel log inlet ports when placing your order.
| AN-6 ORB 1200-20-003 |
Deatschwerks DW250il AEM 400L |
| AN-8 ORB 1200-20-004 |
Deatschwerks DW350il Deatschwerks DW650il Brushless |
| AN-10 ORB 1200-20-005 | Nuke Performance in-line fuel filters |
| M10x1.0 1200-20-007 |
Bosch 200 (without check valve) Bosch 044 (with check valve) Walbro GSL 391/392/393/394/395/396 |
| M12x1.5 1200-20-006 |
Bosch 200 (with check valve) Bosch 044 (without check valve) |
Fuel log fittings are not included with the fuel log and must be purchased separately (available here). Make sure to select the right option when placing your order.
The fuel log in combination with the lightweight Nuke Performance brackets ensures a tight yet effective fuel setup.
Combined with the universal bracket from Nuke Performance that offers various inserts to house popular fuel pumps and the Nuke Performance Slim in-line filter lineup, the fuel log gives you several different setups to choose from when routing your fuel system.
